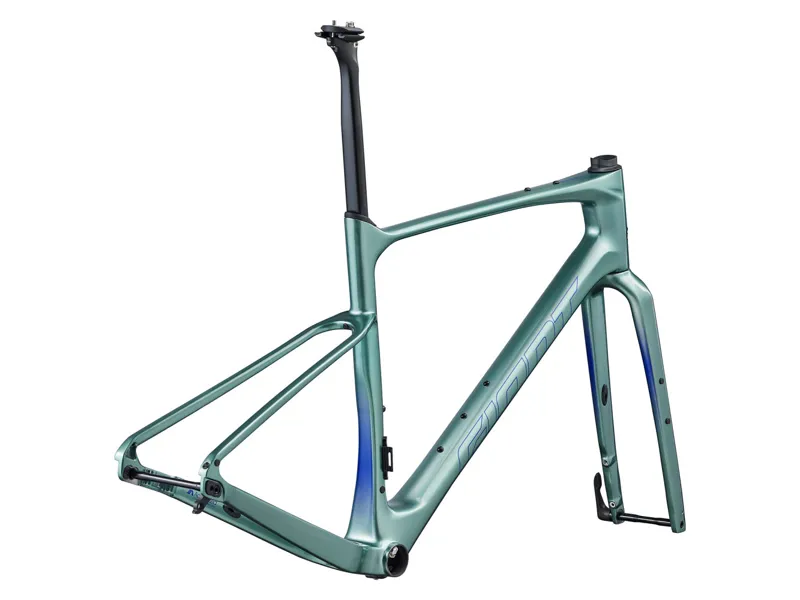

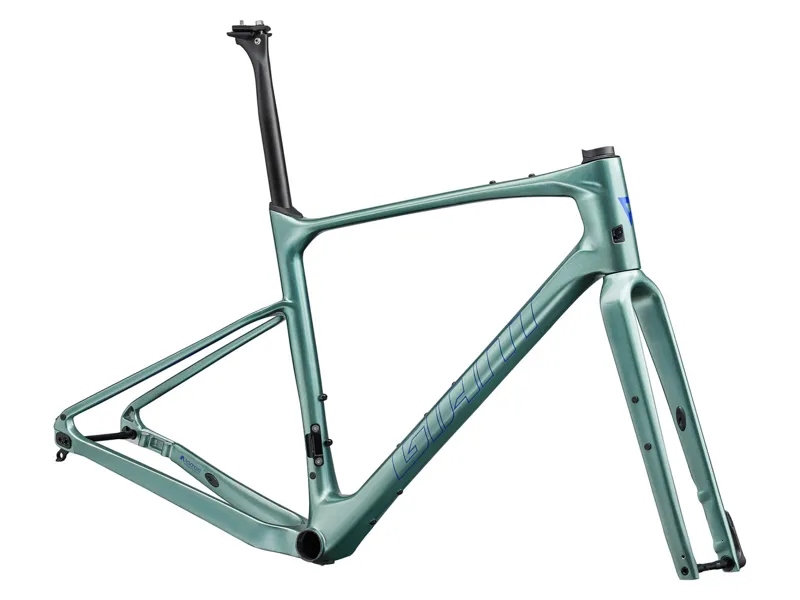

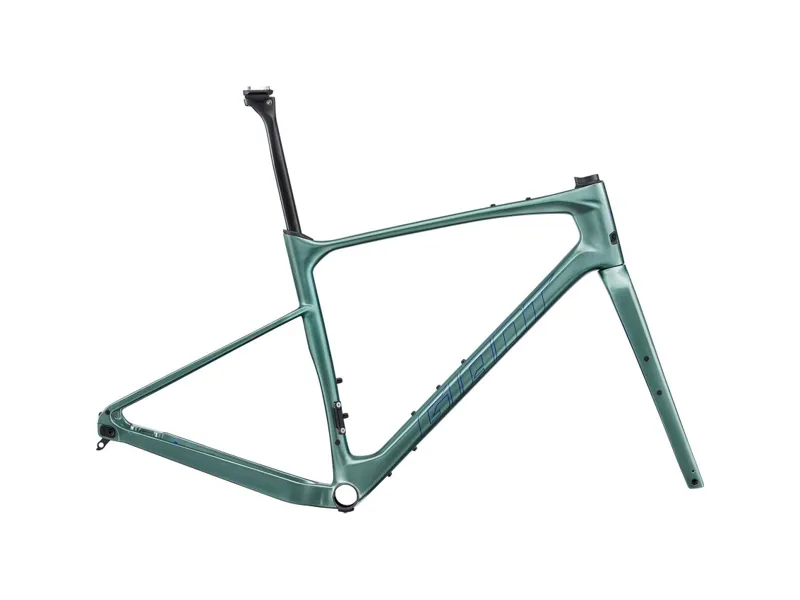

2024 Giant Revolt Advanced Pro Frameset - Misty Forest

Season:2024

Brand:Giant

Code:1909001GRYyGRN

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maxim

Technical Information
  • Frame
  • Sizes
    XS (16.9), S (17.7"), M (18.5"), M/L (19.3"), L (20.1"), XL (20.9")
  • Colours
    Gloss Misty Forest
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Seatpost
    Giant D-Fuse SL, composite, -5/+15mm offset
  • Extras
    Axles, headset, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Sizing Information
Size Guide

Frame SizeRider height (cm)Rider height (feet)
XS155 - 1665'1" - 5'5"
S159 - 1715'3" - 5'7"
M169 - 1815'7" - 5'11"
M / L174 - 1865'9" - 6'1"
L179 - 1915'10" - 6'3"
XL189 - 2006'2" - 6'7"

Frame Geometry




XSSMM / LLXL
Flip Chip PositionSHORTLONGSHORTLONGSHORTLONGSHORTLONGSHORTLONGSHORTLONG
ASeat Tube Length (mm)430450470490510530
BSeat Tube Angle74.0°73.5°73.5°73.0°73.0°73.0°
CTop Tube Length (mm)540550560575585600
DHead Tube Length (mm)125135150165180195
EHead Tube Angle70.0°71.0°71.5°72.0°72.0°72.0°
FFork Rake (mm)505050505050
GTrail (mm)788272756872656865686568
HWheel Base (mm)102410341020103010261036103110411041105110561066
IChain Stay Length (mm)425435425435425435425435425435425435
JBottom Bracket Drop (mm)808180818081808180818081
KStack (mm)556570586602616630
LReach (mm)381381387391397407
MStand Over Height (mm)724731740747757764774780791797807814
NHandlebar Width (mm)420420440440460460
OStem Length (mm)506070808090
PCrank Length (mm)170170172.5172.5175175
QWheel Size700C700C700C700C700C700C
