The superlight Giant Revolt Advanced Pro 0 delivers a smooth ride over rugged roads and is adaptable to all types of conditions.
The superlight Giant Revolt Advanced Pro 0 delivers a smooth ride over rugged roads and is adaptable to all types of conditions.
Giant

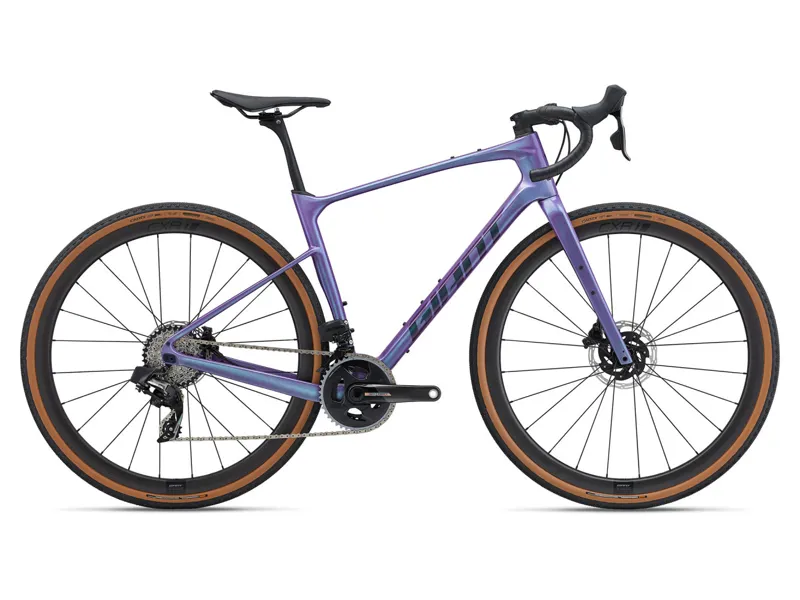

2024 Giant Revolt Advanced Pro 0 - Gravel Bike - Digital Blurple

£3,849.00 £5,499.00 30% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2024 Giant Revolt Advanced Pro 0 - Gravel Bike - Digital Blurple

Season:2024

Brand:Giant

Code:9079008DigitalBlurple

Fast gravel is fun gravel. The Giant Revolt Advanced Pro 0 is the bike of choice for Giant gravel racing pros. The superlight speedster delivers a smooth ride over rugged roads and is adaptable to all types of conditions and riding styles.

Lightweight efficiency

Advanced composite frame and Advanced SL composite fork save a combined 200g compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimise compliance without sacrificing stiffness while cornering, sprinting and cl

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum complianc

Technical Information
  • Frame
  • Sizes
    S (17.7"), M (18.5"), M/L (19.3"), L (20.1"), XL (20.9")
  • Colours
    Gloss Digital Blurple/Iris
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Drivetrain and Brakes
  • Brake System
    SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
  • Rear Derailleur
    SRAM Force eTap AXS
  • Front Derailleur
    SRAM Force eTap AXS
  • Shifters
    SRAM Force eTap AXS, 2x12
  • Bottom Bracket
    SRAM DUB, press fit
  • Crankset
    FSA Omega Adventure, 32/48 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm
  • Cassette
    SRAM Force, 12-speed, 10x36
  • Chain
    SRAM Force D1
  • Cockpit
  • Handlebar
    Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Stem
    Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Grips
    Stratus Lite 3.0
  • Headset
  • Wheels
  • Front Hub
    Giant AR alloy, CenterLock, 12mm thru-axle,
  • Rear Hub
    Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
  • Rim
    Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
  • Front Tyre
    CADEX AR, 700x40c, tubeless
  • Rear Tyre
    CADEX AR, 700x40c, tubeless
  • Finishing Kit
  • Seatpost
    Giant D-Fuse SL, composite, -5/+15mm offset
  • Saddle
    Giant Approach SL
  • Pedals
    PEDALS NOT SUPPLIED
  • Front Light
    N/A
  • Rear Light
    N/A
  • Kickstand
    N/A
  • Mudguards
    N/A
  • Carrier
    N/A
Sizing Information
Size Guide

Frame SizeRider height (cm)Rider height (feet)
S159 - 1715'3" - 5'7"
M169 - 1815'7" - 5'11"
M / L174 - 1865'9" - 6'1"
L179 - 1915'10" - 6'3"
XL189 - 2006'2" - 6'7"

Frame Geometry




SMM / LLXL
Flip Chip PositionSHORTLONGSHORTLONGSHORTLONGSHORTLONGSHORTLONG
ASeat Tube Length (mm)450470490510530
BSeat Tube Angle73.5°73.5°73.0°73.0°73.0°
CTop Tube Length (mm)550560575585600
DHead Tube Length (mm)135150165180195
EHead Tube Angle71.0°71.5°72.0°72.0°72.0°
FFork Rake (mm)5050505050
GTrail (mm)72756872656865686568
HWheel Base (mm)1020103010261036103110411041105110561066
IChain Stay Length (mm)425435425435425435425435425435
JBottom Bracket Drop (mm)80818081808180818081
KStack (mm)570586602616630
LReach (mm)381387391397407
MStand Over Height (mm)740747757764774780791797807814
NHandlebar Width (mm)420440440460460
OStem Length (mm)6070808090
PCrank Length (mm)170172.5172.5175175
QWheel Size700C700C700C700C700C
