Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.
Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.
Giant

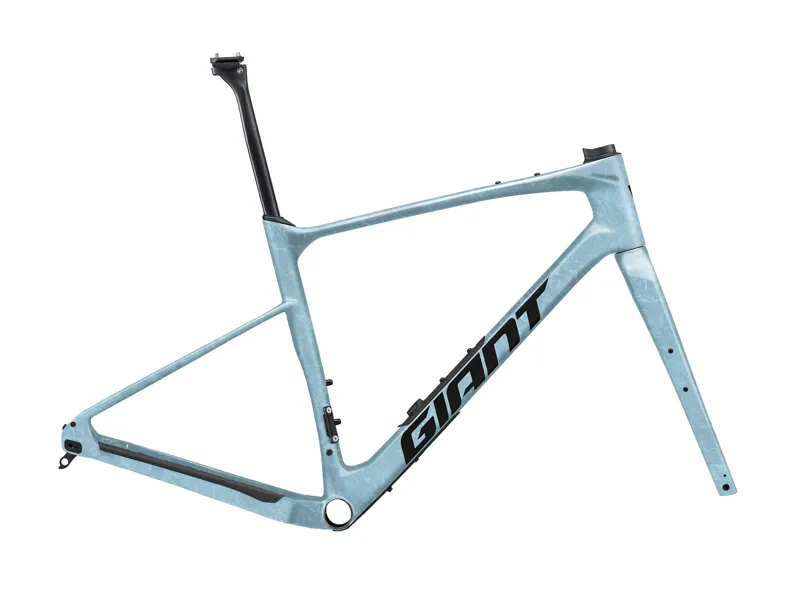

2025 Giant Revolt Advanced Pro - Carbon Gravel Frameset - Matte Slate

£1,899.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Giant Revolt Advanced Pro - Carbon Gravel Frameset - Matte Slate

Season:2025

Brand:Giant

Code:1909002

Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.

FAST AND VERSATILE

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar (available seperately) and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the down tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Technical Information
  • Frame
  • Sizes
    X-Small (430mm), Small (450mm), Medium(470mm), Medium / Large (490mm), Large(510mm), X-Large (530mm)
  • Colours
    Matte Slate
  • Frame
    Advanced-grade composite
  • Forks and Shocks
  • Fork
    Advanced SL-grade composite
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    N/A
  • Rear Derailleur
    N/A
  • Front Derailleur
    N/A
  • Shifters
    N/A
  • Bottom Bracket
    N/A
  • Crankset
    N/A
  • Cassette
    N/A
  • Chain
    N/A
  • Cockpit
  • Handlebar
    N/A
  • Stem
    N/A
  • Grips
    N/A
  • Headset
  • Wheels
  • Front Hub
    N/A
  • Rear Hub
    N/A
  • Rim
    N/A
  • Front Tyre
    N/A
  • Rear Tyre
    N/A
  • Max Tyre Clearance
    53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Finishing Kit
  • Seatpost
    Giant D-Fuse SLR
  • Saddle
    N/A
  • Pedals
    N/A
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    In-frame storage bag
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)Rider height (feet)
XS155 - 166
S159 - 171
M169 - 181
M / L174 - 186
L179 - 191
XL189 - 200

Frame Geometry


XSSMM / LLXL
ASeat Tube Length (mm)430450470490510530
BSeat Tube Angle74.0°73.5°73.5°73.0°73.0°73.0°
CTop Tube Length (mm)540550560575585600
DHead Tube Length (mm)125135150165180195
EHead Tube Angle70.0°71.0°71.5°72.0°72.0°72.0°
FFork Rake (mm)505050505050
GTrail (mm)78.072.068.065.065.065.0
HWheel Base (mm)102410201026103110411056
IChain Stay Length (mm)425425425425425425
JBottom Bracket Drop (mm)808080808080
KStack (mm)556570586602616630
LReach (mm)381381387391397407
MStand Over Height (mm)724740757774791807
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size700c700c700c700c700c700c
Professional Opinion
  • Advanced Composite Technology
    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
  • Compact Road Design
    Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping top tube (from the headtube to the seat tube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
  • Flip Chip - Dropout
    Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
  • MegaDrive
    A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
  • Powercore
    A massively oversized bottom-bracket / chain stay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chain stays provide additional stiffness on the drive side and stability on the non-drive side.
