Ruggedness and elegance don't often go hand in hand, but the Kathmandu Pro from CUBE is the exception with its ACID mudguards and lighting set mean you're all set for anything.
Ruggedness and elegance don't often go hand in hand, but the Kathmandu Pro from CUBE is the exception with its ACID mudguards and lighting set mean you're all set for anything.
Cube

2025 Cube Kathmandu Pro - Classic frame Hybrid Bike - Grey / Lunar

£999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

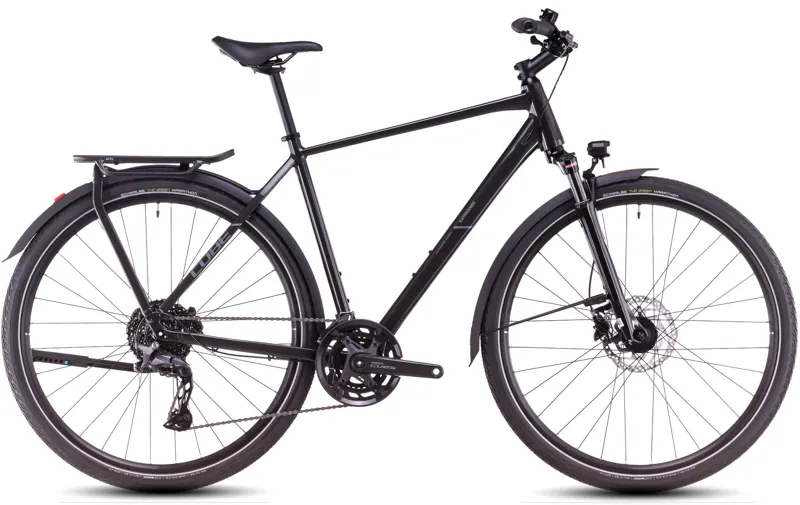

2025 Cube Kathmandu Pro - Classic frame Hybrid Bike - Grey / Lunar

Season:2025

Brand:Cube

Code:862300

Ruggedness and elegance don't often go hand in hand, but the Kathmandu Pro from CUBE is the exception that proves the rule. With its Integrated Carrier 3.0, Smooth Welding and Internal Cable Routing, it's as practical as it is great to look at. And the flat mount kickstand, ACID mudguards and lighting set mean you're all set for anything. Where to next?

CUBE design expertise is the name of the game for the Kathmandu's Trapeze frame. Its Integrated Carrier 3.0 is designed to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush.

Technical Information
  • Frame
  • Sizes
    Trapeze: 46cm, 50cm, 54cm / Classic: 46cm, 50cm, 54cm 58cm, 62cm
  • Colours
    Grey / Lunar
  • Frame
    Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
  • Forks and Shocks
  • Fork
    SR Suntour NCX D LO Air, 63mm, Lockout
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
  • Rear Derailleur
    Shimano Cues RD-U6020-SGS, 10-Speed
  • Front Derailleur
    Shimano Cues FD-U6010, Top-Swing, 31.8mm
  • Shifters
    Shimano Cues SL-U6000, Rapidfire-Plus
  • Bottom Bracket
    Shimano BB-MT501, 68mm BSA
  • Crankset
    Shimano Cues FC-U6000, Hollowtech ll, 46x30T, Chainguard
  • Cassette
    Shimano Cues CS-LG400, 11-39T
  • Chain
    KMC xGlide
  • Cockpit
  • Handlebar
    CUBE Comfort Trail Bar
  • Stem
    CUBE Performance Stem Pro, 31.8mm
  • Grips
    ACID Travel Comfort
  • Headset
    VP Integrated, Top 1 1/8", Bottom 1 1/2"
  • Wheels
  • Front Hub
    Shimano DH-3D37, Hub Dynamo, QR, Centerlock
  • Rear Hub
    Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
  • Rims
    CUBE EX25, 32H, Disc, Tubeless Ready
  • Front Tyre
    Schwalbe Marathon Green, Perf, 47-622
  • Rear Tyre
    Schwalbe Marathon Green, Perf, 47-622
  • Max Tyre Clearance
    48mm
  • Finishing Kit
  • Seatpost
    CUBE Performance Post, 27.2mm
  • Saddle
    ACID Sequence Pro 160
  • Pedals
    CUBE PP MTB
  • Extras
  • Kickstand
    ACID FM Pure Kickstand
  • Lighting
    CUBE Shiny 50 / ACID Mudguard Rear Light PRO-D, 6V, AC
  • Lock
    N/A
  • Carrier
    ACID Integrated Carrier 3.0, CUBE Adapter Compatible
  • Mudguards
    ACID 56 Integrated Carrier 3.0
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry

46cm50cm54cm58cm62cm
ASeat Tube Length (mm)460500540580620
BSeat Tube Angle73°73°73°73°73°
CTop Tube Length (mm)558569583598613
DHead Tube Length (mm)113133153173193
EHead Tube Angle70°70°70°70°70°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)10671079109411101114
IChain Stay Length (mm)455455455455455
JBottom Bracket Drop (mm)6060606060
KStack (mm)601620638657681
LReach (mm)374380388397405
MStand Over Height (mm)785817848879911
NHandlebar Width (mm)700700700700700
OStem Length (mm)9090909090
PCrank Length (mm)170170175175175
QWheel Size700c700c700c700c700c

Frame Geometry

46cm50cm54cm58cm62cm
Length seat post350350350350350
Diameter seatpost27.227.227.227.227.2
Angle stem17°17°17°17°17°
Stroke seatpost
Rear suspension travel
Professional Opinion

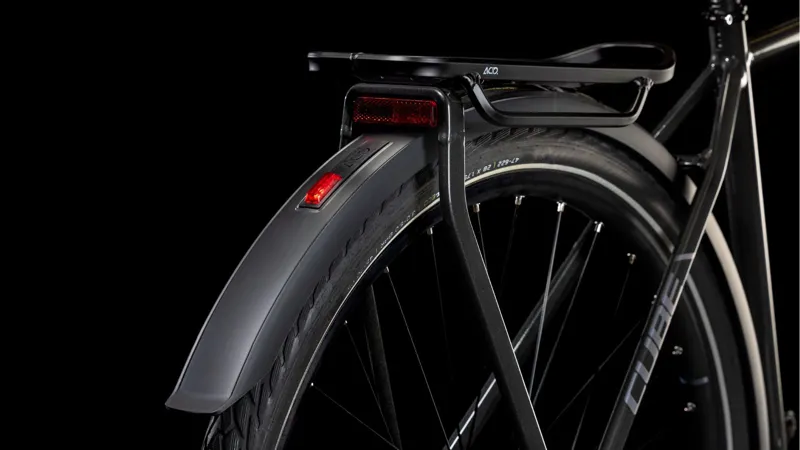

  • Integrated Carrier 3.0
    The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
  • Trekking Comfort Geometry
    Our trekking series is designed to take you wherever your curiosity leads you. So, of course, you'll want a comfortable ride. With a natural feeling seated position and handling that's stable and reassuring with or without a load, Trekking Comfort Geometry does exactly what it says no matter how much experience you have of cycling.
  • Smooth Welding
    Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.
  • Semi Internal Cable Routing
    Cables for your gears and brakes are essential, but you don't necessarily want to see them all the time. Our semi internal cable routing takes gear and brake cables through the down tube for a cleaner appearance, smoother shifts and reduced maintenance. So your CUBE bike looks good and continues to function as it should, and you just concentrate on enjoying the ride.
  • Aluminium Superlite
    CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.
