Unblock the city's streets with the Kathmandu Hybrid 45 750. With Bosch power, reliable components and a CUBE frame design that seamlessly blends comfort, style and practicality.
Unblock the city's streets with the Kathmandu Hybrid 45 750. With Bosch power, reliable components and a CUBE frame design that seamlessly blends comfort, style and practicality.
Cube

2025 Cube Kathmandu Hybrid 45 750 - Trapeze - Fully Equipped Electric Hybrid - Grey/Reflex

£4,229.10 £4,699.00 10% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
2025 Cube Kathmandu Hybrid 45 750 - Fully Equipped Electric Hybrid - Grey/Reflex
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

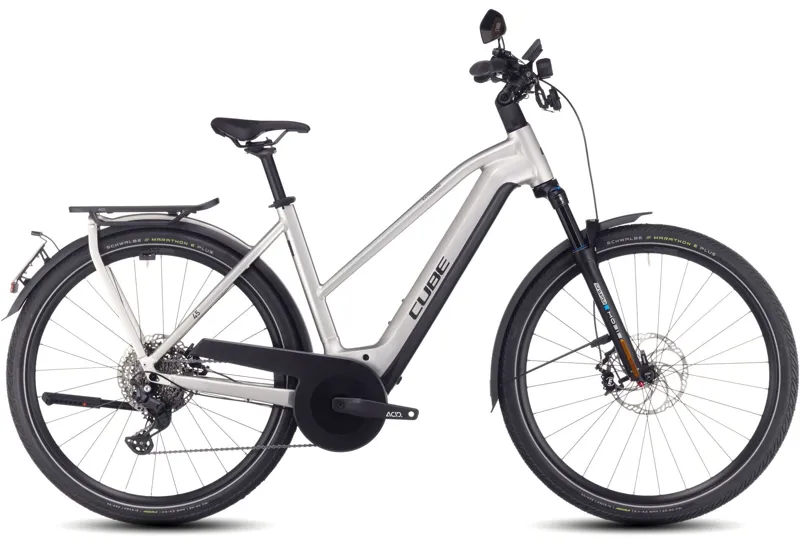

2025 Cube Kathmandu Hybrid 45 750 - Trapeze - Fully Equipped Electric Hybrid - Grey/Reflex

Season:2025

Brand:Cube

Code:731401

Unblock the city's streets with the Kathmandu Hybrid 45 750. With Bosch power, reliable components and a CUBE frame design that seamlessly blends comfort, style and practicality, it's the speed pedelec that'll reignite your passion for urban living. When two wheels are this good, who needs four?

Beneath its deceptively normal-looking exterior, the Kathmandu Hybrid 45's Trapeze frame is full of clever touches. We included a high-capacity Bosch battery inside the down tube, for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles.

And the Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you. And of course, it's all safety-tested to the highest standards in our own in-house lab, so you know you're in safe hands.

Technical Information
  • Frame
  • Sizes
    Classic: 50cm, 54cm, 58cm, 62cm / Trapeze: 50cm, 54cm
  • Colours
    Grey / Reflex
  • Frame
    Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
  • Forks and Shocks
  • Fork
    SR Suntour Mobie 35 LO-R Air, 100mm
  • Rear Shock
    N/A
  • eSystem
  • Motor
    Bosch Drive Unit - Performance Line (85nm) Smart System
  • Controller
    Bosch System Control
  • Display
    Bosch Kiox 300
  • Battery Type
    Bosch PowerTube 750
  • Battery Integration
    Internal
  • Conectivity
    N/A
  • Charger
    Bosch 4A
  • Drivetrain and Brakes
  • Brake System
    Magura MT5e Hydr. Disc Brake (203/203)
  • Rear Derailleur
    Shimano Deore, LinkGlide Technology, 10-Speed
  • Front Derailleur
    N/A
  • Shifters
    Shimano Deore SL-M5130-R10, LinkGlide
  • Bottom Bracket
    N/A
  • Crankset
    ACID E-Crank, 48T, 175mm
  • Cassette
    Shimano CS-LG-400, 11-43
  • Chain
    Shimano CN-LG500
  • Cockpit
  • Handlebar
    CUBE Comfort Trail Bar, 700mm
  • Stem
    CUBE Comfort Stem Pro, 31.8mm, Adjustable
  • Grips
    ACID Travel Comfort
  • Headset
    M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  • Wheels
  • Wheelset
    Newmen Performance 25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
  • Front Tyre
    Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
  • Rear Tyre
    Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
  • Max Tyre Clearance
    56mm
  • Finishing Kit
  • Seatpost
    CUBE Performance Post, 30.9mm
  • Saddle
    Natural Fit Sequence
  • Pedals
    ACID PP Trekking
  • Extras
  • Kickstand
    ACID FM Pure Kickstand

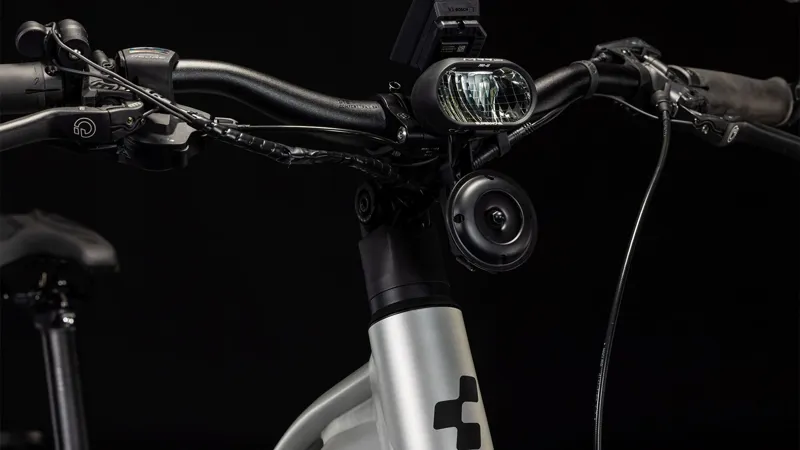

  • Lighting
    Supernova M99 Mini Pro, 250 Lux, 12V, DC / Supernova M99 Tail Light, 12V DC
  • Lock
    N/A
  • Carrier
    ACID Integrated Carrier 3.0, CUBE Adapter Compatible
  • Mudguards
    ACID 65 Integrated Carrier 3.0
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry


50cm54cm
ASeat Tube Length (mm)480520
BSeat Tube Angle74°74°
CTop Tube Length (mm)633635
DHead Tube Length (mm)133144
EHead Tube Angle67.5°67.5°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)11951198
IChain Stay Length (mm)460460
JBottom Bracket Drop (mm)7575
KStack (mm)652662
LReach (mm)447446
MStand Over Height (mm)677689
NHandlebar Width (mm)
OStem Length (mm)6565
PCrank Length (mm)170170
QWheel Size700c700c

Frame Ergonomics

50cm54cm
Length seat post350350
Diameter seatpost30.930.9
Angle stem
Stroke seatpost
Rear suspension travel
Professional Opinion
  • Fully Integrated Battery
    The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
  • Advanced Internal Cable Routing
    Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.

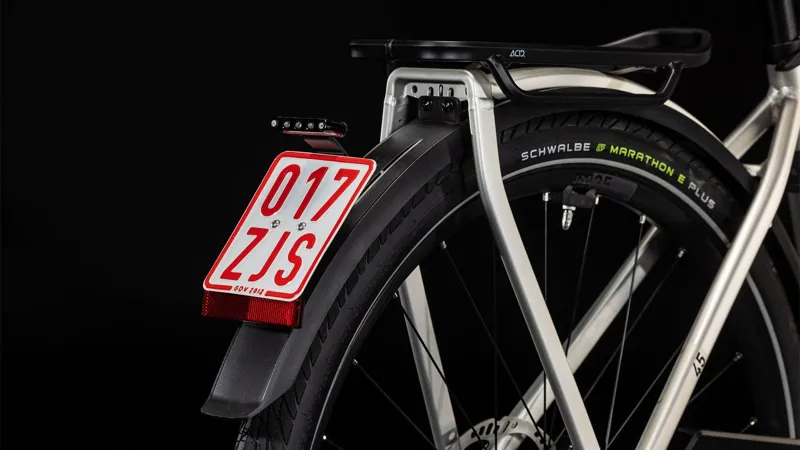

  • Integrated Carrier 3.0
    The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
  • Boost 148
    A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
  • Efficient Comfort Geometry
    With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
  • Gravity Casting
    Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
