Kemen Adv is equally at home cutting through the city or exploring the hills.
Kemen Adv is equally at home cutting through the city or exploring the hills.
Orbea

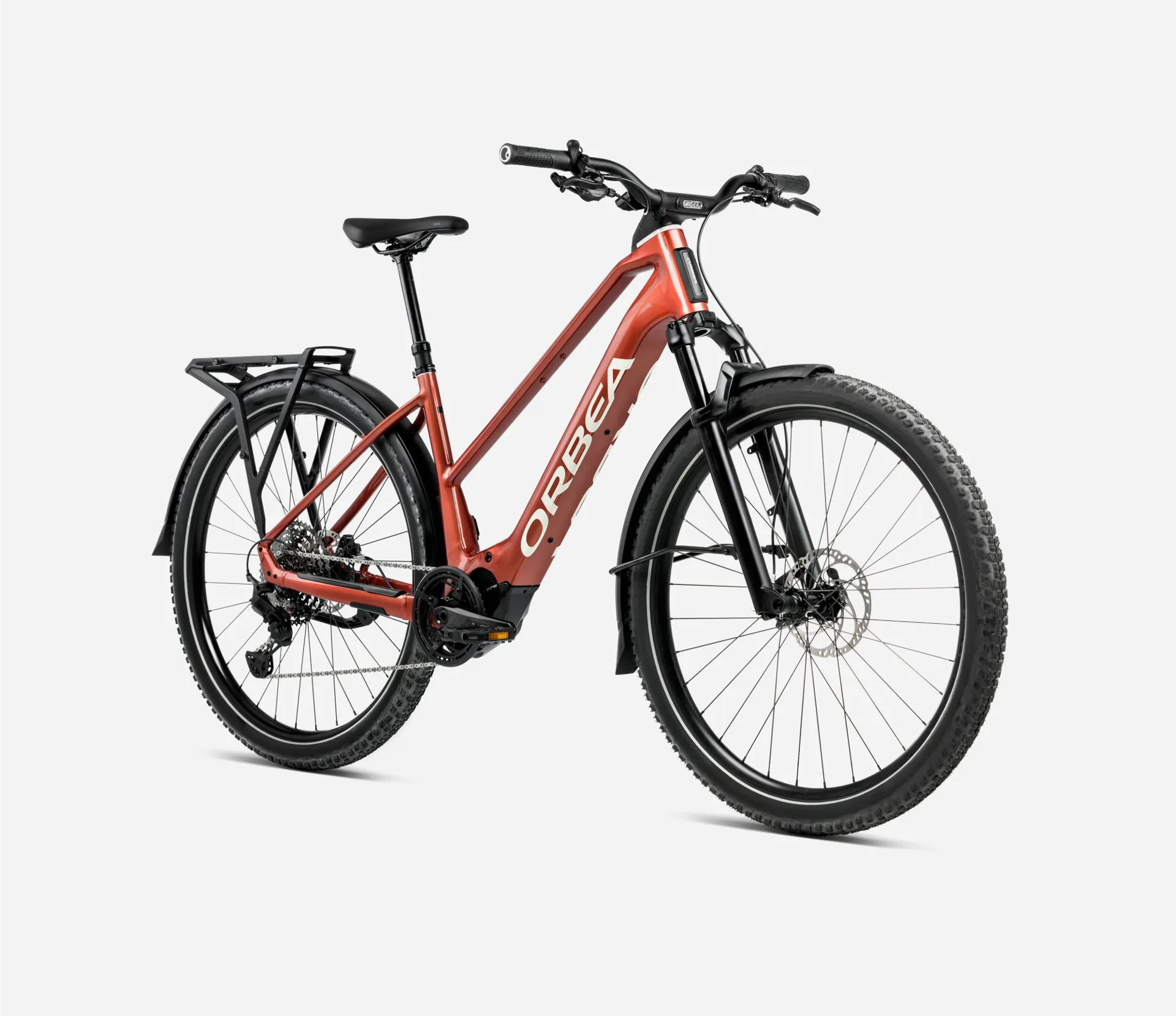

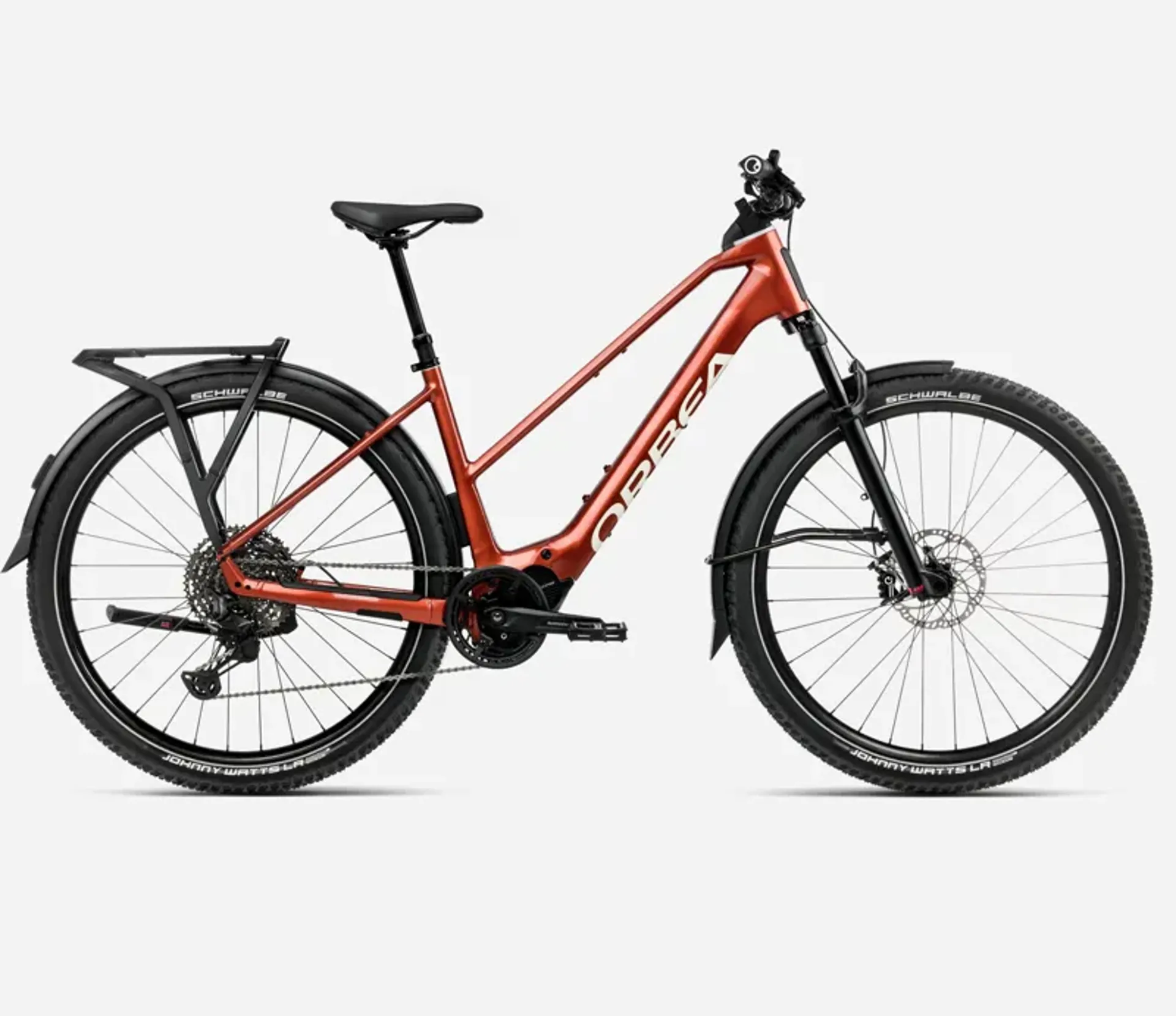

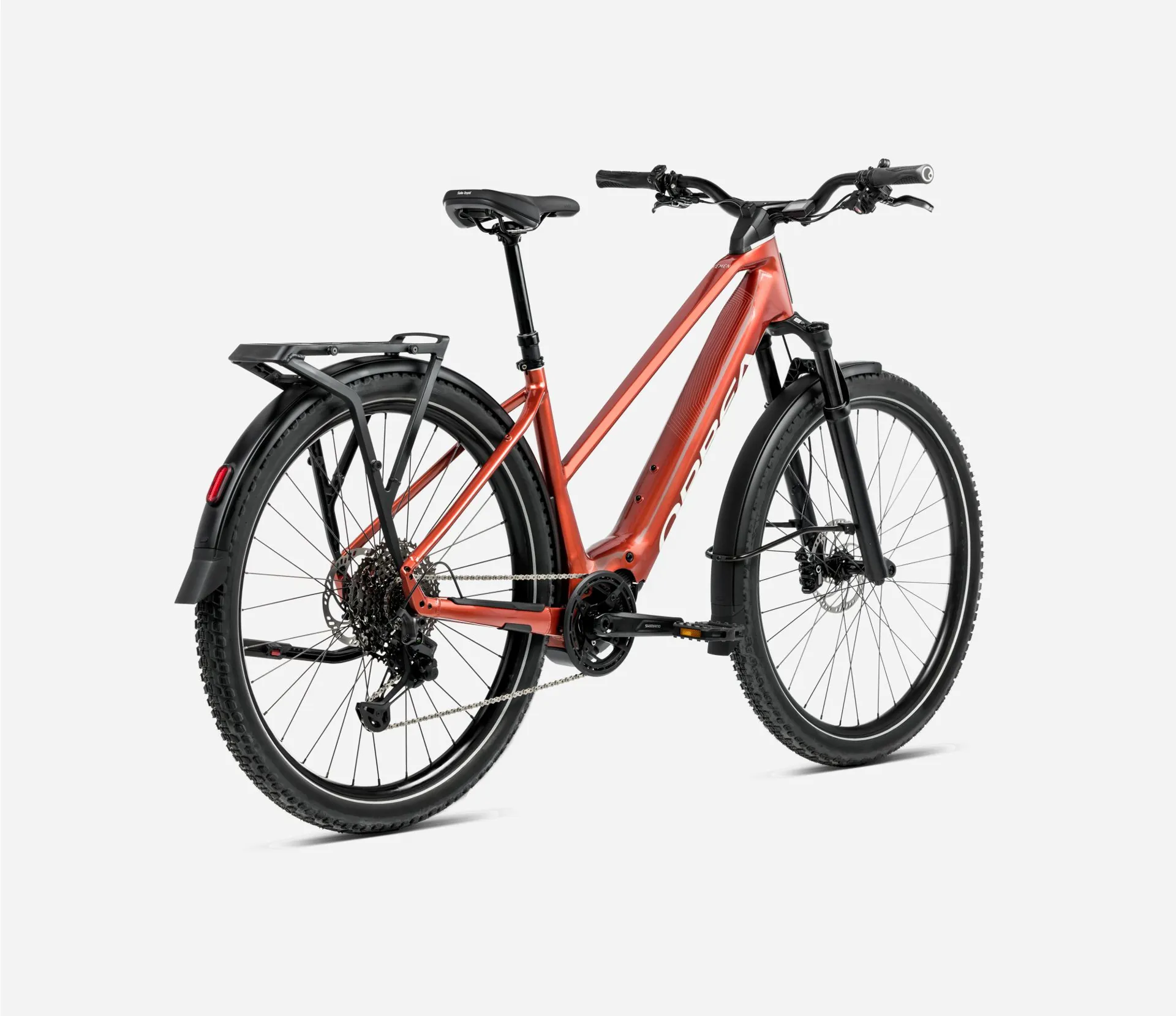

2025 Orbea Kemen Adv 10 Mid - Electric Hybrid Bike - Mars Red / Ivory White

£4,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Orbea Kemen Adv 10 Mid - Electric Hybrid Bike - Mars Red / Ivory White

Season:2025

Brand:Orbea

Code:S367TTCCVU

Kemen Adv is equally at home cutting through the city or exploring the hills.

The powerful Shimano EP motor and 630Wh battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.

Escape the everyday - Take a deep breath of fresh air. Follow that trail and find out where it leads. Pack a lunch and head out to the beach. Why don’t you take it a little bit too far and escape for a while?

Features:
  • Off-road suspension - The 100mm fork gives enough travel for control on rougher trails.
  • Telescopic seatpost - The telescopic seatpost makes mounting and dismounting easy, even when fully loaded.
  • Powerful Ep6 motor - The powerful ep motor system offers 85nm of assistance to help speed you up the steepest climbs, or carry heavy loads.
  • 630wh battery - The 630wh battery, integrated into the downtube uses the latest cell technology to pack more charge into a smaller space.
  • Intelligent lighting system - Every kemen has a built in, high-tech lighting system which automatically switch on to keep you safe and light the way ahead.
  • 30kg rear rack - Enjoy the benefits of the 30kg capable rear rack, with the mik hd easy attachment system. It is also compatible with conventional saddlebag mounts and with the ortlieb ql 3.1, mik and mik-side systems. Bring along your favorite copilot by installing a child seat.
Technical Information
  • Frame
  • Sizes
    Small, Medium, Large, XL
  • Colours
    Blue Stone (Matt) / Burgundy (Gloss)
    Mars Red / Ivory White (Gloss)
    Diamond Black (Matt / Gloss)
  • Frame
    Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
  • Forks and Shocks
  • Fork
    Fox 34 Float AWL 100 RAIL QR15x110
  • Rear Shock
    N/A
  • eSystem
  • Motor
    Shimano EP600
  • Controller
    EN600-L
  • Display
    N/A
  • Battery Type
    Orbea Internal 630Wh
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Drivetrain and Brakes
  • Brake System
    Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
  • Rear Derailleur
    Shimano XT M8130 Link Glide SGS Shadow Plus
  • Front Derailleur
    N/A
  • Shifters
    Shimano XT M8130 Link Glide
  • Bottom Bracket
  • Crankset
    Shimano Steps EM600
  • Cassette
    Shimano CS-LG400 11-50t 11-Speed
  • Chain
    KMC eGlide
  • Cockpit
  • Handlebar
    Orbea Urban, Integrated Light, Rise 50, Width 720
  • Stem
  • Grips
  • Headset
  • Wheels
    Alloy, Tubeless, 29", 29c, 32H
  • Front Wheel Axle
  • Front Tyre
    Schwalbe Johnny Watts LR, 60-622, Reflective Tape
  • Rear Tyre
    Schwalbe Johnny Watts LR, 60-622, Reflective Tape
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    OC Mountain Control MC22, 31.6mm, Dropper
  • Saddle
    Selle Royal Vivo Ergo
  • Pedals
    VP-537 Black
  • Extras
  • Kickstand
    Massload rear adjustable
  • Lighting
    Front - Supernova Starstream Pro, High Beam
    Rear - Supernova TL3 Z
  • Lock
    N/A
  • Carrier
    Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
  • Mudguards
    Curana Apollo Orbit 70mm
  • Other
    Dropper Lever - Shimano SL-MT500
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
S153 - 172
M164 - 183
L176-195


Frame Geometry


SML
ASeat Tube Length (mm)428442.7457.3
BSeat Tube Angle74.7°74.7°74.7°
CTop Tube Length (mm)583.5612641
DHead Tube Length (mm)129.5138.6150.6
EHead Tube Angle66.5°67.2°67.2°
FFork Rake (mm)464646
GTrail (mm)
HWheel Base (mm)116211911222
IChain Stay Length (mm)450450450
JBottom Bracket Drop (mm)656565
KStack (mm)633644655
LReach (mm)417444.5470.5
MStand Over Height (mm)
NHandlebar Width (mm)720720720
OStem Length (mm)
PCrank Length (mm)
QWheel Size29"29"29"
Professional Opinion
  • Intergrated Lights
  • Rear Rack fitted
  • Kickstand
