If you're searching for the pinnacle of cycling performance, the Pinarello Dogma F Frameset is the ultimate choice.

Pinarello

Pinarello Dogma F Frameset - Black on Black

£5,500.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Pinarello Dogma F Frameset - Aurik Yellow

Pinarello Dogma F Frameset - Edge Crystal White

Pinarello Dogma F Frameset - Luxter Blue

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

28 day returns

We always want you to be happy with your online purchase, but if for any reason this isn't the case, then CJ Performance Cycles offers a 28 day returns policy.

If your order has not yet been dispatched, we should be able to cancel it immediately and process your refund. If, however, you order has been processed, you have 14 days from receipt of goods to inform us of your intention to cancel your order. You then have a further 14 days to return the goods to us. Returns received outside this 14 day period will not be accepted and will be shipped back to you.

Any items returned must be in unused condition and in the original packaging, which should also be in as-new condition. Any signs of overhandling will result in a charge against the amount refunded.

Items must be returned at your own cost, and we recommend that you use a reputable, insured service as the goods will remain your property until your order is refunded. Any items returned without proof of postage that are lost in transit are not the responsibility of CJ Performance Cycles, and we reserve the right to cancel any refunds in this scenario.

A refund will be issued once the products have been received and inspected by CJ Performance Cycles, usually within 14 days.

Our customers love us

Don't take our word for it, check out some of the great reviews our customers have left us & if you've had a great experience with us, why not let us — and our customers — know about it.

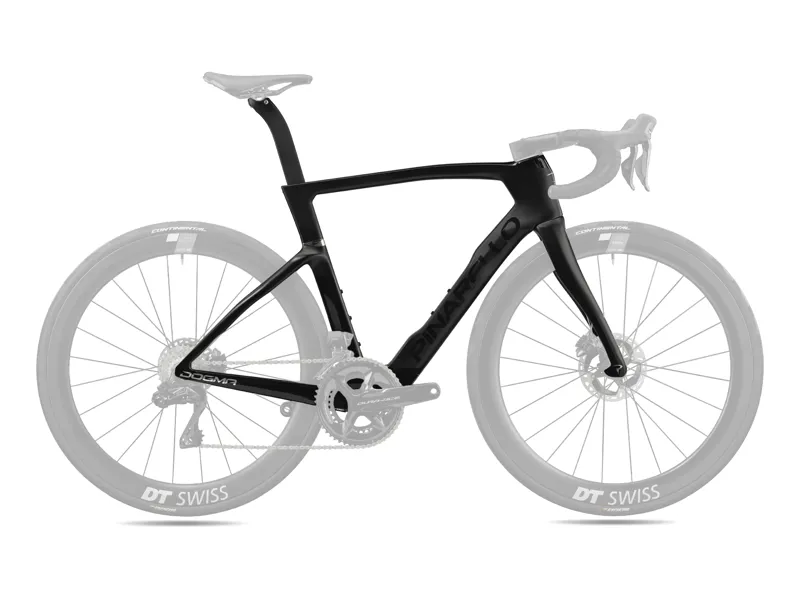

Pinarello Dogma F Frameset - Black on Black

Season:2025

Brand:Pinarello

Code:F196-309BOB

If you're searching for the pinnacle of cycling performance, the Pinarello Dogma F Frameset is the ultimate choice. Engineered for speed, precision, and comfort, this frameset is designed to dominate the road. With its aerodynamic refinements, advanced carbon fibre construction, and exceptional ride quality, the Dogma F is the go-to choice for elite cyclists and enthusiasts alike.

Unparalleled Performance and Innovation

The Pinarello Dogma F embodies cutting-edge technology, pushing the boundaries of aerodynamics and weight savings without compromising stiffness. Crafted from M40X carbon fibre, this frameset delivers a perfect balance of lightweight efficiency and structural integrity, ensuring maximum power transfer on every pedal stroke.

Key Features:

M40X Carbon Fibre – Offers an optimal strength-to-weight ratio
Asymmetric Frame Design – Enhances stability and responsiveness
Flatback Tube Shape – Reduces drag for superior aerodynamics
TiCR Internal Cable Routing – Provides a clean, sleek look with improved airflow
Optimized for Electronic and Mechanical Groupsets – Ensures versatility for all riders

Aesthetics That Turn Heads

Stunning colorways: This frameset allows riders to express their style while riding a world-class machine.

Aurik Yellow – A bold, vibrant yellow that exudes energy and speed
Black on Black – A stealthy, aggressive look with a sleek matte and gloss finish
Edge Crystal White – A pure, elegant white that stands out with a refined touch
Luxter Blue – A deep, rich blue that embodies sophistication and power
Luxter Red Gold – A striking combination of red with golden accents for a premium aesthetic

Dominate Every Ride

Whether you're tackling steep climbs, sprinting for the finish line, or cruising through long endurance rides, the Pinarello Dogma F is engineered to deliver top-tier performance in every condition. With its aerodynamic prowess and superior handling, this frameset is trusted by professional racers and dedicated cyclists worldwide.

Upgrade your ride with the Pinarello Dogma F Frameset and experience the perfect fusion of innovation, style, and performance. Ready to elevate your cycling game? Discover the Dogma F today and ride like a champion.

Pinarello MyWay

Looking for something a bit different? The Pinarello MyWay program allows riders to customize the Dogma F and Dogma X bikes with a personalized color scheme. Through a simple four-step process, cyclists can choose from five graphic layouts (Mono, Faded, Cut, Edge and Xolar), 27 colours, five decal styles, and matte or glossy finishes, resulting in thousands of unique combinations.

Sizing Information

Size Guide

The choice of an exact frame size is a very complex and delicate topic which is not always straightforward without seeing an athlete on his/her bike. In addition to this, Pinarello offers a wide range of frame options and components that offer both very accurate position options but also require in-depth evaluations.

In addition to this, as more and more bikes are beginning to be fitted with an integrated handlebar and stem setup it is even more important to discuss sizing with us. Getting this measurement wrong can result in an incorrect position on the bike and an incur an expensive cost when having to replace the handlebar / stem combo for a correctly sized version.

If you have any questions specific to sizing, call our Cramlington store and speak with our bike fitter who will be able to help with an initial sizing before purchasing your bike. Once purchased we are happy to supply a full bike fit when you collect your new Pinarello from in store.

Get in touch with one of our stores (Newcastle - 0191 276 0941 or Cramlington - 01670 712 536) to find out how we can help.

Frame Geometry

		430	465	500	515	530	540	550	560	575	595	620
A	Seat Tube Length (mm)	430	460	490	515	530	545	550	560	575	595	620
B	Seat Tube Angle	74.4°	74.4°	74°	73.7°	73.7°	73.4°	73.4°	73°	73°	72.4°	72°
C	Top Tube Length (mm)	500	515	525	535	545	550	557	565	575	587	620
D	Head Tube Length (mm)	102	109	114	119	128	136	147	154.5	168	204	244
E	Head Tube Angle	69.5°	70.5°	71.4°	72°	72.5°	72.8°	72.8°	73.2°	73.7°	73.4°	73.4°
F	Fork Rake (mm)	47	47	47	47	47	47	47	47	47	47	47
G	Trail (mm)
H	Wheel Base (mm)
I	Chain Stay Length (mm)	407	407	407	407	407	408	408	409	409	409	411
J	Bottom Bracket Drop (mm)	67	72	72	72	72	72	72	72	72	67	67
K	Stack (mm)	502	517.3	252.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
L	Reach (mm)	351.5	365.4	372.2	378.2	383.3	385.3	389.2	390.8	396.7	393.4	410
M	Stand Over Height (mm)	-	-	-	-	-	-	-	-	-	-	-
N	Handlebar Width (mm)	-	-	-	-	-	-	-	-	-	-	-
O	Stem Length (mm)	-	-	-	-	-	-	-	-	-	-	-
P	Crank Length (mm)	-	-	-	-	-	-	-	-	-	-	-
Q	Wheel Size	-	-	-	-	-	-	-	-	-	-	-

Professional Opinion

Carbon M40X
The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fibre lay-up our X-Light models and Ineos Grenadiers team bikes. This new has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.
Downtube
The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag
Aero-Keel BB
Trickle-down technology from the Hour Record,The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.
Top Tube
The unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.
Headset
To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.
Thru Axles
New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame
Onda Fork
The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.
Integrated Seat Post Clamp
Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.
