From Hors Categorie climbs to rollers and flats, this worldtour level race frame is the pro's choice for all-rounder performance.
From Hors Categorie climbs to rollers and flats, this worldtour level race frame is the pro's choice for all-rounder performance.
Giant

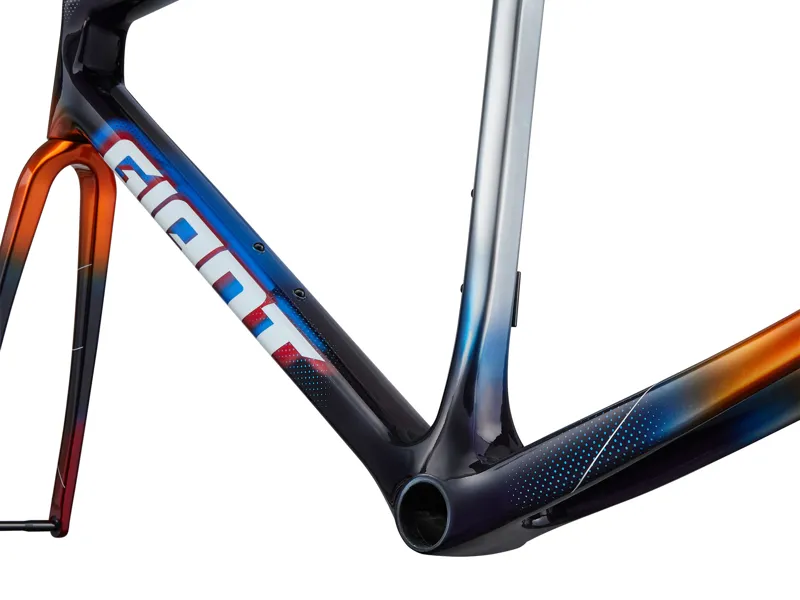

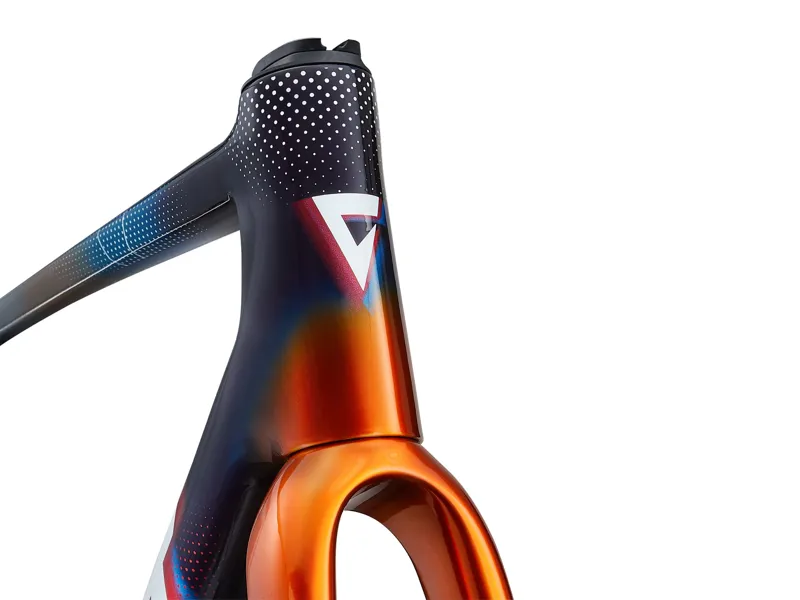

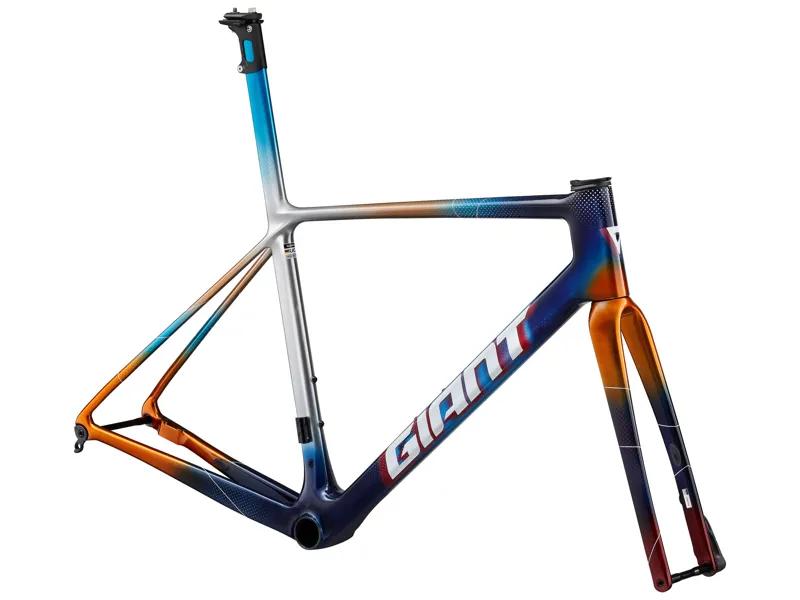

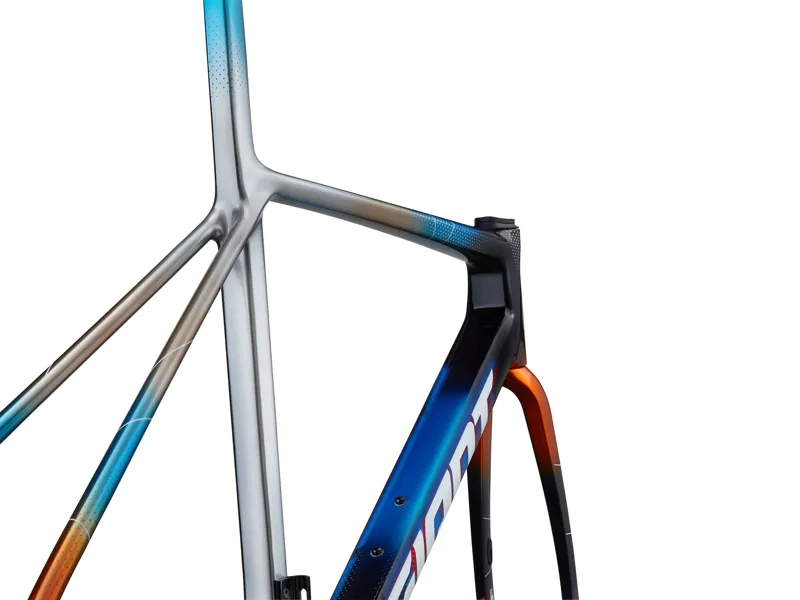

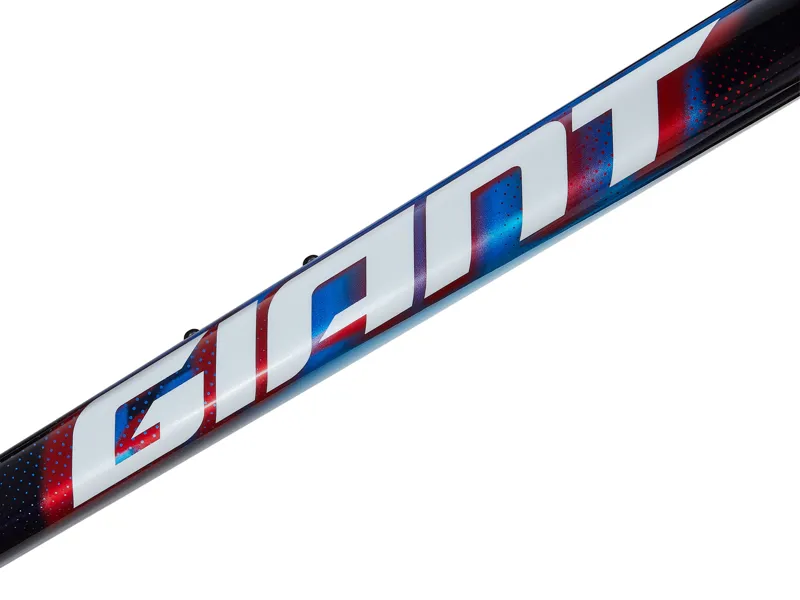

2025 Giant TCR Advanced SL Frameset - Road Race Frameset - Maraya Blue

£3,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Giant TCR Advanced SL Frameset - Road Race Frameset - Maraya Blue

Season:2025

Brand:Giant

Code:1913007

The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

System Optimisation

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

Winning Efficiency

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

Integrated Aerodynamics

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Technical Information
  • Frame
  • Sizes
    X-Small (430mm), Small (450mm), Medium(470mm), Medium / Large (490mm), Large(510mm), X-Large (530mm)
  • Colours
    Maraya Blue, Opal Brushed Chrome
  • Frame
    Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc
  • Forks and Shocks
  • Fork
    Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    N/A
  • Rear Derailleur
    N/A
  • Front Derailleur
    N/A
  • Shifters
    N/A
  • Bottom Bracket
    N/A
  • Crankset
    N/A
  • Cassette
    N/A
  • Chain
    N/A
  • Cockpit
  • Handlebar
    N/A
  • Stem
    N/A
  • Grips
    N/A
  • Headset
  • Wheels
  • Front Hub
    N/A
  • Rear Hub
    N/A
  • Rim
    N/A
  • Front Tyre
    N/A
  • Rear Tyre
    N/A
  • Max Tyre Clearance
    N/A
  • Finishing Kit
  • Seatpost
    Giant Integrated Seatpost, -5/+15mm offset
  • Saddle
    N/A
  • Pedals
    N/A
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)Rider height (feet)
XS157 - 169
S165 - 175
M171 - 181
M / L177 - 187
L183 - 193
XL189 - 199

Frame Geometry


XSSMM / LLXL
ASeat Tube Length (mm)680710740770800830
BSeat Tube Angle74.5°74.0°73.5°73.0°73.0°72.5°
CTop Tube Length (mm)520535550565580600
DHead Tube Length (mm)120130145165185200
EHead Tube Angle71.0°72.3°73.0°73.0°73.0°73.0°
FFork Rake (mm)454545454545
GTrail (mm)72.064.059.059.059.059.0
HWheel Base (mm)97697798099110061020
IChain Stay Length (mm)405405405405405405
JBottom Bracket Drop (mm)726969676767
KStack (mm)517528545562581596
LReach (mm)376383388393402412
MStand Over Height (mm)703722743771798822
NHandlebar Width (mm)400400420420440440
OStem Length (mm)8090100110110120
PCrank Length (mm)170170172172175175
QWheel Size700c700c700c700c700c700c
Professional Opinion
  • Advanced SL Composite Technology
    Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.
  • Integrated Seatpost
    Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 40 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.
  • Compact Road Design
    Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
  • OverDrive Aero
    Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.
