This aero rocketship is built for speed when it matters most.
This aero rocketship is built for speed when it matters most.
Giant

2024 Giant Propel Advanced Pro - Aero Road Frameset - Matte Carbon Smoke

£1,898.00 £2,199.00 14% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

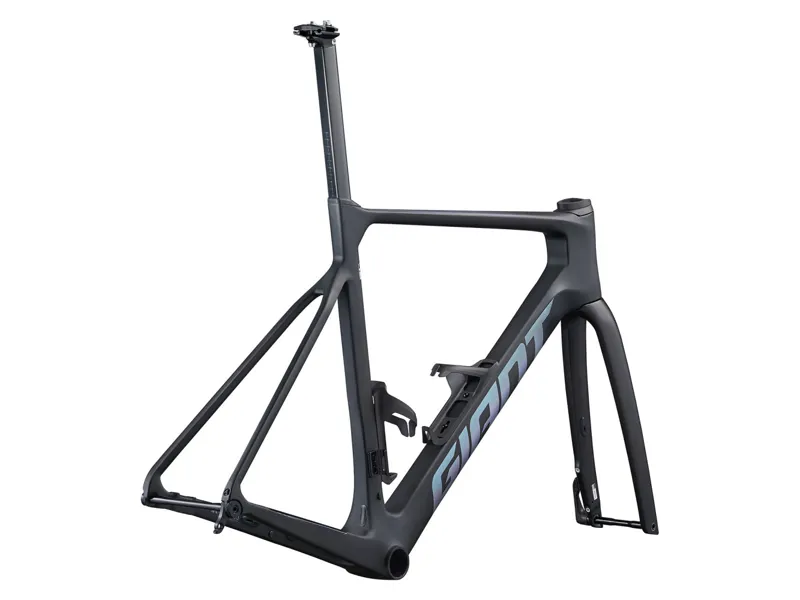

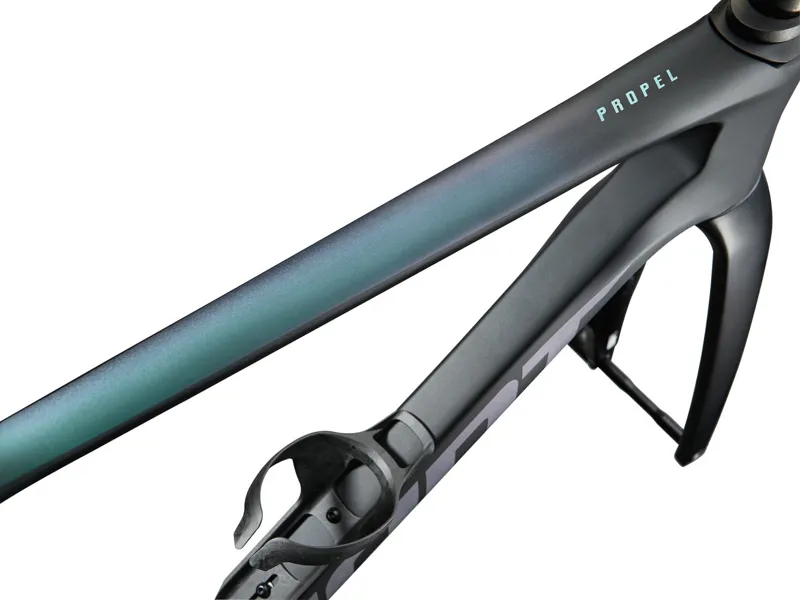

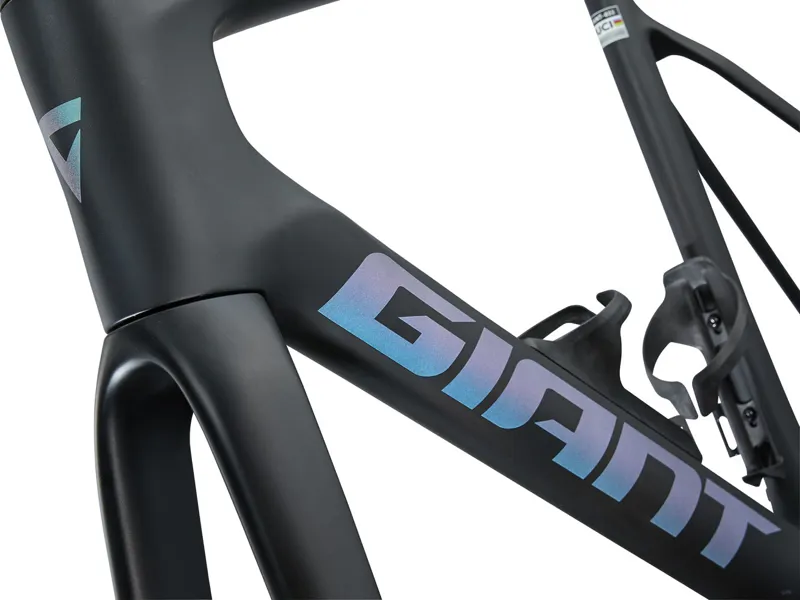

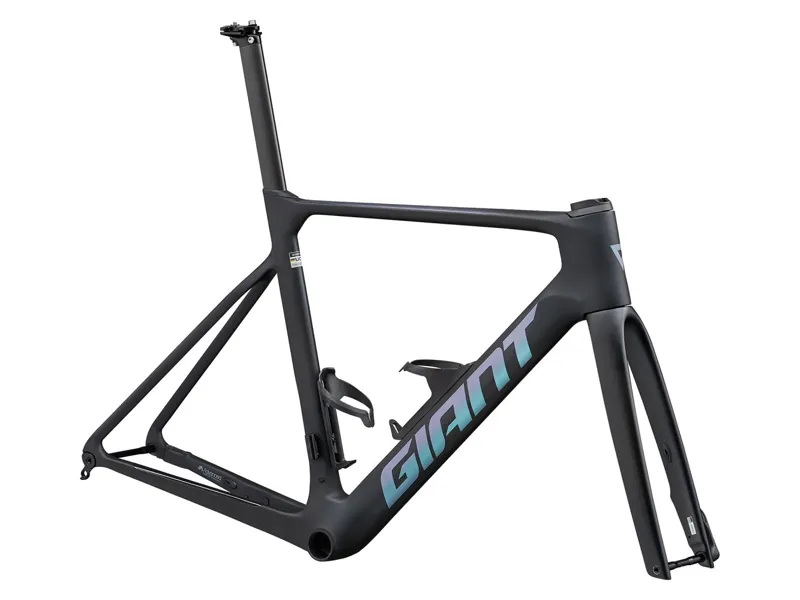

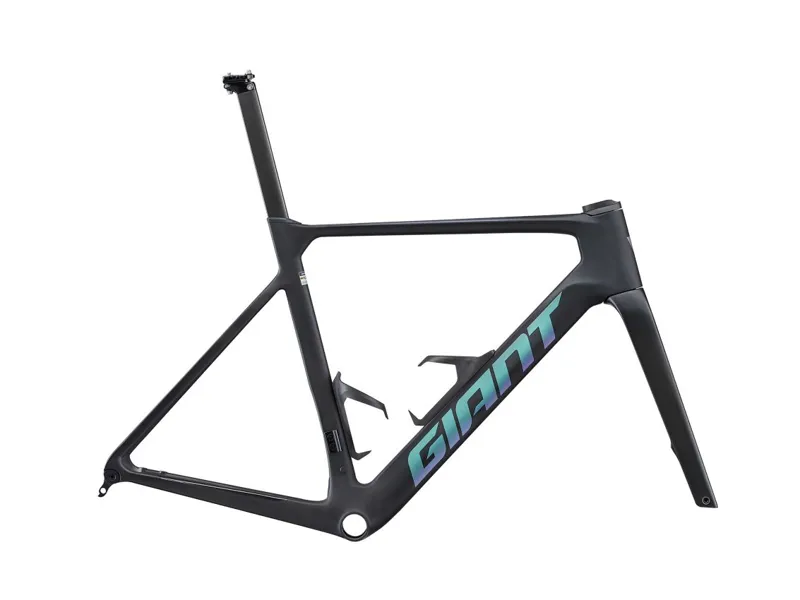

2024 Giant Propel Advanced Pro - Aero Road Frameset - Matte Carbon Smoke

Season:2024

Brand:Giant

Code:1906001CBN

Want a Giant Proped Advanced Pro, but want to build it to your own specs? This frameset is lighter than the previous generation and engineered to slice through wind. The result? Race-winning efficiency than puts you ahead of the pack.

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.

Easier adjustability

All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.

Technical Information
  • Frame
  • Sizes
    S (19.7"), M (20.5"), M/L (21.5"), L (22.6")
  • Colours
    Matte Carbon Smoke
  • Frame
    Advanced-Grade Composite, disc
  • Forks and Shocks
  • Fork
    Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
  • Rear Shock
    N/A
  • Drivetrain and Brakes
  • Bottom Bracket
    N/A
  • Finishing Kit
  • Seatpost
    Giant Vector, composite, -5/+15mm offset
Sizing Information

Size Guide

Frame SizeRider height (cm)Rider height (feet)
S165 - 1755'5" - 5'9"
M171 - 1815'7" - 5'11"
ML177 - 1875'10" - 6'2"
L183 - 1936'0" - 6'4"

Frame Geometry


SMMLL
ASeat Tube Length (mm)500520545575
BSeat Tube Angle74.0°73.5°73.0°73.0°
CTop Tube Length (mm)535550565580
DHead Tube Length (mm)130145165185
EHead Tube Angle72.3°73.0°73.0°73.0°
FFork Rake (mm)45454545
GTrail (mm)62.557.857.857.8
HWheel Base (mm)9779809911006
IChain Stay Length (mm)405405405405
JBottom Bracket Drop (mm)70706767
KStack (mm)528545562581
LReach (mm)383388393402
MStand Over Height (mm)753770794821
NHandlebar Width (mm)400420420440
OStem Length (mm)90100110110
PCrank Length (mm)170172.5172.5175
QWheel Size700C700C700C700C
