The Pinarello F7 Disc is a high-performance road bike engineered for speed, precision, and comfort.
The Pinarello F7 Disc is a high-performance road bike engineered for speed, precision, and comfort.
Pinarello

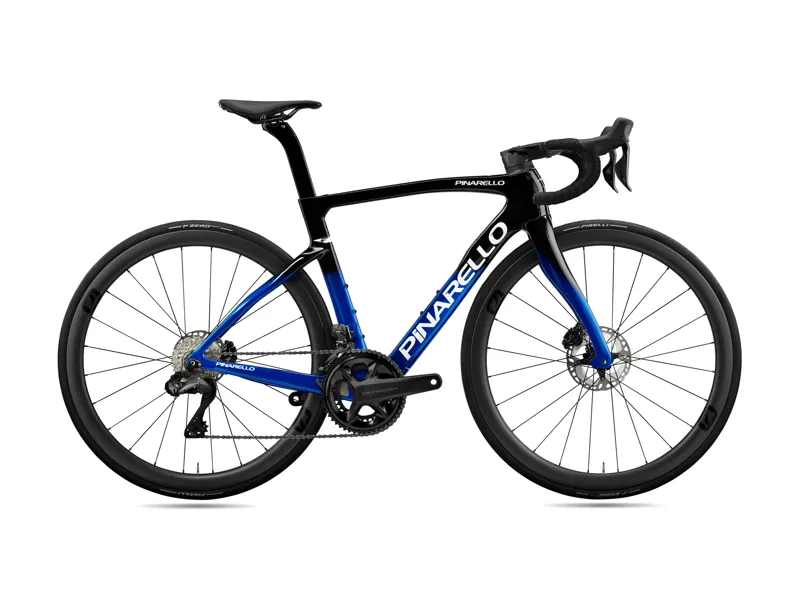

Pinarello F7 Disc - Ultegra Di2 equipped Road Bike - Fastest Blue

£7,000.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Pinarello F7 Disc - Ultegra Di2 equipped Road Bike - Fastest Blue

Season:2025

Brand:Pinarello

Code:D1648170163-000FBLUE

The Pinarello F7 Disc is a high-performance road bike engineered for speed, precision, and comfort. Crafted with cutting-edge aerodynamics and premium components, the F7 Disc is designed to elevate your riding experience, whether you're racing or tackling long endurance rides.

Advanced Carbon Frame

At the heart of the Pinarello F7 Disc is a meticulously engineered TorayCa T900 carbon fibre frame. This high-modulus carbon construction provides an ideal balance of stiffness, responsiveness, and lightweight efficiency. With asymmetric frame geometry, the F7 Disc optimizes power transfer while maintaining stability, ensuring that every watt of effort translates into maximum speed.

High-Performance Wheels

The Pinarello F7 Disc is equipped with aerodynamic wheel options, carefully selected to enhance speed and handling. Designed to reduce drag and improve efficiency, these wheels offer exceptional performance on flat terrain and rolling hills alike. The integration of disc brakes ensures precise stopping power, delivering confidence and control in all conditions.

Premium Groupset for Seamless Shifting

The F7 Disc features top-tier drivetrain components, offering both Shimano Ultegra Di2 and SRAM Rival eTap AXS options. With wireless electronic shifting, the groupset delivers smooth, lightning-fast gear changes, allowing you to focus entirely on the ride. The advanced braking system provides reliable stopping power, even in wet and challenging conditions.

Striking Color Options

The Pinarello F7 Disc is available in five stunning colors, ensuring a sleek and stylish look to match its high performance:

  • Blue Sapphire – A bold and striking deep blue hue.

  • Fastest Blue – A dynamic, speed-inspired shade that stands out.

  • Fastest Red – A vibrant and aggressive color, perfect for those who love a racing aesthetic.

  • Furious Black – A sleek and stealthy option for riders who prefer an understated, yet powerful, presence.

  • Lunar White – A clean, elegant finish that exudes sophistication and performance.

Why Choose the Pinarello F7 Disc?

The F7 Disc combines aerodynamics, lightweight construction, and cutting-edge technology, making it a top choice for riders who demand speed and efficiency. Whether you're sprinting for the finish line or pushing your limits on a long climb, this bike delivers exceptional performance and style.

Experience the ultimate ride with the Pinarello F7 Disc – engineered for speed, built for champions.

Pinarello MyWay

Looking for something a bit different? Pinarello’s MyWay program allows riders to customize the Dogma F and Dogma X bikes with a personalized color scheme. Through a simple four-step process, cyclists can choose from five graphic layouts (mono, faded, cut, edge and xolar), 27 colours, five decal styles, and matte or glossy finishes, resulting in thousands of unique combinations.

Technical Information
  • Frame
  • Sizes
    430 mm, 465 mm, 500 mm, 515 mm, 530 mm, 545 mm, 560 mm, 575 mm, 595 mm
  • Colours
    Blue Sapphire / Lunar White / Fastest Blue / Fastest Red / Furious Black
  • Frame
    TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
  • Forks and Shocks
  • Fork
    Onda Fork
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Connectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano Ultegra R8150, 2 pistons caliper (160mm / 140mm)
  • Rear Derailleur
    Shimano Ultegra RD-R8150 Di2 Rear Derailleur
  • Front Derailleur
    Shimano Ultegra FD-R8150 Di2 Front Derailleur
  • Shifters
    Shimano Ultegra Di2
  • Bottom Bracket
    Shimano Ultegra
  • Crankset
    Shimano Ultegra R8100 Chainset 50/34t
  • 170mm Crank length
    430mm, 465 mm, 500 mm, 515 mm frame sizes
  • 172.5mm Crank length
    530mm, 540 mm, 560 mm frame sizes
  • 175mm Crank length
    575 mm, 595 mm frame sizes
  • Cassette
    Shimano Ultegra CS-R8100 Cassette - 11-34t 12spd
  • Chain
    Shimano - 12 Speed
  • Cockpit
  • Handlebar
    MOST Talon Ultra Light
  • Stem
    Integrated
  • Grips
    MOST bar tape
  • Headset
  • Wheels
  • Wheelset
    MOST Ultrafast 45
  • Front Tyre
    Pirelli P7 Sport 35-622 black 60 tpi Nylon breaker
  • Rear Tyre
    Pirelli P7 Sport 35-622 black 60 tpi Nylon breaker
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    Pinarello Aero Seatpost
  • Saddle
    Pinarello Lynx Ultra Superflow
  • Pedals
    Not supplied: Shop pedals here
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

The choice of an exact frame size is a very complex and delicate topic which is not always straightforward without seeing an athlete on his/her bike. In addition to this, Pinarello offers a wide range of frame options and components that offer both very accurate position options but also require in-depth evaluations.

In addition to this, as more and more bikes are beginning to be fitted with an integrated handlebar and stem setup it is even more important to discuss sizing with us. Getting this measurement wrong can result in an incorrect position on the bike and an incur an expensive cost when having to replace the handlebar / stem combo for a correctly sized version.

If you have any questions specific to sizing, call our Cramlington store and speak with our bike fitter who will be able to help with an initial sizing before purchasing your bike. Once purchased we are happy to supply a full bike fit when you collect your new Pinarello from in store.

Get in touch with one of our stores (Newcastle - 0191 276 0941 or Cramlington - 01670 712 536) to find out how we can help.

Frame Geometry


430

465

500

515

530

545

560

575

595

ASeat Tube Length (mm)430460500515530545560575595
BSeat Tube Angle74.4°74.4°74°73.7°73.7°73.4°73°73°72.4°
CTop Tube Length (mm)500515525535545555565578600
DHead Tube Length (mm)97104109114123138149.5178220
EHead Tube Angle69.5°70.5°71.4°72°72.5°72.873.2°73.7°73.4°
FFork Rake (mm)434343434343434343
GTrail (mm)
HWheel Base (mm)
IChain Stay Length (mm)406406408408408410410410410
JBottom Bracket Drop (mm)677272727272727267
KStack (mm)502.5517.7525.5532.3542.6557.9570.3599.3633.5
LReach (mm)351.3365.2372.1378.1385.6388.3390.8395.4400.3
MStand Over Height (mm)
NHandlebar Width (mm)420420420420440440440460460
OStem Length (mm)809090100100100110110110
PCrank Length (mm)170170170170172.5172.5172.5175175
QWheel Size700c700c700c700c700c700c700c700c700c
Professional Opinion
  • Carbon T9000 UD
    The right balance between reactivity, dampening capabilities and lightness for competition.
  • Asymmetric Frame
    Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
  • Onda Fork
    A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.
  • Competition Geometry
    30 grand tours have been won on Pinarello bikes. 70 years of victories and continuous improvements have been distilled into what we consider the best race geometry in the industry.
