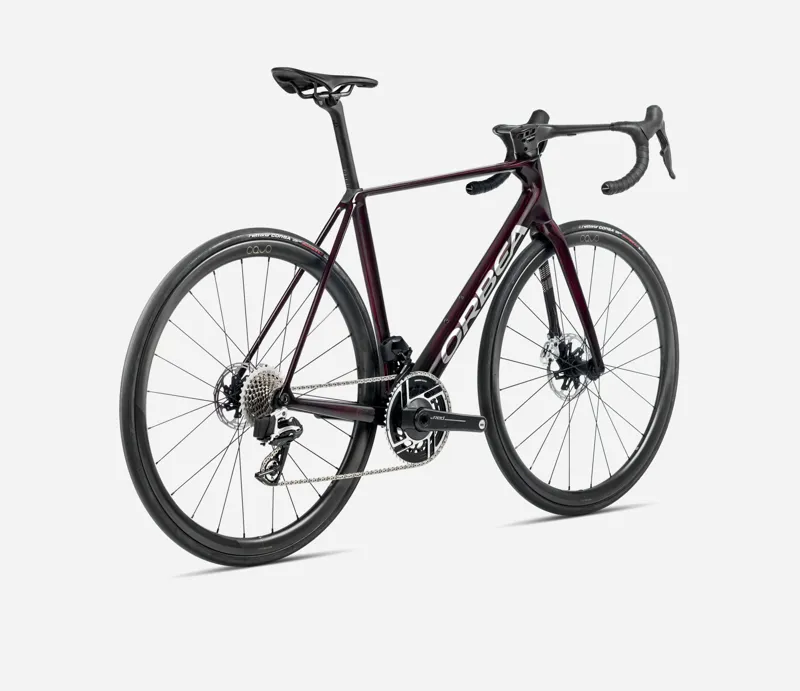

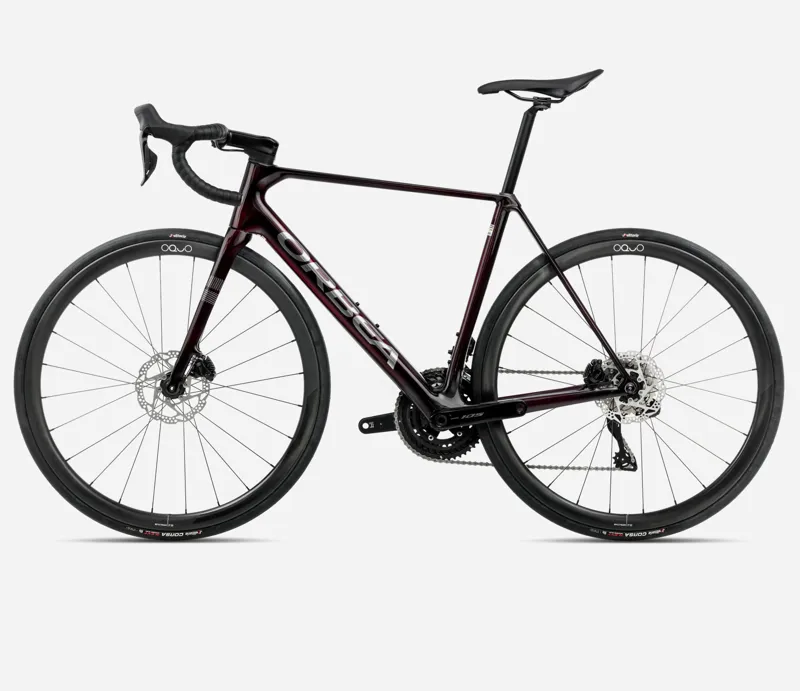

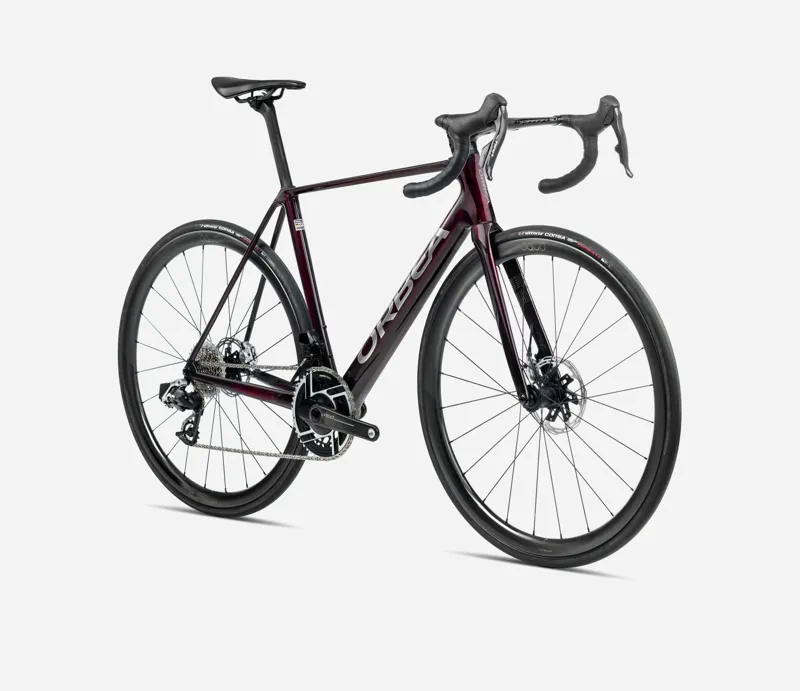

2025 Orbea Orca M35i - Carbon Road Bike - Wine Red / Titanium Gloss

Season:2025

Brand:Orbea

Code:S110TTCCCB

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top. The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.

Features:

  • Powerspine - the lower spine of the frame handles the large majority of torsional and lateral loads.
  • Icr plus - internal cable routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.
  • 32mm tire clearance - modern road riders have discovered the advantages of bigger tires on rougher surfaces.
  • Seat clamp - the minimal seat post clamp saves weight and adds a touch of style.
  • Saddle clamp - the clever saddle clamp is lighter than ever and works perfectly for both round and oval rails.
Technical Information
  • Frame
  • Sizes
    47cm, 49cm, 51cm, 53cm, 55cm, 57cm, 60cm
  • Colours
    Wine Red / Titanium (Gloss),
    Ivory White / Burgundy (Gloss) / Vulcano (Matt),
    Vulcano / Black (Matt) / Black (Gloss),
    Slate Blue / Halo Silver (Matt)

  • Frame
    Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.

  • Forks and Shocks
  • Fork
    Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
  • Rear Shock
    N/A

  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A

  • Drivetrain and Brakes
  • Brake System

    Shimano R7170 Hydraulic Disc - 160mm Front /140mm Rear

  • Rear Derailleur
    Shimano 105 Di2 R7150
  • Front Derailleur
    Shimano 105 Di2 R7150
  • Shifters
    Shimano Di2 R7170
  • Bottom Bracket
  • Crankset
    Shimano 105 R7100 34x50t
  • Cassette
    Shimano 105 R7100 11-34t 12-Speed
  • Chain
    Shimano M6100
  • Cockpit
  • Handlebar
    OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
  • Stem
    OC Road Performance RP22, -5º
  • Grips
    Orbea Anti-Slippery/Shock Proof
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Wheels
  • Wheelset
    Oquo Road Performance RP35TEAM
  • Front Tyre
    Vittoria Corsa N.Ext G2.0 Foldable 700x28c
  • Rear Tyre
    Vittoria Corsa N.Ext G2.0 Foldable 700x28c
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle
    Fizik Aliante R5
  • Pedals
    Not supplied: Shop pedals here

  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
47cm155 - 160
49cm160 - 166
51cm167-172
53cm173-179
55cm180-185
57cm186 - 191
60cm192 - 207

Frame Geometry

47495153555760
ASeat Tube Length (mm)440460480500520540570
BSeat Tube Angle74.5º74º73.7º73.5º73.5º73.2º73.2º
CTop Tube Length (mm)510.5522.7535.9548.5560.4576.1590
DHead Tube Length (mm)110.5118.2134.6152.9173.1191.2218.3
EHead Tube Angle71º71.5º72.2º72.8º73º73.2º73.2º
FFork Rake (mm)48484843434343
GTrail (mm)6662.858.459.958.757.457.4
HWheel Base (mm)971.8975.4980981.2991.41001.91015.6
IChain Stay Length (mm)408408408408408408408
JBottom Bracket Drop (mm)72727270707070
KStack (mm)506515533552572590616
LReach (mm)370375380385391398404
MStand Over Height (mm)736.5748.5767.6788.5808.5826.5852.5
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size700c700c700c700c700c700c700c

Frame Geometry

47495153555760
Length seat post
Diameter seatpost27.227.227.227.227.227.227.2
Angle stem-6º-6º-6º-6º-6º-6º-6º
Stroke seatpost
Rear suspension travel
