Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.
Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.
Orbea

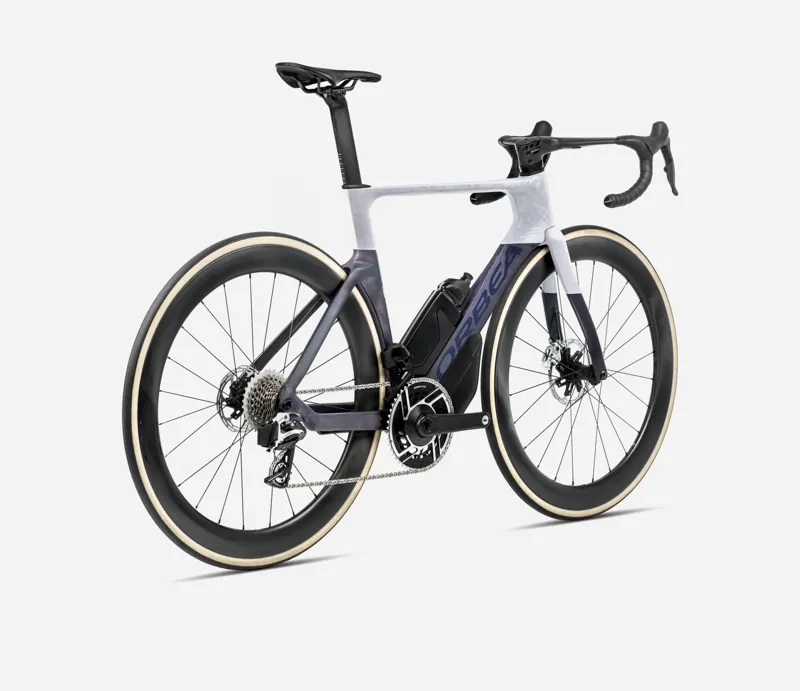

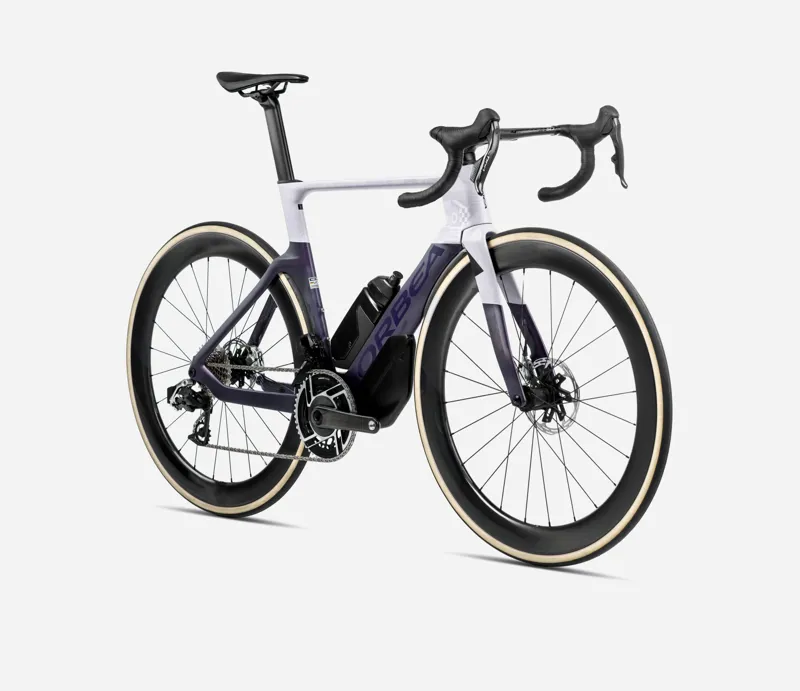

2025 Orbea Orca Aero M30-LTD - Carbon Aero Road Bike - Tanzanite / Lilac Matt / Lilac Gloss

£4,399.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Orbea Orca Aero M30-LTD - Carbon Aero Road Bike - Tanzanite / Lilac Matt / Lilac Gloss

Season:2025

Brand:Orbea

Code:S126TTCCAP

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!

Features:

  • Performance Design -Orca is built on the understanding of performance and design, reflecting Orbea's belief that bikes should look great and ride better. Orca’s minimal, timeless lines give it its distinctive style and cover some very modern technology.
  • No Trade Offs - The clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximising traction and compliance.
  • Rigid In All The Right Parts - Having the lightest bike is worth nothing if it isn’t stiff and efficient. Orca, started with a target on rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then Orca was designed to be as light as possible without compromising that number.
Technical Information
  • Frame
    Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.
  • Fork
    Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Crankset
    Shimano 105 R7100 36x52t
  • Shifters
    Shimano R7120
  • Cassette
    Shimano 105 R7100 11-34t 12-Speed
  • Rear Derailleur
    Shimano 105 R7100
  • Front Derailleur
    Shimano 105 R7100
  • Chain
    Shimano M6100
  • Handlebar
    OC Road Aero RA11 Carbon, Reach 80, Drop 125
  • Stem
    OC Road Performance RP10, -8º
  • Brakes
    Shimano R7170 Hydraulic Disc
  • Wheels
    Oquo Road Performance RP35PRO
  • Tyres
    Vittoria Rubino IV G2.0 Foldable 700x28c
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Lite
  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm M12x2 P1 Lite
  • Seatpost
    OC Road Aero RA10 Carbon, SB0/25, w/Micro tilt adjustment
  • Saddle
    Prologo Scratch-M5 Pas T2.0 size 140mm
  • Handlebar Tape
    Orbea Anti-Slippery/Shock Proof
  • Hydration
    OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10
  • Storage
    OC Aero Toolbox TB01PP
Sizing Information

Size Guide

Frame SizeRider height (cm)
47cm155 - 160
49cm160 - 166
51cm167-172
53cm173-179
55cm180-185
57cm186 - 191
60cm192 - 207

Frame Geometry

47495153555760
ASeat Tube Length (mm)459474499524544564589
BSeat Tube Angle74.5º74º73.7º73.5º73.5º73.2º73.2º
CTop Tube Length (mm)507.6520.8532.9545.5557.5573.1587
DHead Tube Length (mm)93.1100.8117.2134.9155.2173.2200.4
EHead Tube Angle71º71.5º72.2º72.8º73º73.2º73.2º
FFork Rake (mm)
GTrail (mm)64.9/6661.8/62.857.5/58.959/59.957.8/58.756.5/57.456.5/57.4
HWheel Base (mm)966.2971974.8976.1986.4996.91010.8
IChain Stay Length (mm)408408408408408408408
JBottom Bracket Drop (mm)76767674747474
KStack (mm)496505523542562580606
LReach (mm)370376380385391398404
MStand Over Height (mm)
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size

Frame Geometry

47495153555760
Length seat post
Diameter seatpost
Angle stem-6º-6º-6º-6º-6º-6º-6º
Stroke seatpost
Rear suspension travel
