The Aim ONE Allroad's go-anywhere build and comfortable suspension fork makes it the ideal weekend getaway vehicle, but its full equipment package means you're also all set for a longer tour or even the weekday commute.
The Aim ONE Allroad's go-anywhere build and comfortable suspension fork makes it the ideal weekend getaway vehicle, but its full equipment package means you're also all set for a longer tour or even the weekday commute.
Cube

2025 Cube Aim One Allroad - Fully equipped Hardtail Mountain Bike - Greyish Lilac / Reflect

£699.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
2025 Cube Aim One Allroad - Fully equipped Hardtail Mountain Bike - Slate Black / Black 2025 Cube Aim One Allroad - Fully equipped Hardtail Mountain Bike - Shamrock / Black
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Cube Aim One Allroad - Fully equipped Hardtail Mountain Bike - Greyish Lilac / Reflect

Season:2025

Brand:Cube

Code:840160

The bike couriers of the '80s were on to something when they latched on to mountain bikes. The Aim ONE Allroad's go-anywhere build and comfortable suspension fork makes it the ideal weekend getaway vehicle, but its full equipment package means you're also all set for a longer tour or even the weekday commute.

With the Aim Allroad we're redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance, the tapered head tube helps improve handling, and the flat disc mount integrates seamlessly with the included kickstand. Carefully thought out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim Allroad that fits perfectly.

Technical Information
  • Frame
  • Sizes
    X-Small (340mm), Small (370mm), Medium (420mm), Large (470mm), X-Large (515mm)
  • Colours
    Slate Black / Black, Greyish Lilac / Reflect, Shamrock / Black
  • Frame
    Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
  • Forks and Shocks
  • Fork
    SR Suntour XCE, 100mm
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160)
  • Rear Derailleur
    Shimano RD-TX800, 8-Speed
  • Front Derailleur
    Shimano FD-M315, Top Swing, 31.8mm Clamp
  • Shifters
    Shimano SL-M315, Rapidfire-Plus
  • Bottom Bracket
    Thun Paso-ML, 73mm BSA
  • Crankset
    Shimano FC-M315, 36x22T, 170mm
  • Cassette
    Shimano CS-HG200, 12-32T
  • Chain
    KMC Z8.3
  • Cockpit
  • Handlebar
    CUBE Rise Trail Bar, 680mm
  • Stem
    CUBE Performance Stem, 31.8mm
  • Grips
    ACID React
  • Headset
    CUBE FPH863, Semi-Integrated
  • Wheels
  • Front Hub
    Shimano DH-3D32, Hub Dynamo, QR
  • Rear Hub
    CUBE Alloy Light, QR, 6-Bolt
  • Rim
    CUBE EX25, 32H, Disc, Tubeless Ready
  • Front Tyre
    CUBE MTB, 2.25
  • Rear Tyre
    CUBE MTB, 2.25
  • Max Tyre Clearance
    57mm
  • Finishing Kit
  • Seatpost
    CUBE Performance Post, 27.2mm
  • Saddle
    ACID Venec Lite
  • Pedals
    CUBE PP MTB
  • Extras
  • Kickstand
    ACID FM Pure Kickstand
  • Lighting
    CUBE Shiny 50 / ACID Mudguard Rear Light PRO-D, 6V, AC
  • Lock
    N/A
  • Carrier

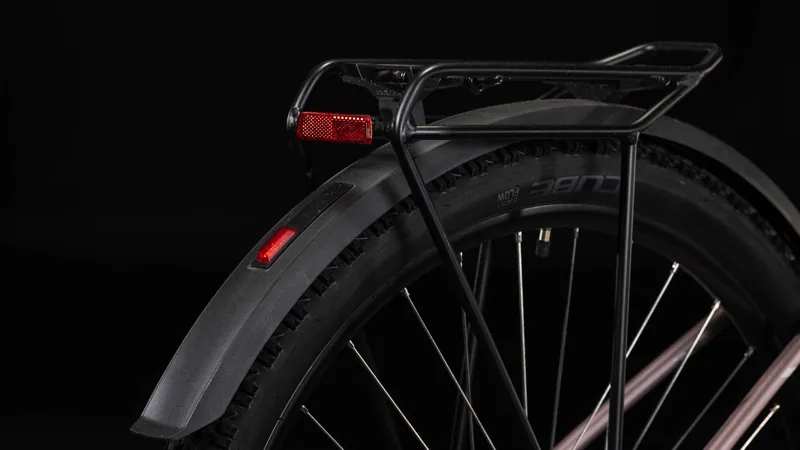

    ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible and Rail
  • Mudguards
    ACID 65
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry


XSSMLXL
ASeat Tube Length (mm)340370420470515
BSeat Tube Angle74°73.5°73.5°73.5°73.5°
CTop Tube Length (mm)555575595615635
DHead Tube Length (mm)107110110121141
EHead Tube Angle68.5°68.5°68.5°68.5°68.5°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)10681096113711581175
IChain Stay Length (mm)441441461461461
JBottom Bracket Drop (mm)5252656565
KStack (mm)595598627637656
LReach (mm)384398409426441
MStand Over Height (mm)707720759792824
NHandlebar Width (mm)680680680680680
OStem Length (mm)5050606070
PCrank Length (mm)170170170170170
QWheel Size27.5"27.5"29"29"29"
Professional Opinion
  • Aluminium Lite
    There's aluminium, and then there's CUBE Aluminium Lite. This heat-treated 6061 aluminium is stiff, fatigue-resistant and, because of its natural corrosion resistance, a great material from which to make lightweight tube sets – and bicycle frames. And it does all this without adding unnecessary weight, so you can get the best enjoyment out of your CUBE.
  • SplitSize
    The right bike should fit you perfectly. That's why we created SizeSplit. For shorter riders, the smaller 27.5in wheel standard allows us to build frames that fit well while remaining agile and sure-footed. And, for taller riders, we built a range of sizes around the fast-rolling 29er wheel standard. Whichever one you choose, you can be sure of a fit that makes your bike feel as though it was built just for you.
  • Allroad
    How versatile is a bicycle? When it's a CUBE Allroad, the answer is 'extremely'. Boasting a full complement of accessories including (depending on model) luggage carrier, mudguards, lights and kickstand, we built your Allroad to take on anything you care to throw its way. Weekday commuting, weekend touring and everything in between... our Allroad series has it covered.
  • Internal Cable Routing
    Cables connect your handlebar controls to vital components like gears and brakes, but there's no need for them to get in your way. With Internal Cable Routing we've reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike's appearance.
  • Smooth Welding
    Smooth Welding isn't easy, but worthwhile things usually aren't. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.
