CUBE STEREO 160 HPA 27.5 SL IRIDIUM/GREEN
CUBE STEREO 160 HPA 27.5 SL IRIDIUM/GREEN
Cube

2017 CUBE STEREO 160 HPA SL 27.5.

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

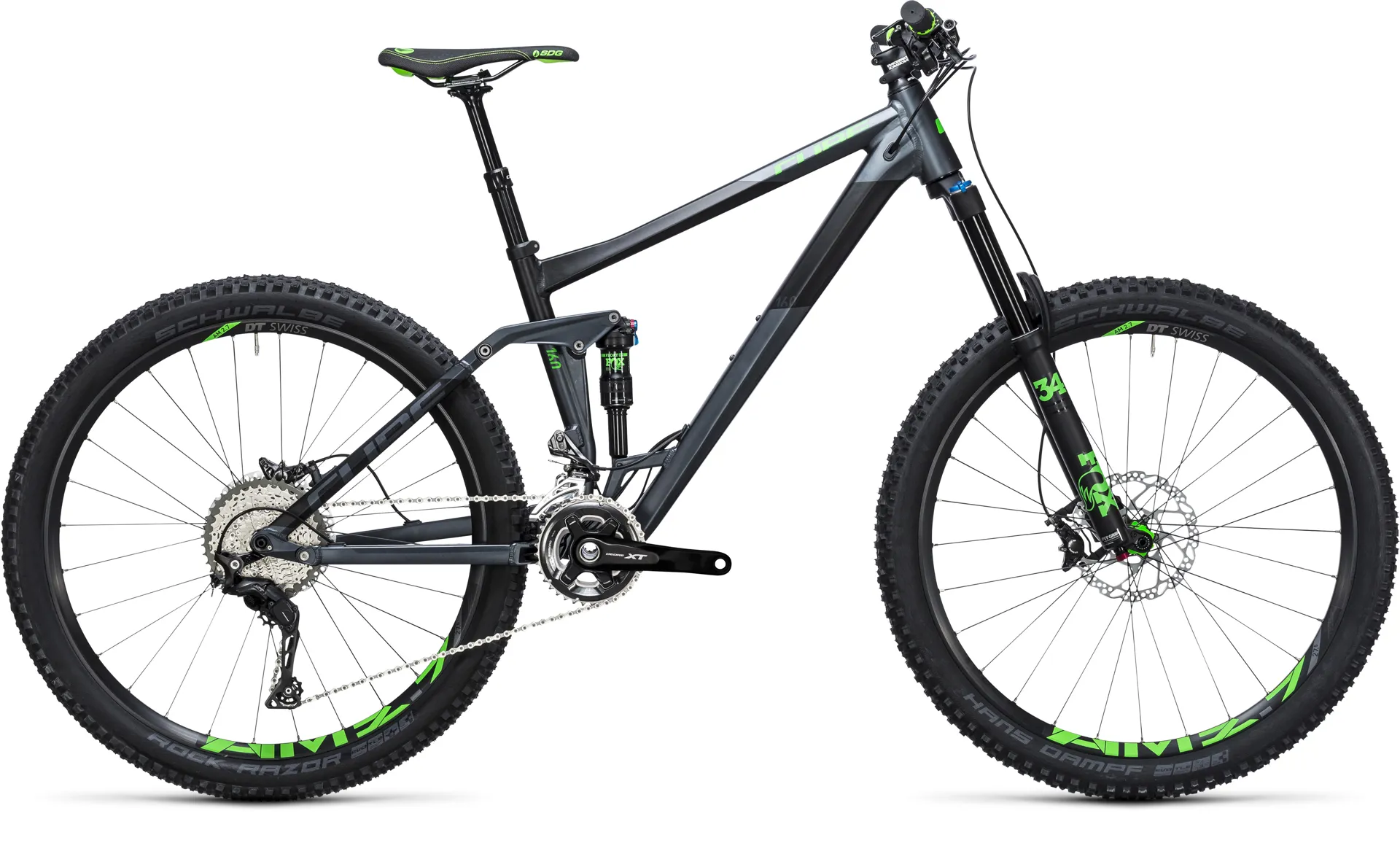

2017 CUBE STEREO 160 HPA SL 27.5.

Season:2017

Brand:Cube

Code:OLD_860400

The Stereo 160 HPA SL created waves when we introduced it, back in 2016. From the high quality HPA frame with 27.5in wheels and 160mm travel, to the hand picked components including Fox suspension and the 2x11 XT transmission, it's all designed to build into a total package that's perfect for taking on any trail - guaranteed.

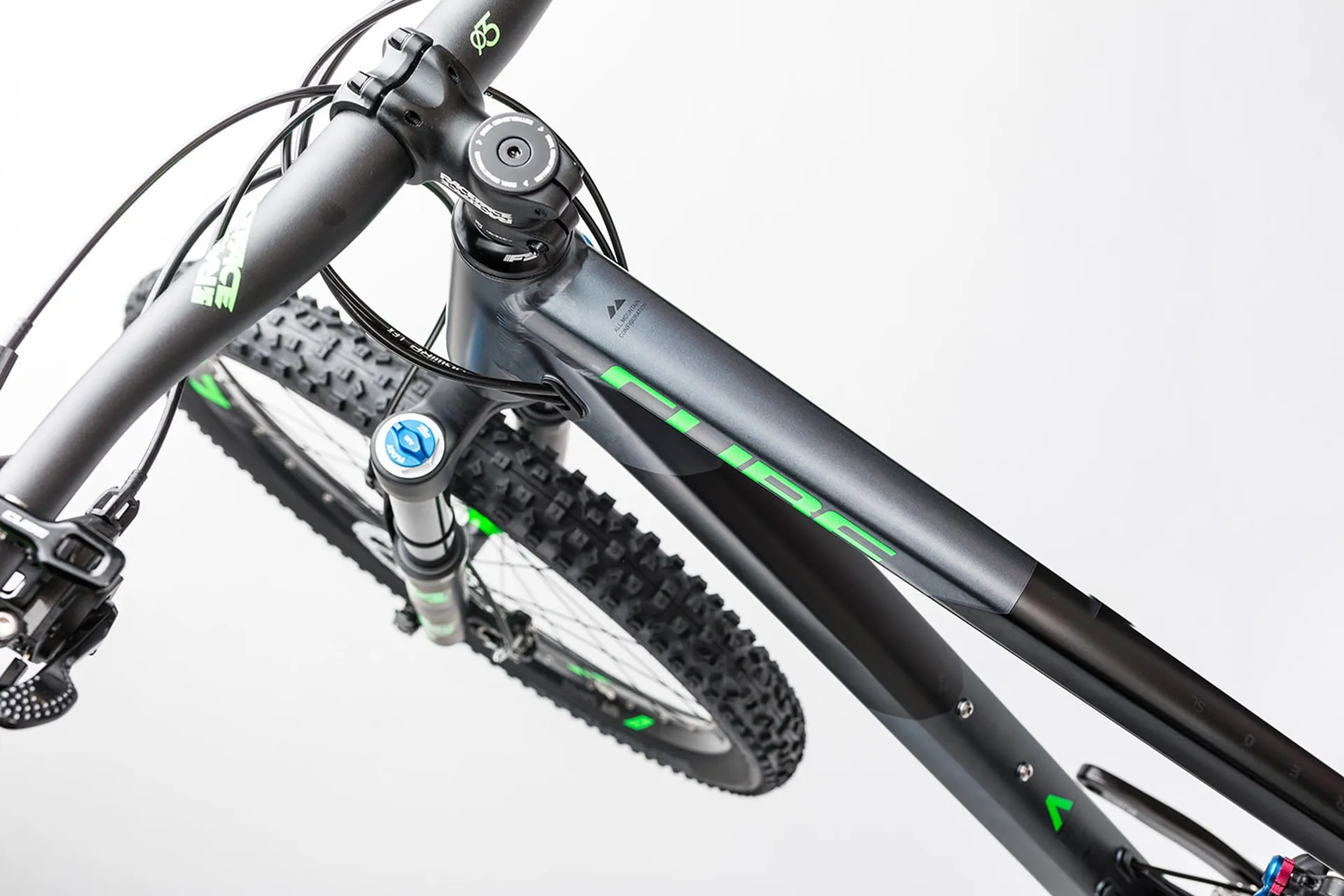

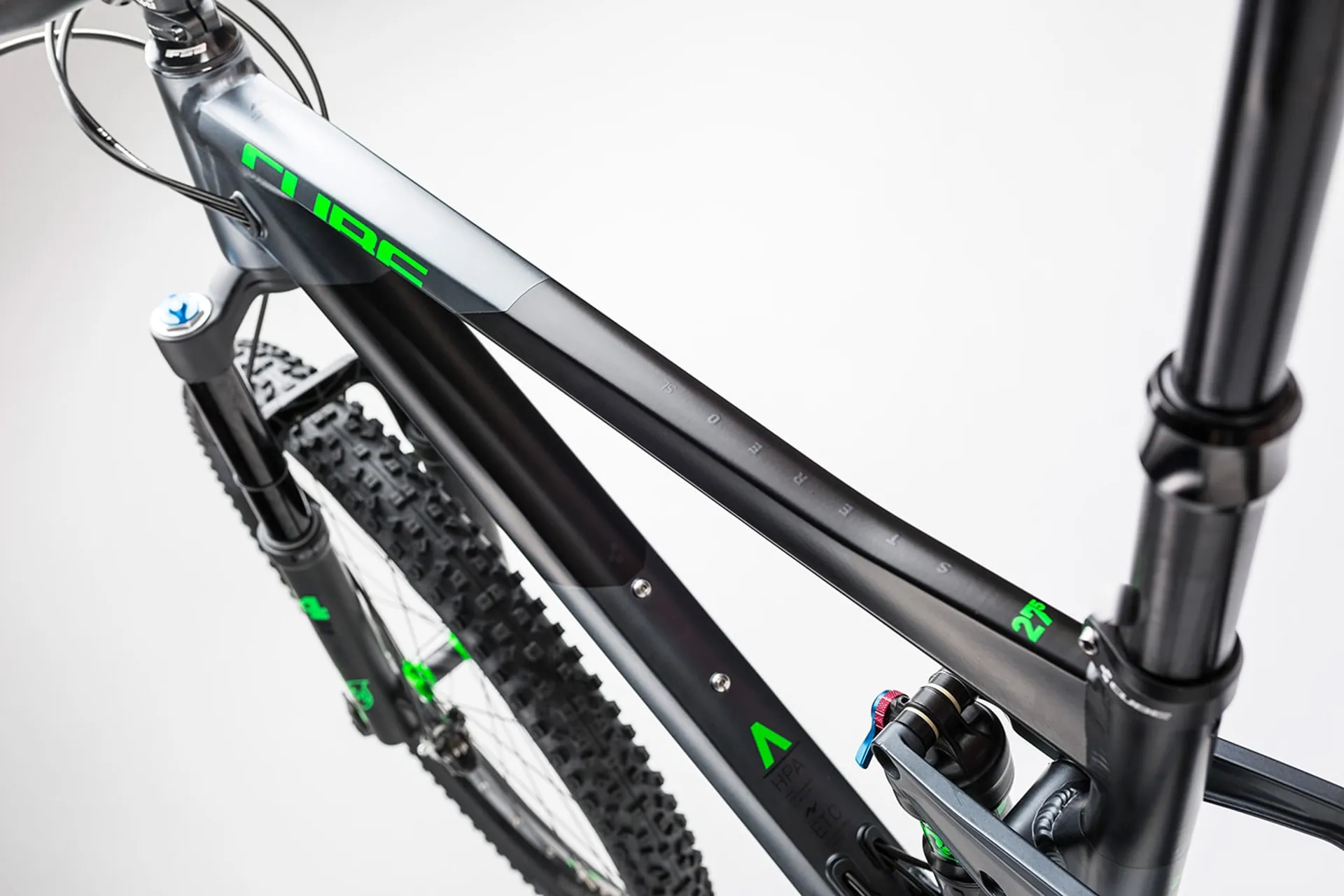

This HPA four pivot frame is a prime example of the current state-of-the-art in frame building. Triple butted 7005 High Performance Aluminium tubes, put through a hydroforming process, combine with a Boost148x12 rear axle and Trail Motion Rocker linkage to provide a rigid frame structure that's still remarkably light. Our Efficient Trail Control system guarantees the best possible suspension performance, regardless of frame size. And the widely-admired lively steering and stable downhill performance is made possible by our Agile Trail Geometry (ATG).

The SL's suspension is provided by a Fox 34 Float Performance fork and Float DPS shock - the new reference for reliable, enduro-proof suspension and surprisingly low weight. Maximum control and comfort is assured, even on the most difficult and demanding of trails. Shimano's 2x11 XT transmission with 36x26T chainset gives the best possible versatility and seamless gear shifts. The Shimano XT disc brakes work with the Hans Dampf / Rock Razor tyre combination and CSW AM 2.7 wheels to deliver flawlessly powerful braking, whatever the trail or weather. Other standout features include the CUBE dropper post and the super-stiff Race Face 35mm cockpit components.

Technical Information

he SL's suspension is provided by a Fox 34 Float Performance fork and Float DPS shock - the new reference for reliable, enduro-proof suspension and surprisingly low weight. Maximum control and comfort is assured, even on the most difficult and demanding of trails. Shimano's 2x11 XT transmission with 36x26T chainset gives the best possible versatility and seamless gear shifts. The Shimano XT disc brakes work with the Hans Dampf / Rock Razor tyre combination and CSW AM 2.7 wheels to deliver flawlessly powerful braking, whatever the trail or weather. Other standout features include the CUBE dropper post and the super-stiff Race Face 35mm cockpit components.

  • FRAMEHPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, Boost148, AXH
  • COLORiridium´n´green
  • SIZE16", 18", 20", 22"
  • FORKFox 34 Float, 3-Position Micro-Adjust GRIP damper, Tapered, 15QR, 160mm

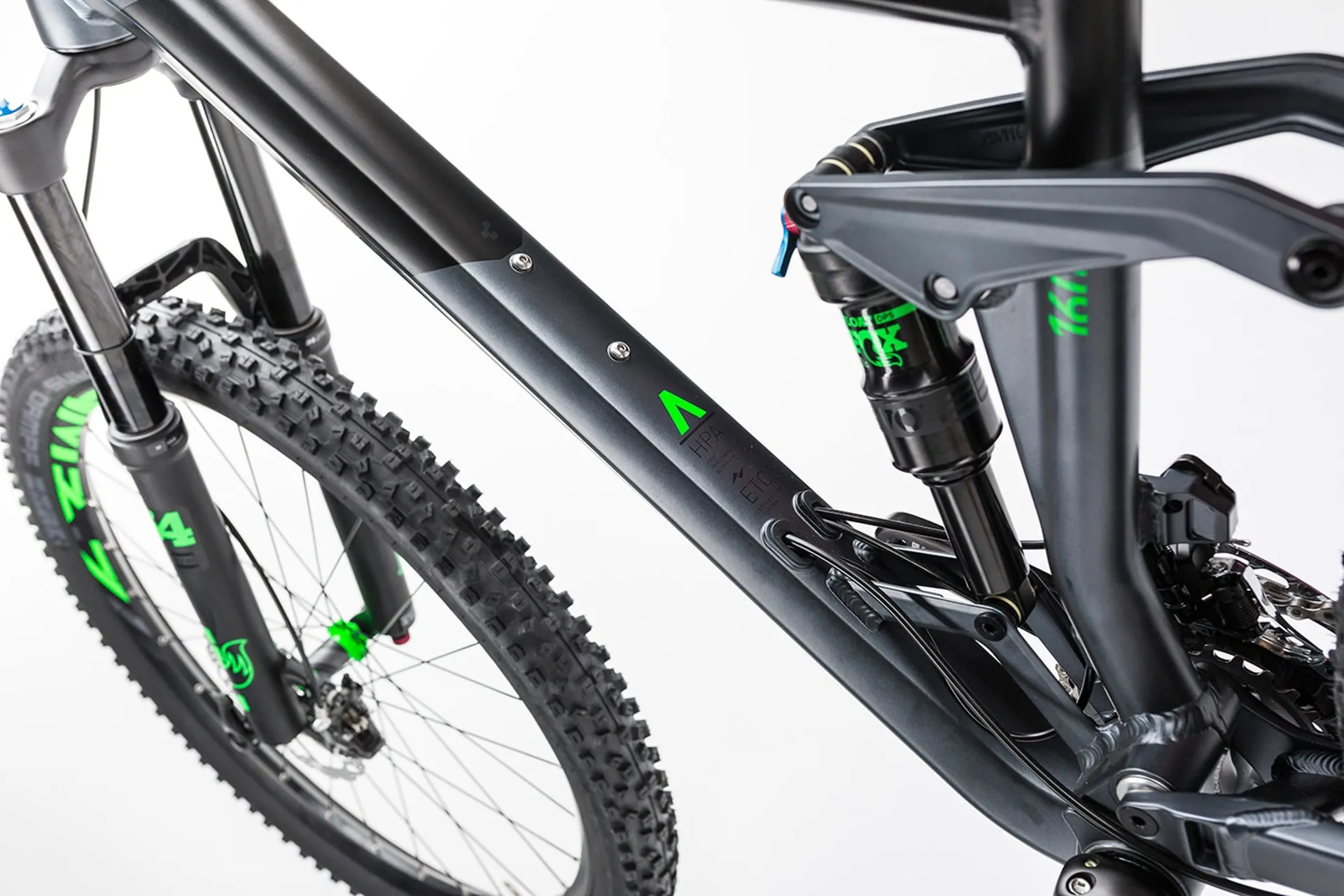

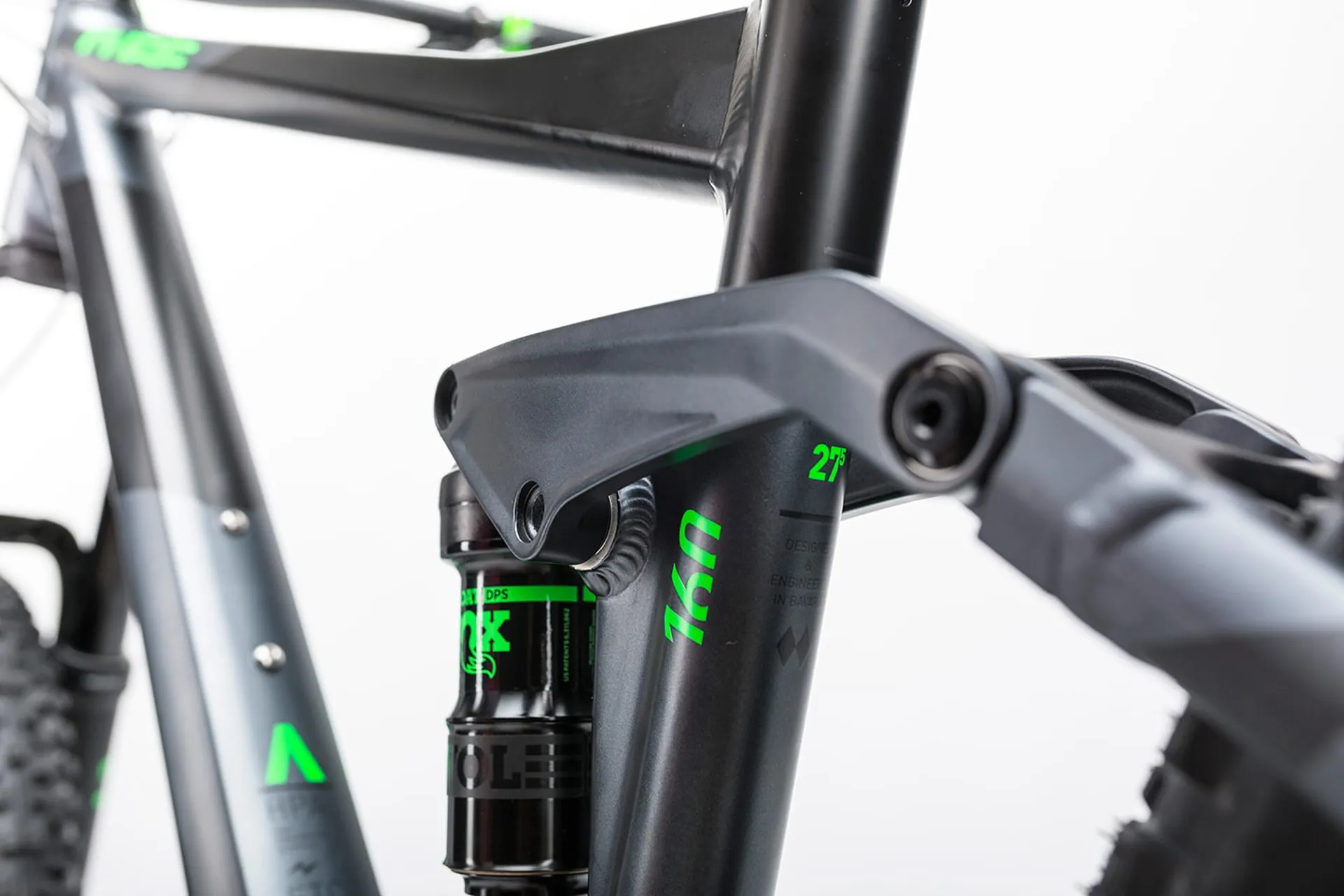

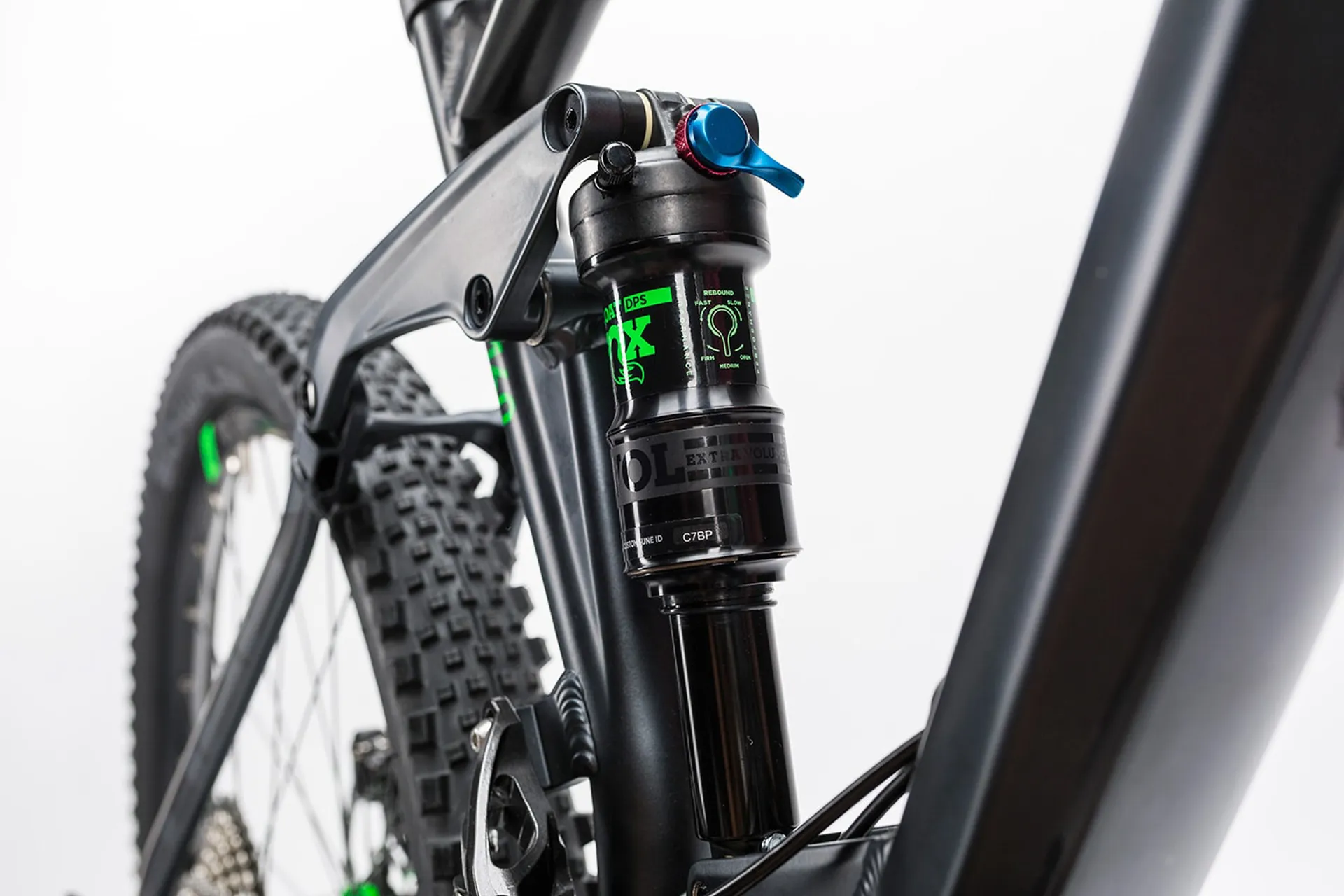

  • SHOCKFox Float DPS, 200x57mm, Open/Medium/Firm Mode, EVOL Air Canister
  • SHOCK HARDWARETop: 30x8mm, Bottom: 22x8mm
  • HEADSETFSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
  • STEMRace Face Ride 35

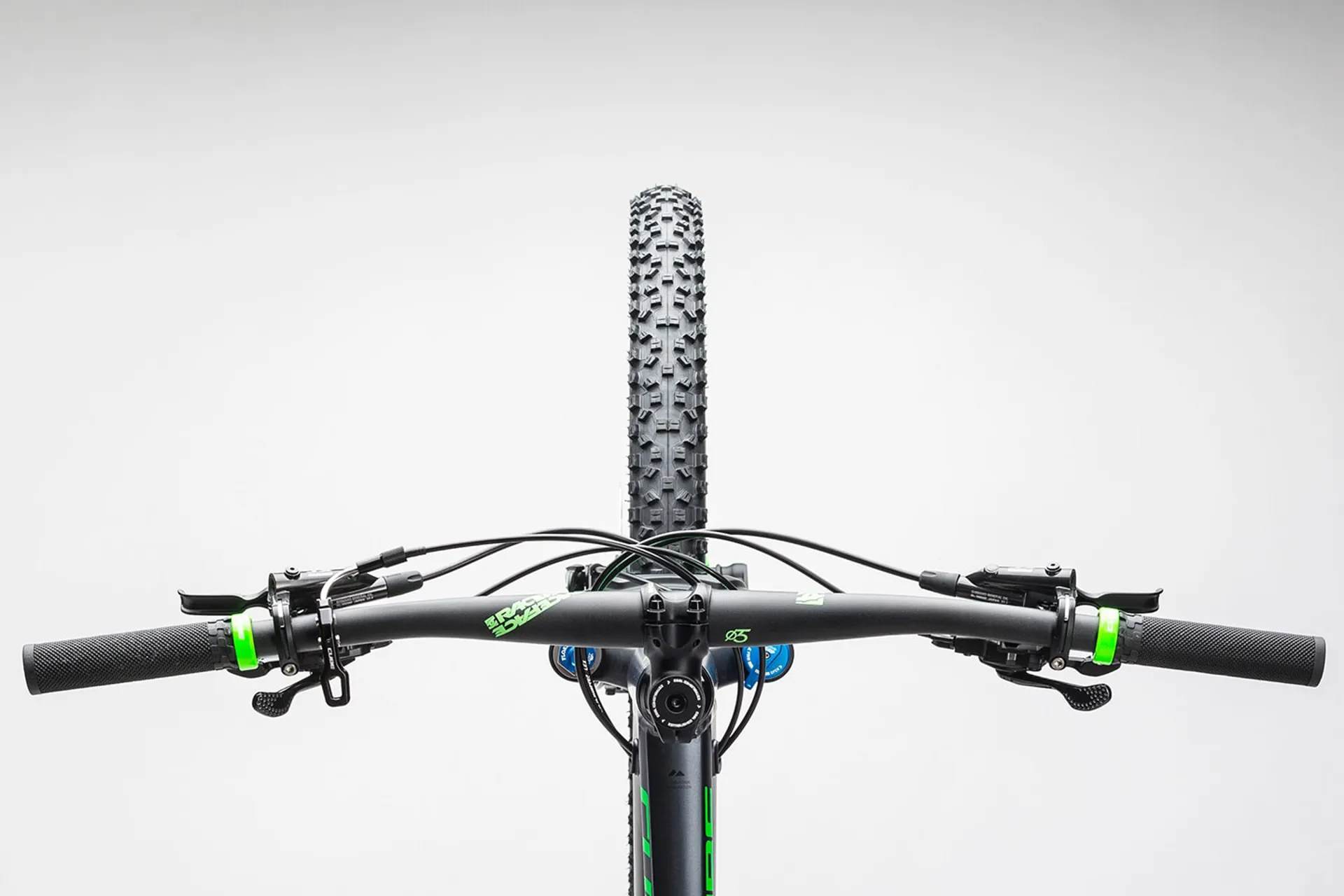

  • HANDLEBARRace Face Ride 35 Riser, 760mm
  • GRIPSCUBE Race Grip, 1-Clamp

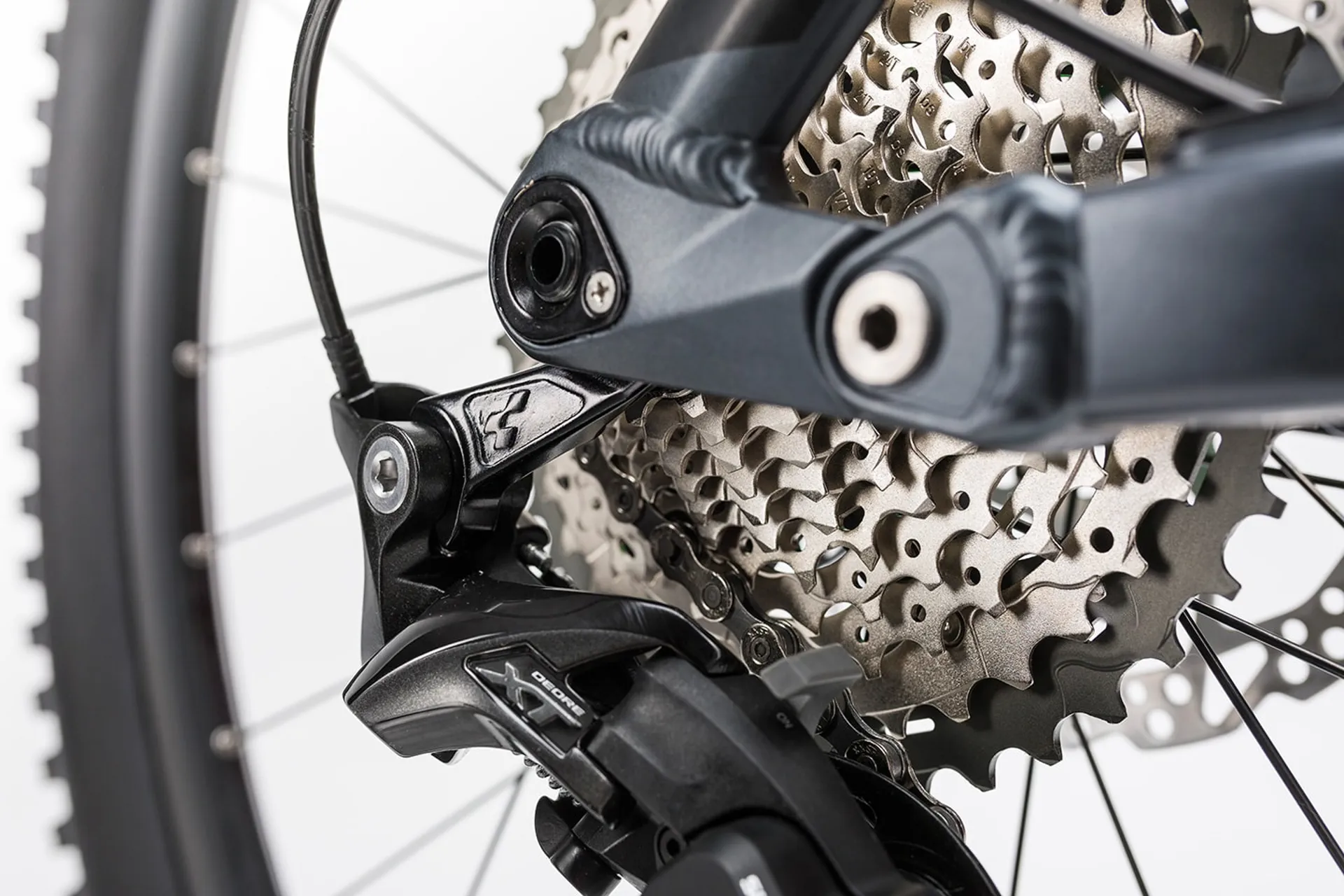

  • REAR DERAILLEURShimano XT RD-M8000-DSGS, ShadowPlus, 11-Speed, Direct Mount
  • FRONT DERAILLEURShimano XT FD-M8020-D, Direct Mount, Side Swing
  • SHIFTERSShimano XT SL-M8000-I, Direct Attach

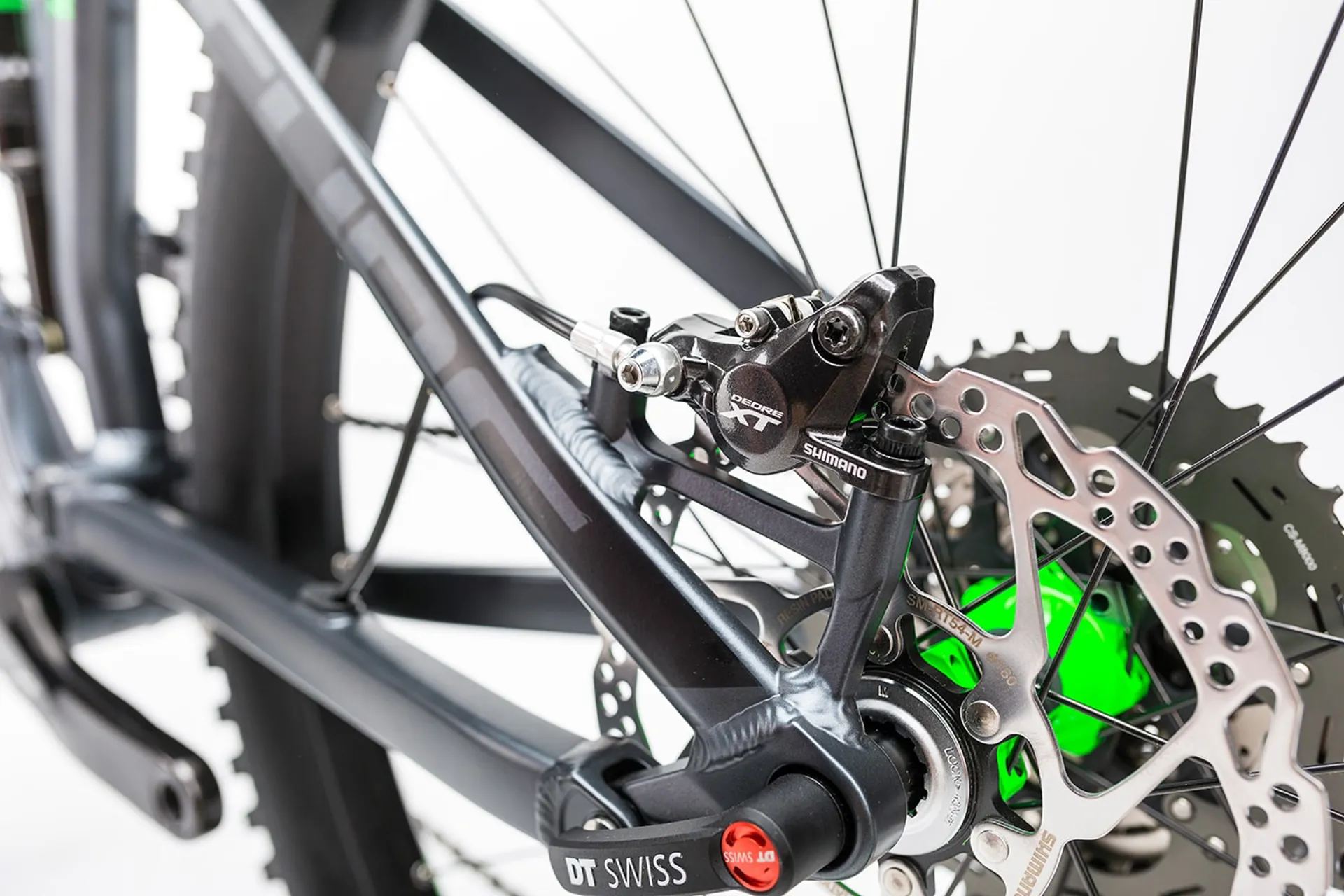

  • BRAKE SYSTEMShimano XT BR-M8000, Hydr. Disc Brake (180/180)

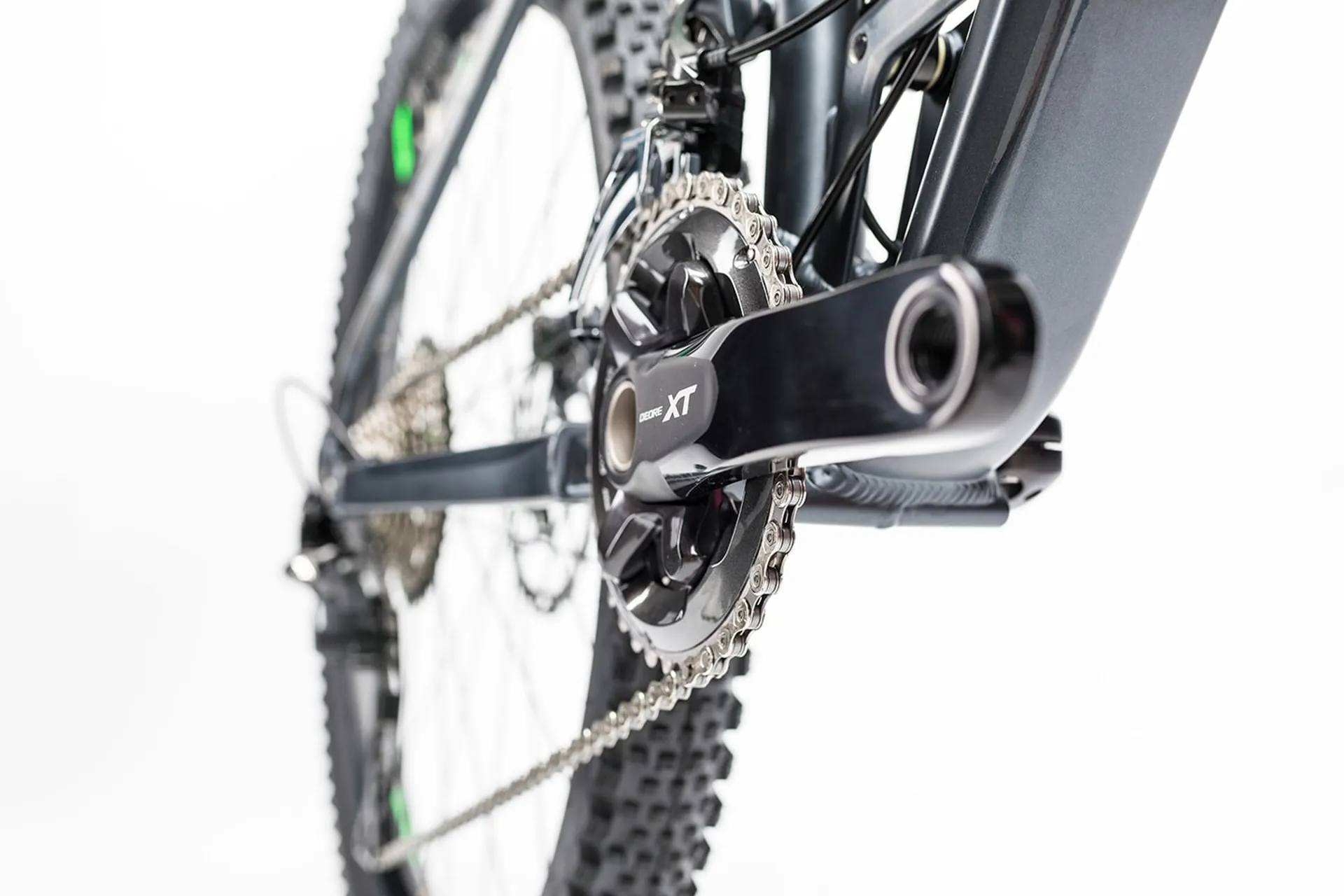

  • CRANKSETShimano XT FC-M8000-B2, Boost, 36x26T, 175mm
  • CASSETTEShimano XT CS-M8000, 11-42T
  • CHAINKMC X11

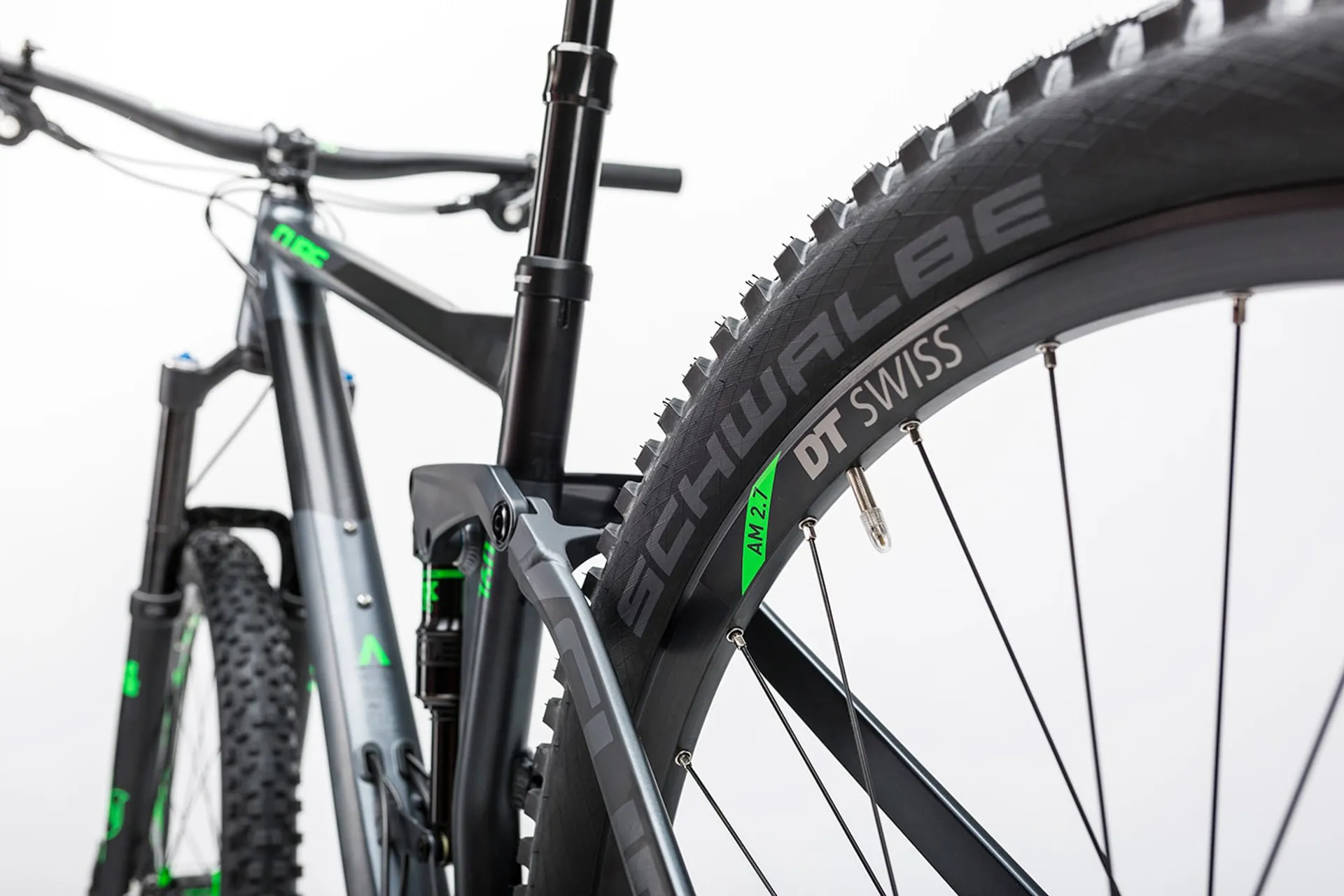

  • WHEELSETDT CSW AM 2.7 Straightpull Wheelset, 28/28 Spokes, 15mm/X12 Boost, 25C, Tubeless Ready
  • FRONT TIRESchwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy
  • REAR TIRESchwalbe Rock Razor Kevlar 2.35, PaceStar, Tubeless Easy
  • SADDLESDG FLY MTN 2

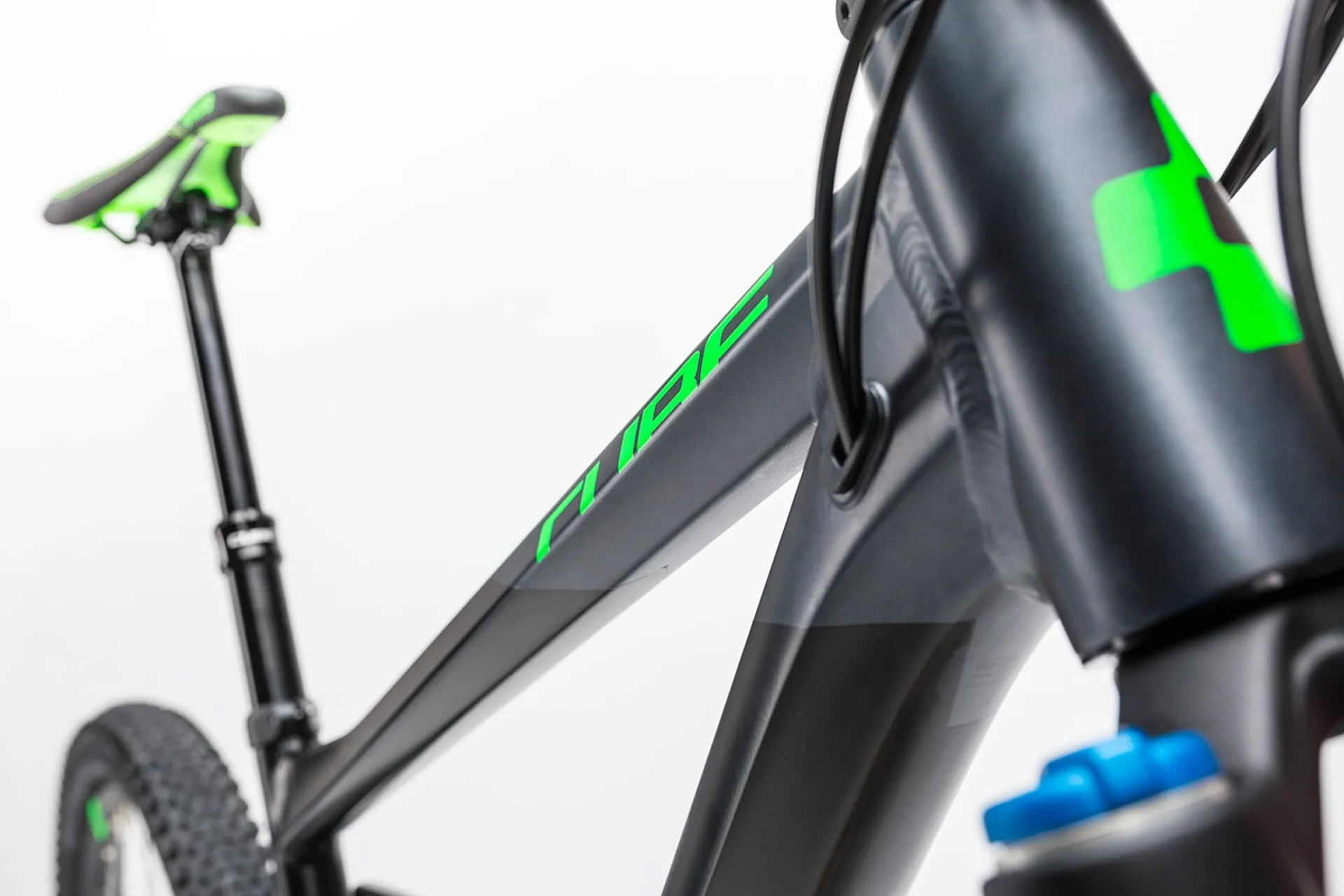

  • SEAT POSTCUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
  • SEATCLAMPCUBE Screwlock 34.9mm
  • WEIGHT13.35 kg
