ONE BIKE - MANY LIVES. - Vector is at home in the city or on open roads winding through the hills.
ONE BIKE - MANY LIVES. - Vector is at home in the city or on open roads winding through the hills.
Orbea

2025 Orbea Vector 30 - Hybrid Bike - Metallic Infinity Green

£849.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

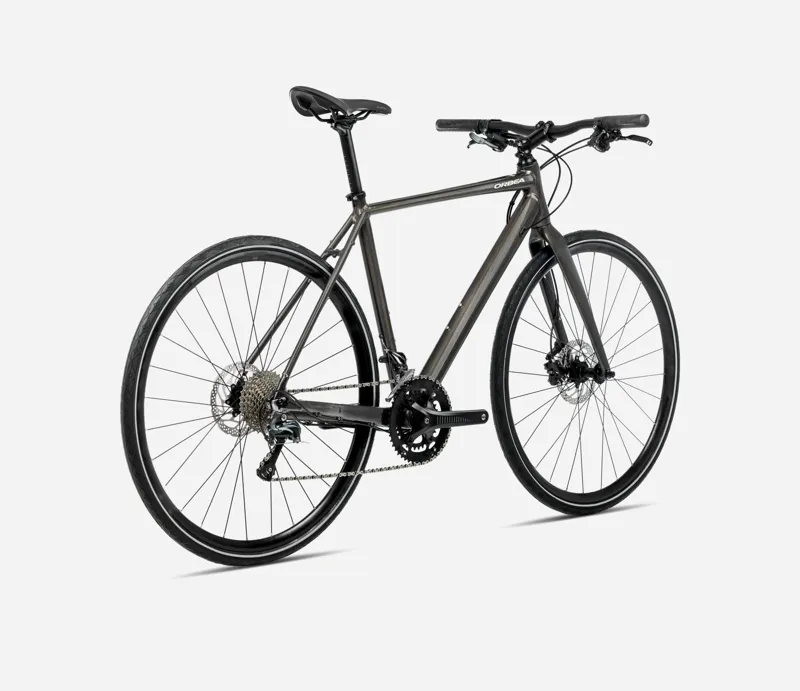

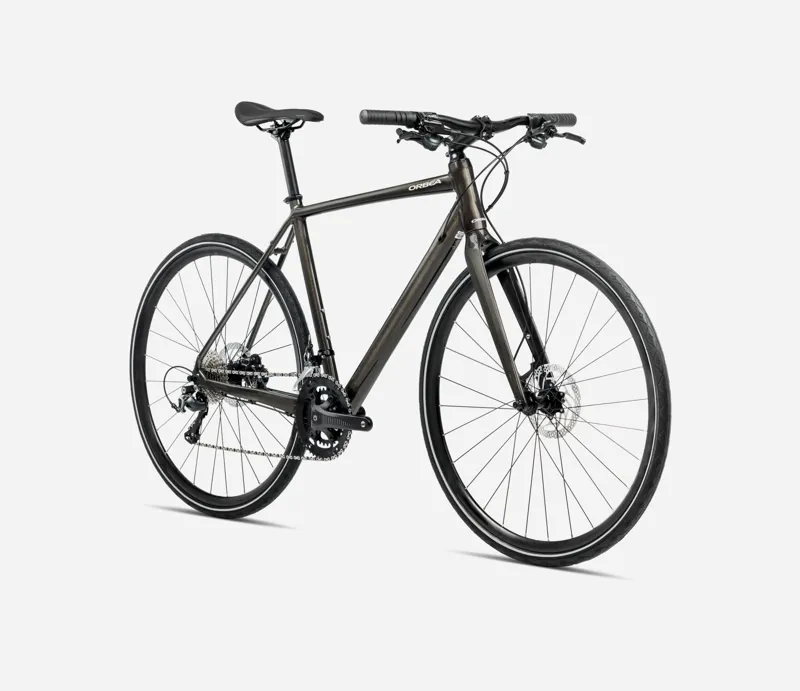

2025 Orbea Vector 30 - Hybrid Bike - Metallic Infinity Green

Season:2025

Brand:Orbea

Code:S406TTCCRI

ONE BIKE - MANY LIVES. - Vector is at home in the city or on open roads winding through the hills. A blend of low weight and durability usually reserved for more expensive machines.

Vector is the perfect tool for doing whatever you like - whether it’s commuting from work or taking a few extra minutes for a detour in the park. Vector is Orbea's new multi-role bike that emphasizes versatility. A companion for every part of your life.
Technical Information
  • Frame
  • Sizes
    XS, Small, Medium, Large, XL
  • Colours
    Moondust Blue (Matt)
    Metallic Burgundy Red (Gloss)
    Metallic Infinity Green (Gloss)
  • Frame
    Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
  • Forks and Shocks
  • Fork
    Speed 400mm Alloy Flat mount
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano Claris BL-R2000 - Shimano TX805 Mechanical Disc
  • Rear Derailleur
    Shimano Claris RD-R2000-GS
  • Front Derailleur
    Shimano Claris FD-R2000-F
  • Shifters
    Shimano Claris SL-R2000
  • Bottom Bracket
  • Crankset
    Orbea, Alloy, 32x48
  • Cassette
    Shimano HG50 11-34t 8-Speed
  • Chain
    KMC X8
  • Cockpit
  • Handlebar
    Alloy, 31.8mm, Riser, 640mm
  • Stem
    Alloy, 7º
  • Grips
  • Headset
  • Wheels
    Alloy, Tubeless, 700c, 21c, 32H
  • Front Wheel Axle
  • Front Tyre
    Kenda K1098 700x32 Reflective Tape
  • Rear Tyre
    Kenda K1098 700x32 Reflective Tape
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    Alloy, 27.2mm, Setback 0
  • Saddle
    Fizik Aliante R5
  • Pedals
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
XS150-160
S160 - 170
M170 - 180
L180-190
XL190-200


Frame Geometry


XSSMLXL
ASeat Tube Length (mm)430480525555580
BSeat Tube Angle75°74°74°73.5°73°
CTop Tube Length (mm)521546559580601
DHead Tube Length (mm)109127150170200
EHead Tube Angle71°71°71°71.5°72°
FFork Rake (mm)5151515151
GTrail (mm)6767676460
HWheel Base (mm)10211037105210631075
IChain Stay Length (mm)435435435435435
JBottom Bracket Drop (mm)7070686868
KStack (mm)535552571592625
LReach (mm)378388395405410
MStand Over Height (mm)738768800824852
NHandlebar Width (mm)640640640640640
OStem Length (mm)
PCrank Length (mm)
QWheel Size700c700c700c700c700c
Professional Opinion
  • Mudguard Compatible
  • Rack Compatible
  • Inner Cable Routing
  • Kickstand
