Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight.
Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight.
Orbea

Orbea Terra H30 Road Bike In Artichoke/Lilac

£2,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

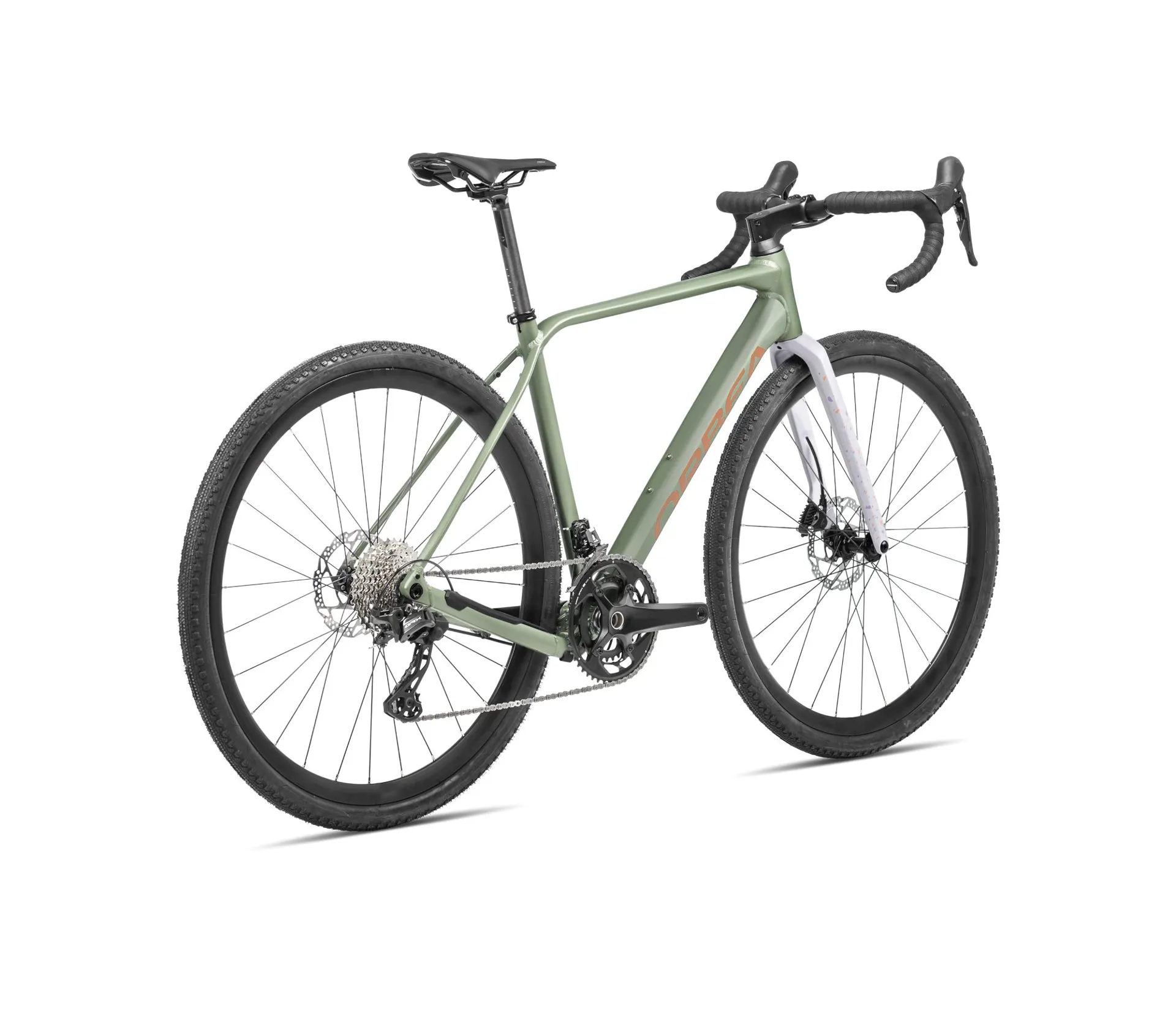

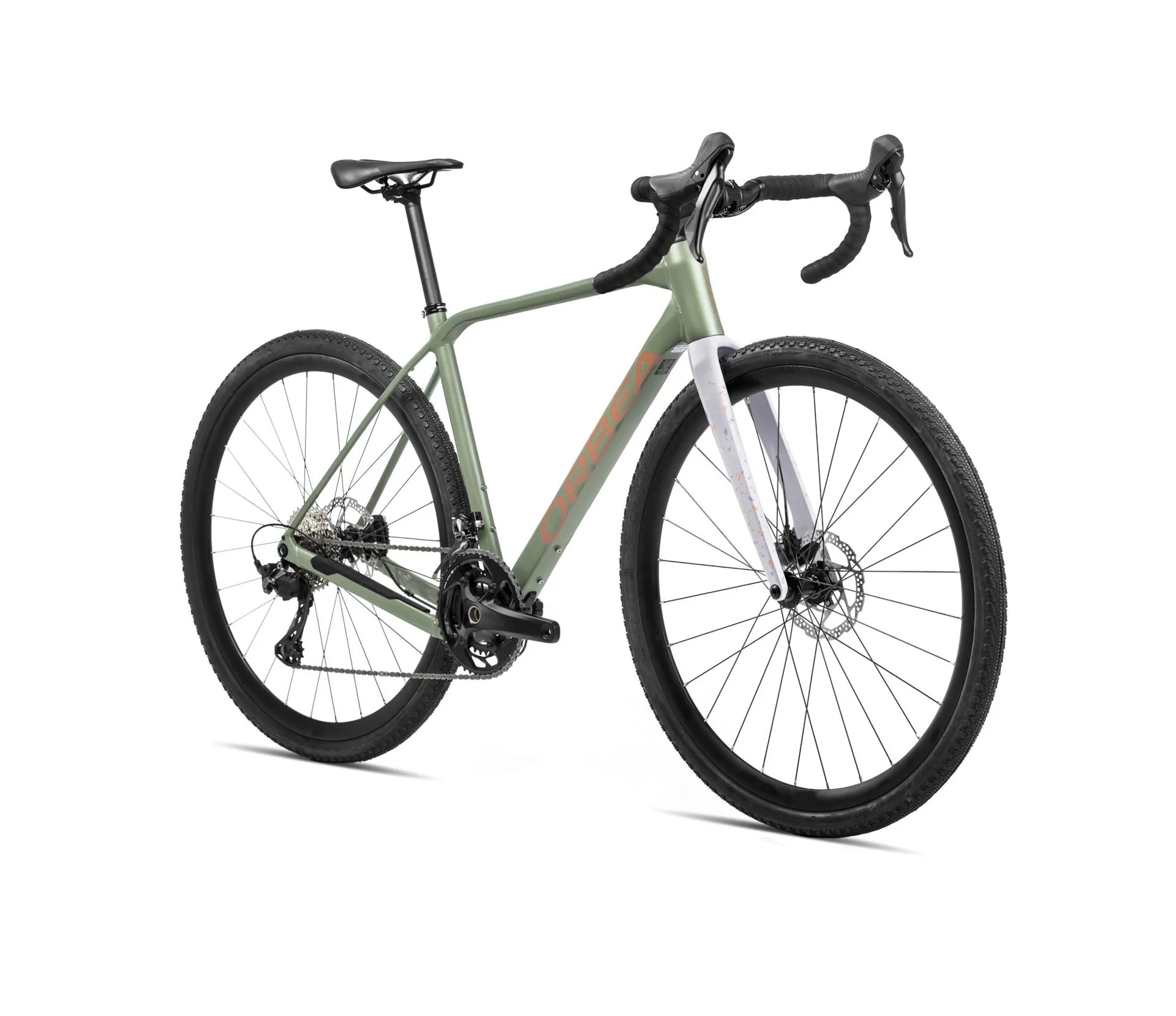

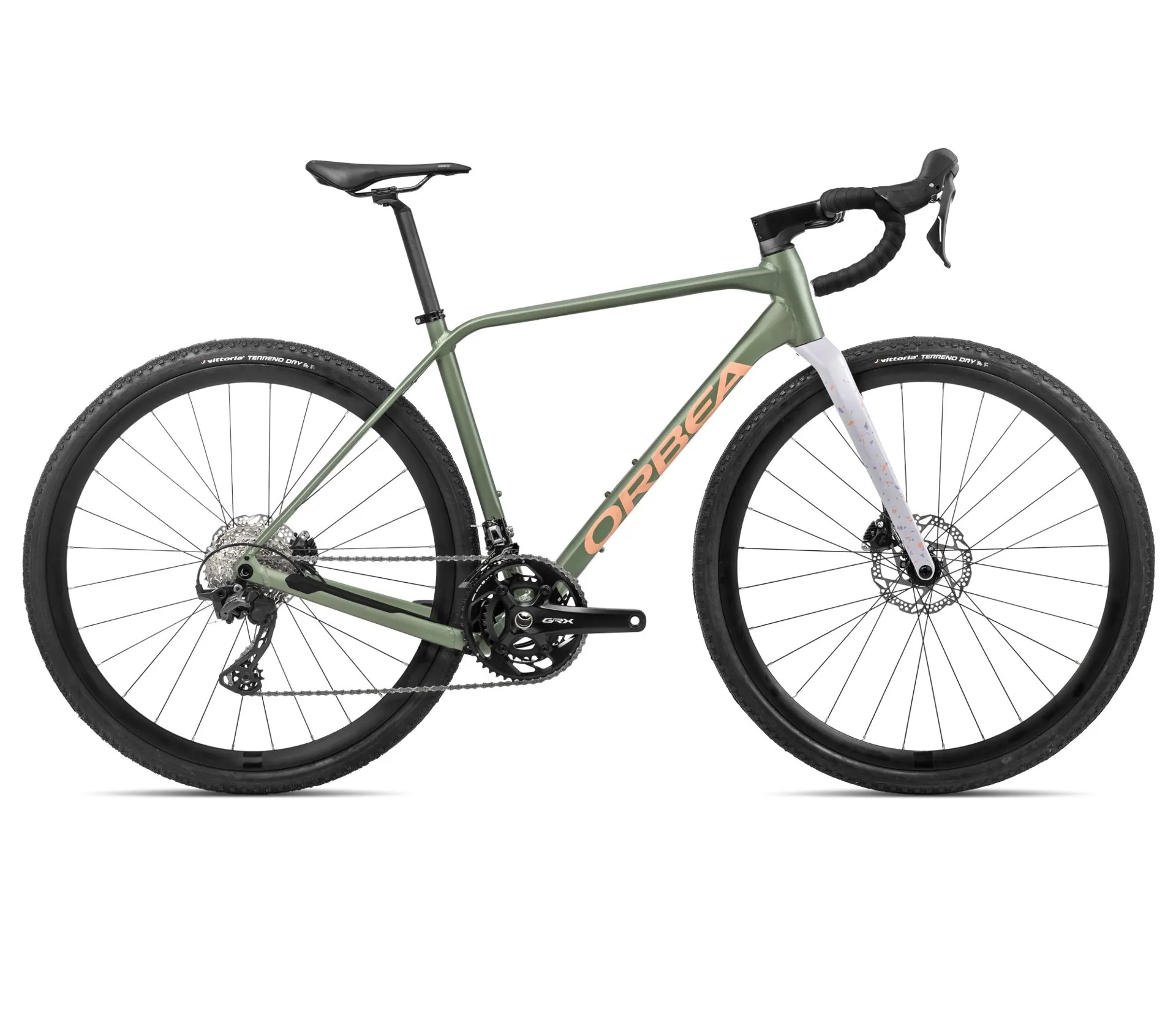

Orbea Terra H30 Road Bike In Artichoke/Lilac

Season:2024

Brand:Orbea

Code:R143TTCCDF

Gravel From The Ground Up - Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Features:

  • Tire Clearance - Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
  • Drivetrain Compatibility - Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tire clearance.
  • Lockr - Our Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or CO2 cartridge, as well as a selection of tools.
Technical Information
  • Frame
    Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
  • Fork
    Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Crankset
    Shimano GRX RX610 30x46t
  • Shifters
    Shimano GRX RX610
  • Cassette
    Shimano HG710 11-36t 12-Speed
  • Rear derailleur
    Shimano GRX RX820
  • Front derailleur
    Shimano GRX RX820
  • Chain
    Shimano M6100
  • Handlebar
    OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 OC Road Performance RP31, Reach 80, Drop 125 £ +0 OC Road Performance RP31-R Riser, Rise 15, Reach 70, Drop 12 £ +0 OC Gravel GR31, Reach 70, Drop 110 £ +0
  • Stem
    OC Road Performance RP21, -6º
  • Brakes
    Shimano RX400 Hydraulic disc
  • Brakes Configuration
    Left Road £ +0
  • Wheels
    Alloy, Tubeless, 700c, 21c OQUO Road Control RC25 PRO £ +269
  • Tyres
    Vittoria Terreno Dry Gravel 700x38c Vittoria Corsa Next 622-28C £ +35 Pirelli P ZERO™ Race TLR 700x30c £ +35 Pirelli Cinturato™ Velo 700x35c TLR £ +35
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
  • Seatpost
    SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle
    Prologo Akero AGX STN size 155mm
  • Mudguard
    Orbea SKS 46S 700x45C Blk+Pirelli Cinturato Gravel H 700x35 £ +35
  • Handlebar Tape
    Orbea Eva
