Gravel from the ground up
Gravel from the ground up
Orbea

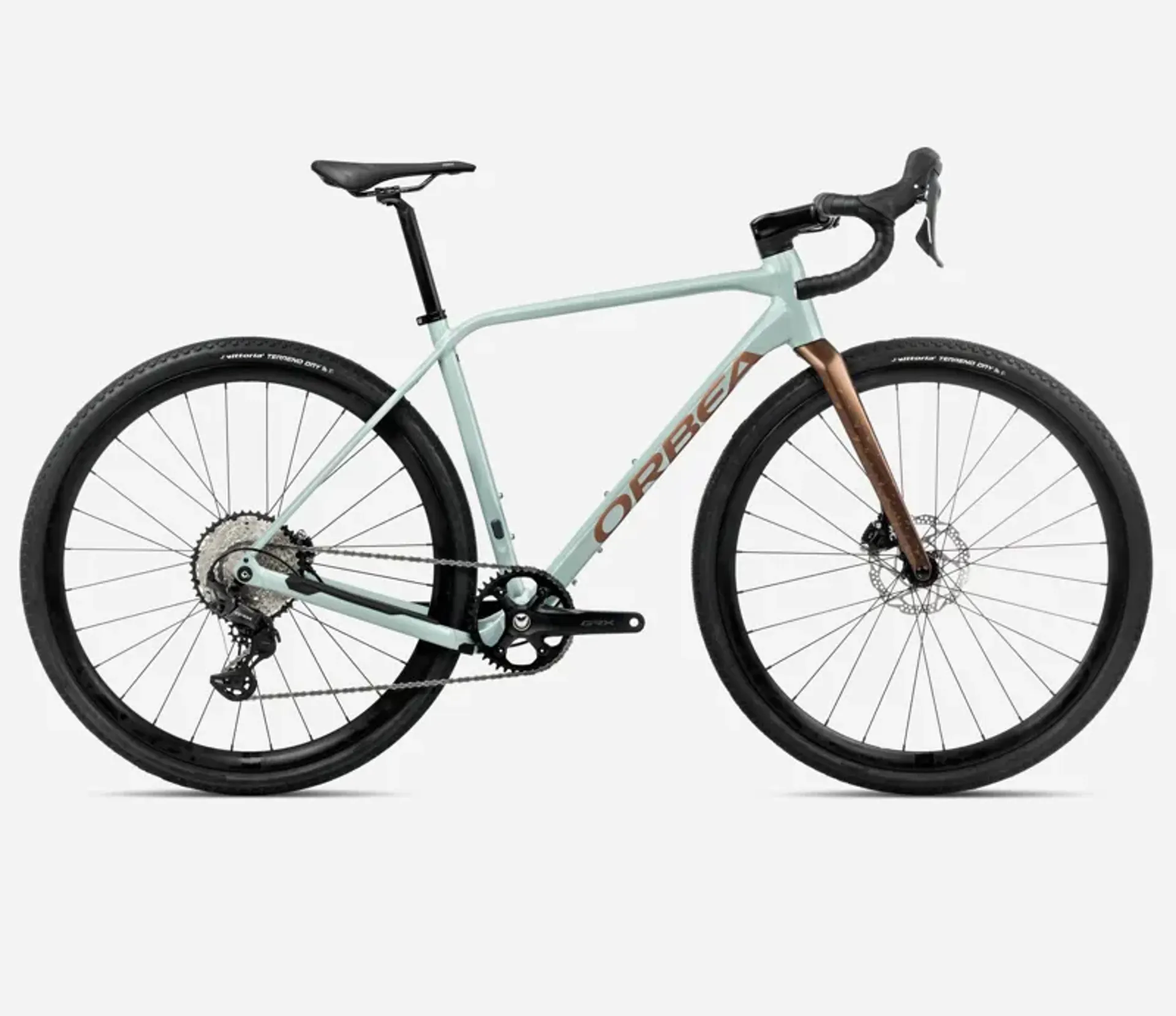

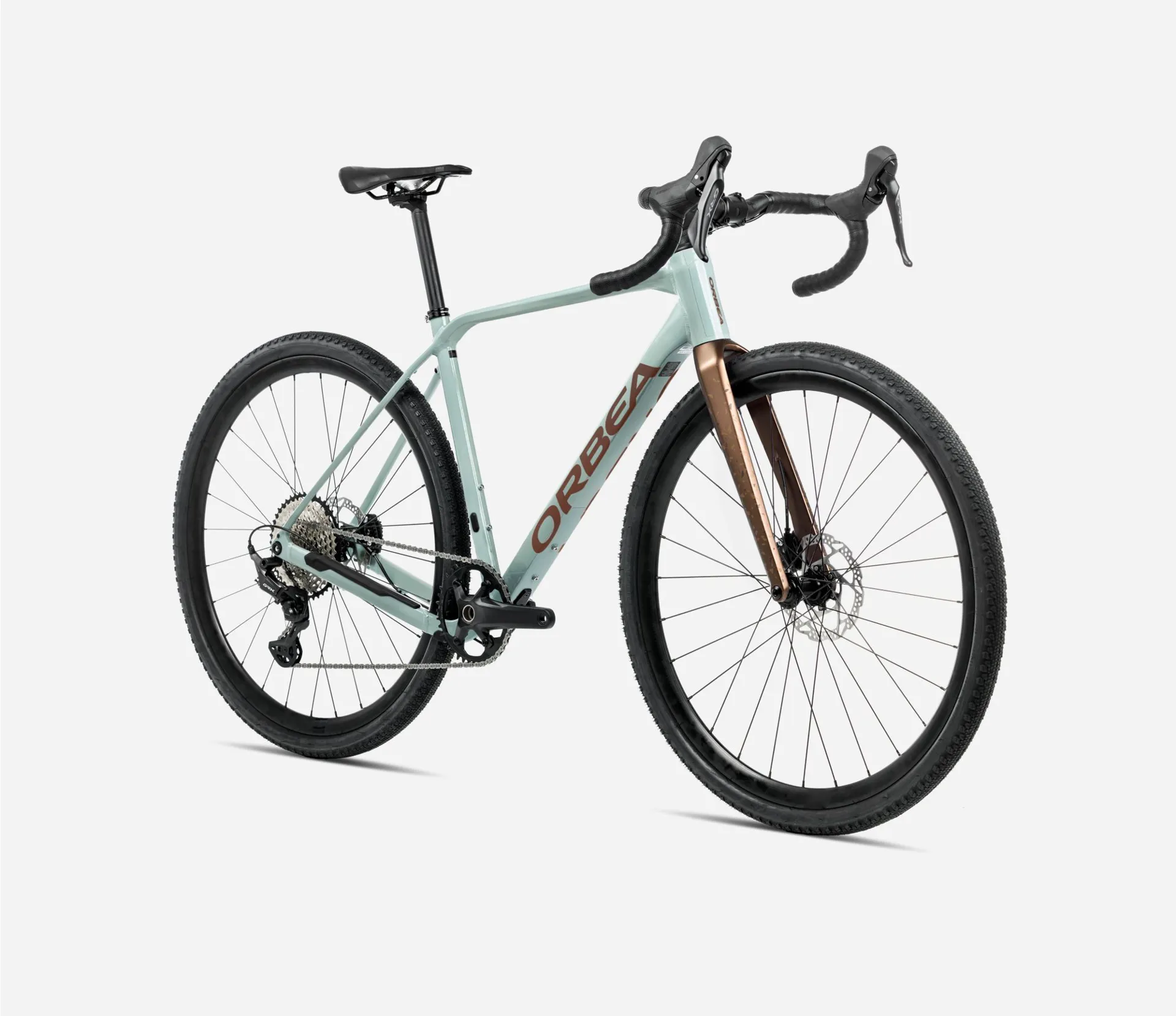

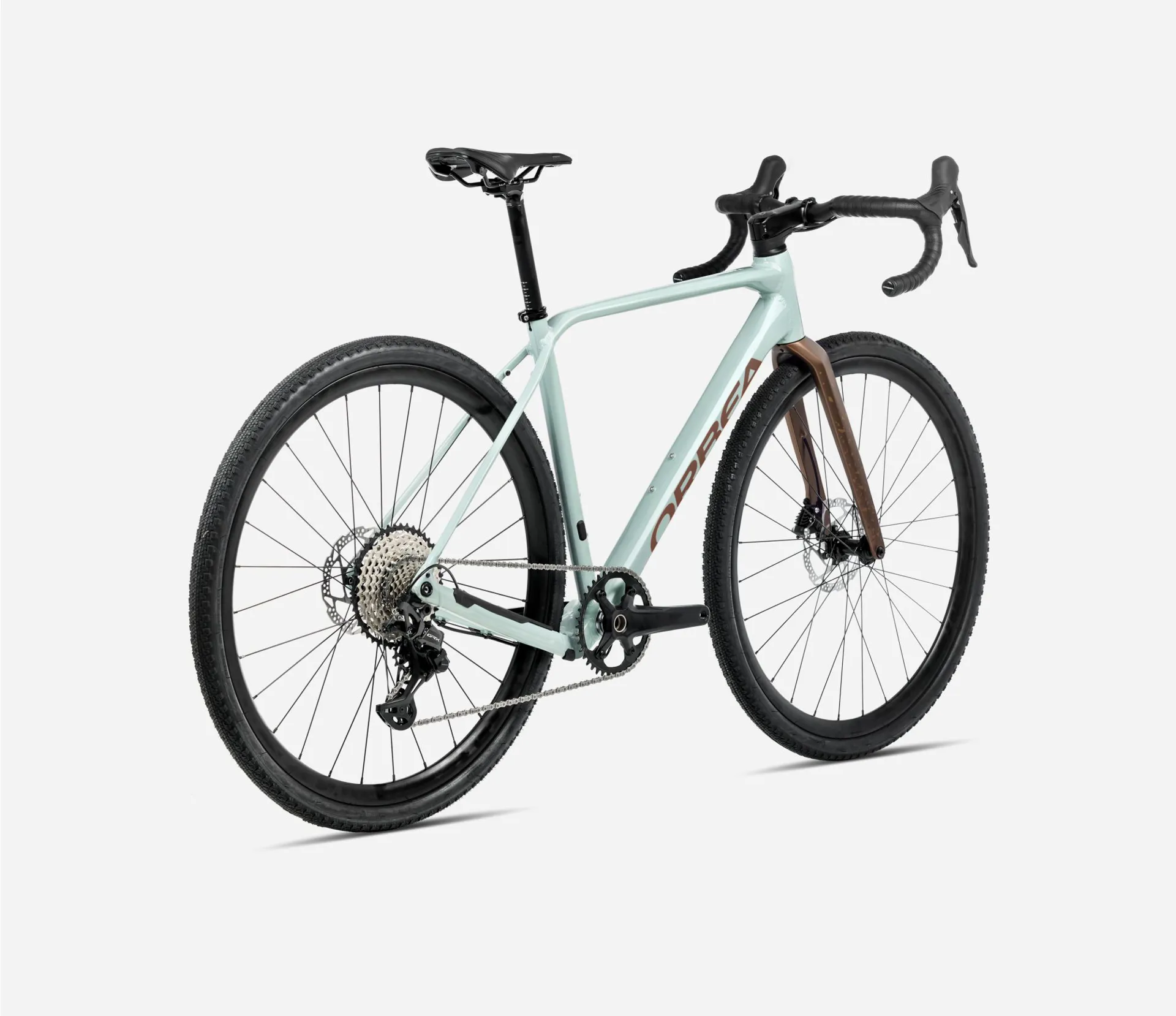

2025 Orbea Terra H30 1x - Gravel Bike - Blue Stone / Copper

£2,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Orbea Terra H30 1x - Gravel Bike - Blue Stone / Copper

Season:2025

Brand:Orbea

Code:S144TTCCDH

Gravel from the ground up

Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Features:
  • Tire clearance - terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
  • Drivetrain compatibility - Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tire clearance.
  • Lockr - Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or co2 cartridge, as well as a selection of tools.
Technical Information
  • Frame
  • Sizes
    XS, S, M, L, XL, XXL
  • Colours
    Artichoke (Matt) / Lilac (Matt)
    Infinity Green / Ivory White (Gloss)
    Blue Stone (Gloss) / Copper (Matt)

  • Frame
    Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system

  • Forks and Shocks
  • Fork
    Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
  • Rear Shock
    N/A

  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A

  • Drivetrain and Brakes
  • Brake System
    Shimano RX400 Hydraulic disc
  • Rear Derailleur
    Shimano GRX RX822 GS
  • Front Derailleur
    N/A
  • Shifters
    Shimano GRX RX610
  • Bottom Bracket
  • Crankset
    Shimano GRX RX610 40t
  • Cassette
    Shimano CS-M7100 10-45t 12-Speed
  • Chain
    Shimano M6100
  • Cockpit
  • Handlebar
    OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
  • Stem
    OC Road Performance RP22, -5º
  • Grips
    Orbea Eva
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Wheels
  • Wheelset
    Alloy, Tubeless, 700c, 21c
  • Front Tyre
    Vittoria Terreno Dry Gravel 700x38c
  • Rear Tyre
    Vittoria Terreno Dry Gravel 700x38c
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle
    Prologo Akero AGX black rails size 155mm
  • Pedals
    Not supplied: Shop pedals here

  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    Front axle - Orbea Thru Axle 12x100mm M12x2 P1 Solid
    Rear Axle - Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
XS155 - 166
S167 - 172
M173-179
L180-185
XL186-191
XXL192 - 207

Frame Geometry

474951535557
ASeat Tube Length (mm)425458491524557590
BSeat Tube Angle74º74º73.5º73.5º73º73º
CTop Tube Length (mm)526539558570590603
DHead Tube Length (mm)110131152178199220
EHead Tube Angle70º70.5º71º71º71.5º72º
FFork Rake (mm)
GTrail (mm)66/7162/6859/6459/6456/6153/58
HWheel Base (mm)102010301039105410631072
IChain Stay Length (mm)430430430430430430
JBottom Bracket Drop (mm)787878767676
KStack (mm)526548570592614636
LReach (mm)375382389395402409
MStand Over Height (mm)704/718731/746759/773788/803815/830838/853
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size700c700c700c700c700c700c

Frame Geometry

47495153555760
Length seat post
Diameter seatpost27.227.227.227.227.227.227.2
Angle stem-5º-5º-5º-5º-5º-5º-5º
Stroke seatpost
Rear suspension travel
Professional Opinion
  • Orbea Thru Axles
  • Carbon Fork
  • Shimano Gravel GRX 1 x Drivetrain
