It may be the Croix de Fer's little brother - but the Genesis CDA is still one mighty bike.
It may be the Croix de Fer's little brother - but the Genesis CDA is still one mighty bike.
Genesis

2025 Genesis CDA 20 - Aluminium Gravel Bike - Florence and The Green Machine

£800.99 £899.99 11% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

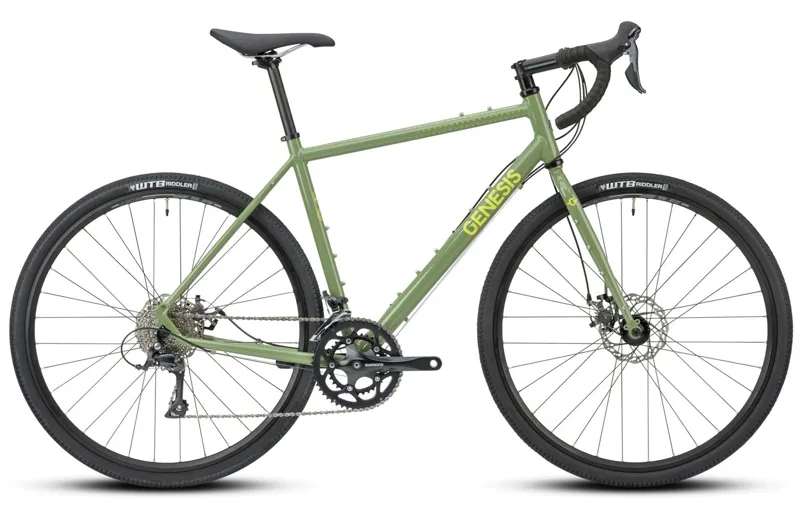

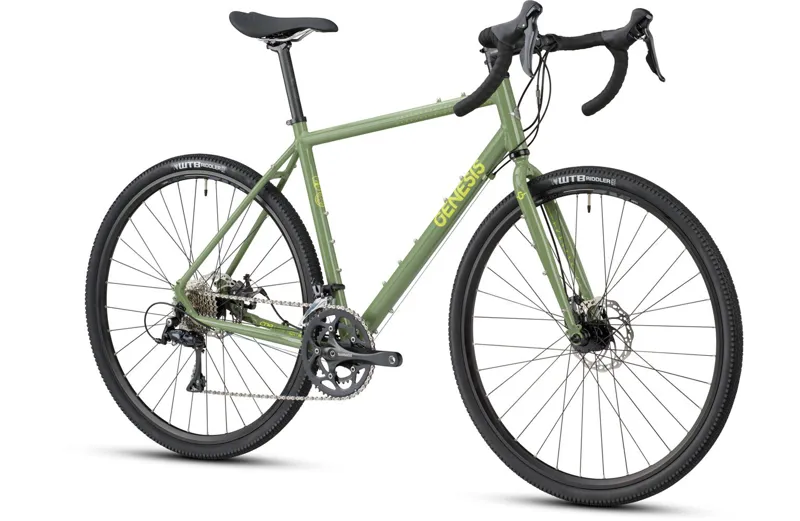

2025 Genesis CDA 20 - Aluminium Gravel Bike - Florence and The Green Machine

Season:2025

Brand:Genesis

Code:VARGN21210

It may be the Croix de Fer's little brother - but our CDA is still one mighty bike!

Sharing the same geometry and legendary handling as its steel counterpart, the CDA swaps out steel for aluminium and in turn passes a nice cost saving on to you.

For a little more cash, the CDA 20 gets you an upgrade to Shimano's excellent 9-speed Sora levers and mechs.

Cable disc brakes and 37mm tyres make it the perfect entry into the world of adventure bikes.

The fact that it's compatible with a pannier rack and mudguards also makes it ideal as an everyday commuting workhorse, or winter training machine

Technical Information
  • Frame
  • Sizes
    X-Small (470mm), Small (500mm), Medium (530mm), Large (550mm), X-Large (580mm)
  • Colours
    Florence & The Green Machine
  • Frame

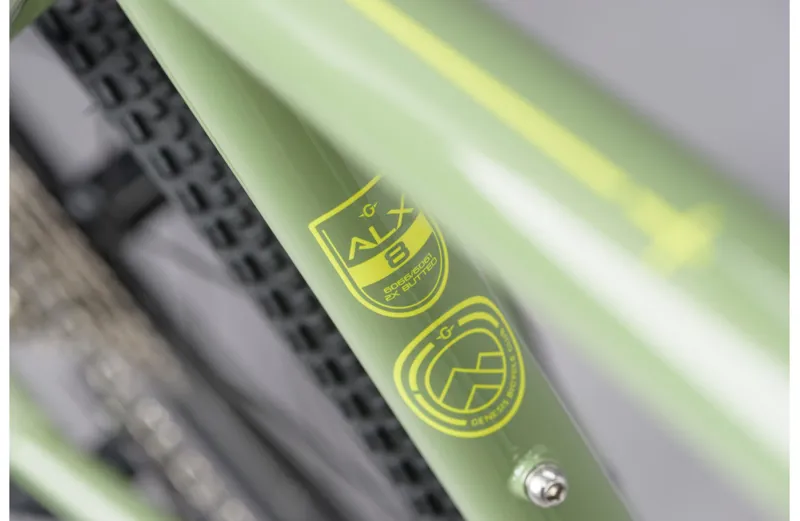

    ALX8 6066/6061-T6 Double-Butted Aluminium
  • Forks and Shocks
  • Fork
    Genesis Chromoly With Anything Cage Mounts
  • Rear Shock
    N/A
  • eSystem
  • Motor
    N/A
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    N/A
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano Sora ST-R3000 9spd / Promax DSK-717 Road, Promax DT-160H, 160mm, 6 Bolt
  • Rear Derailleur

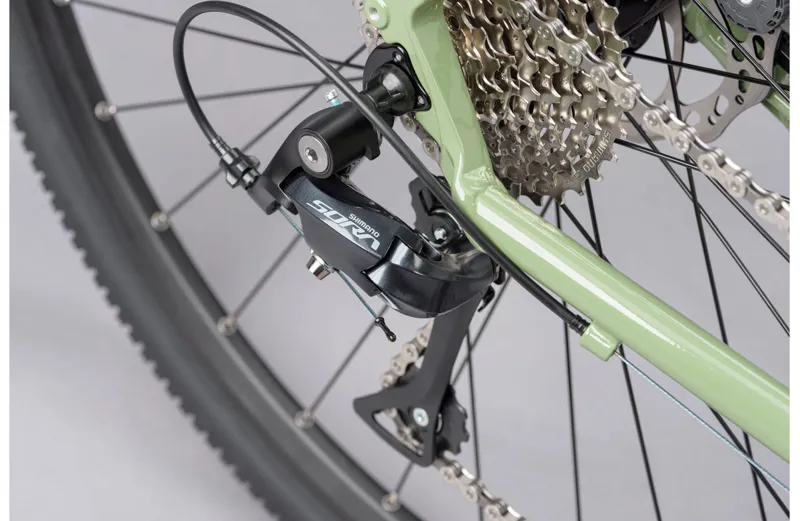

    Shimano Sora RD-R3000 9spd
  • Front Derailleur
    Shimano Sora FD-R3000
  • Shifters

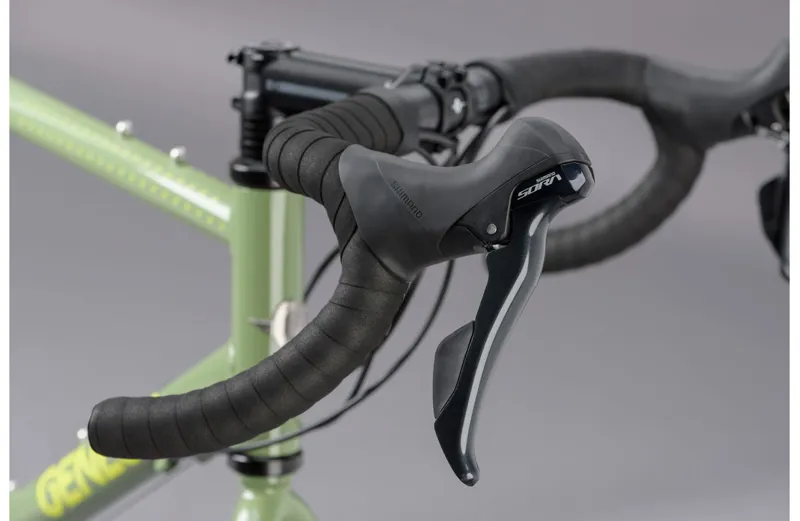

    Shimano Sora ST-R3000 9spd
  • Bottom Bracket
    Shimano BB-ES300
  • Crankset
    Shimano FC-R345 50/34t XS/S/M = 170mm, L/XL = 175mm
  • Cassette
    Shimano CS-HG400-9 11-34t 9spd
  • Chain
    KMC X9
  • Cockpit
  • Handlebar
    Genesis Alloy, 16 Deg Flare, XS = 400mm, SM/M = 420mm, L-XL = 440mm
  • Stem
    Genesis Alloy, 31.8mm, -6 Deg, 100mm
  • Grips
    Genesis Vexgel
  • Headset
    PT-1606 EC34 Upper / EC34 Lower
  • Wheels
  • Front Hub
    KT-K68, 6 Bolt, 32h
  • Rear Hub
    KT-K68, 6 Bolt, 32h
  • Rims
    Shining DB-31, 32h
  • Front Tyre

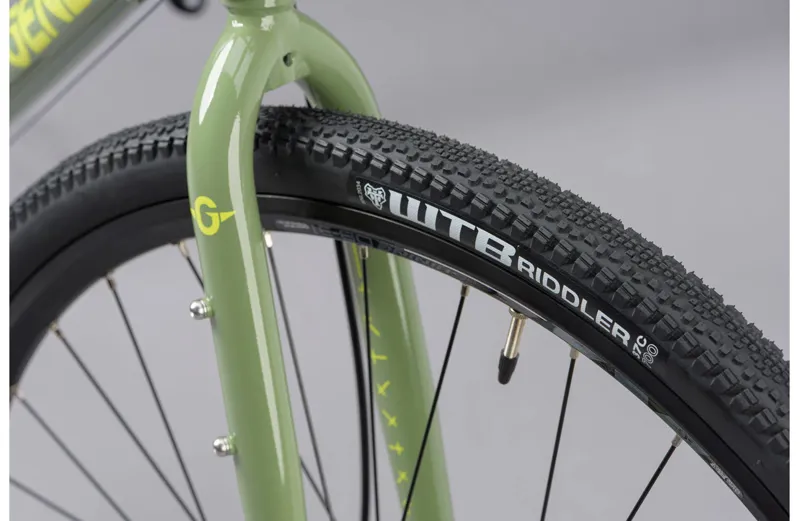

    WTB Riddler Comp 700x37c
  • Rear Tyre
    WTB Riddler Comp 700x37c
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    Genesis Alloy 27.2 X 350mm
  • Saddle
    Genesis Adventure
  • Pedals
    NW-91K With Cage
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)Rider height (feet)
XS156 - 164
S164 - 172
M172 - 180
L178 - 186
XL186 - 194

Frame Geometry


XSSMLXL
ASeat Tube Length (mm)470500530550580
BSeat Tube Angle7473.573.57372.5
CTop Tube Length (mm)524544561582605
DHead Tube Length (mm)115135155175195
EHead Tube Angle717171.571.572
FFork Rake (mm)
GTrail (mm)5050505050
HWheel Base (mm)10071023103510521063
IChain Stay Length (mm)430430430430430
JBottom Bracket Drop (mm)7373737373
KStack (mm)553572593612633
LReach (mm)365375385395405
MStand Over Height (mm)761784808826850
NHandlebar Width (mm)400420420440440
OStem Length (mm)100100100100100
PCrank Length (mm)170170170175175
QWheel Size700C700C700C700C700C
