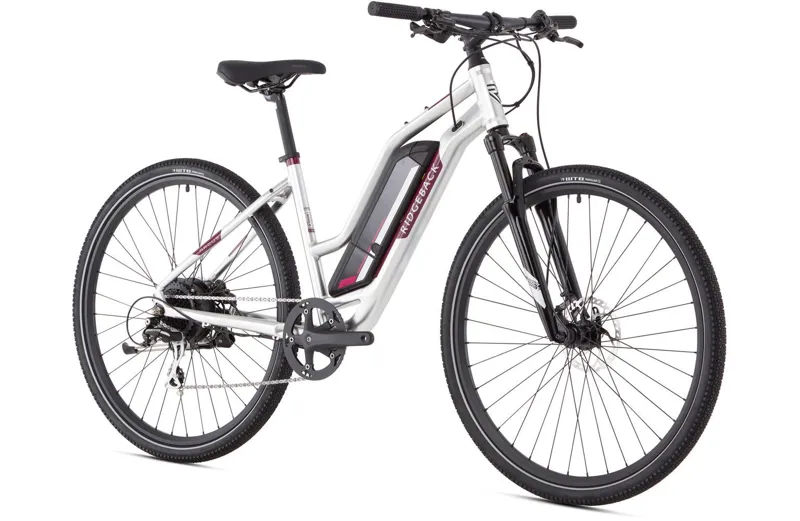

Ridgeback Arcus 1 - Open Frame - Electric Hybrid Bike - Grey

Brand:Ridgeback

Code:VARRB21920

The Ridgeback Arcus 1 is an affordable and rugged E-bike, built for a comfortable ride on road and gravel.

The Sportdrive M155 motor offers 250 watts of pedal assist and up to 40nm of torque, all the way up to 25km/h making climbs disappear and maintaining momentum on flatter roads.

A suspension fork with 63mm of travel is paired with wide 45mm tyres to provide comfort over rough roads, and the capability to head off the beaten track on towpaths and gravel tracks.

Hydraulic disc brakes keep everything under control in this great value package.

Technical Information
  • Frame
  • Sizes
    Small, Medium
  • Colours
    Silver
  • Frame
    Alloy
  • Forks and Shocks

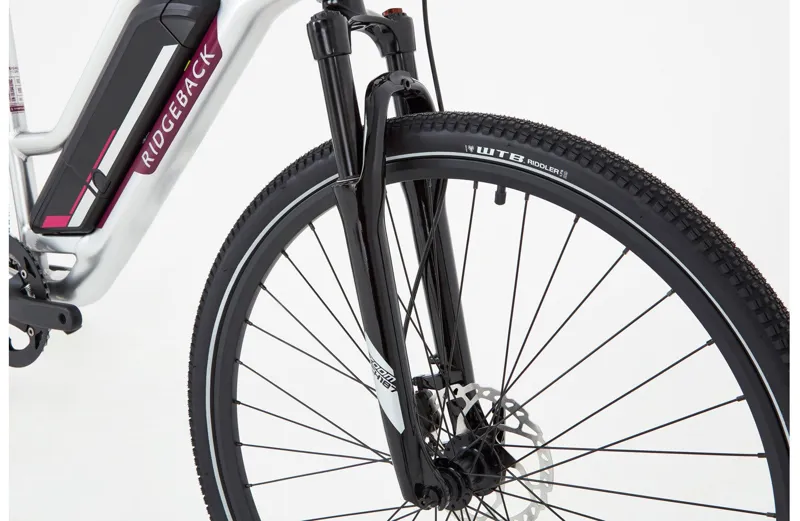

  • Fork
    RST Volant 63mm Travel
  • Rear Shock
    N/A
  • eSystem
  • Motor
    Sportdrive M155 250W 40Nm
  • Controller
    N/A
  • Display
    N/A

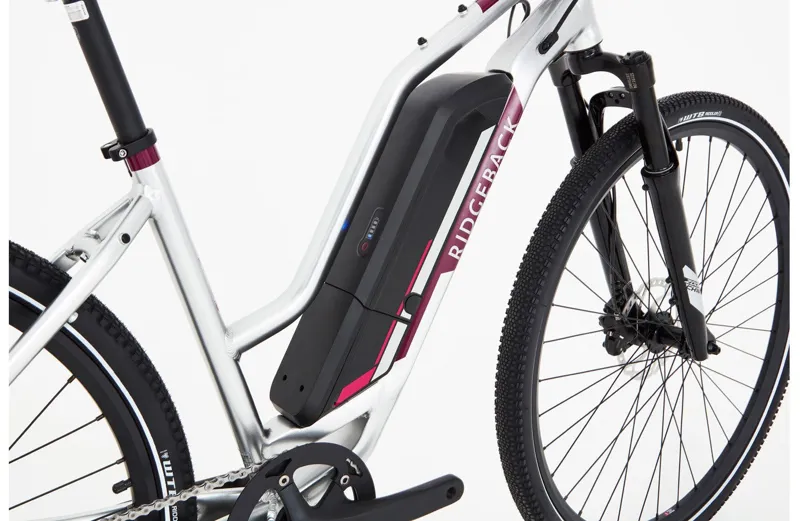

  • Battery Type
    Sportdrive 313wh
  • Battery Integration
    External
  • Conectivity
    N/A
  • Charger
    Sportdrive 2AH
  • Drivetrain and Brakes
  • Brake System
    Alhonga AHJ-OD05 Hydraulic Disc Brake
  • Rear Derailleur
    microSHIFT Mezzo RDM36L 8 Speed
  • Front Derailleur
    N/A
  • Shifters
    microSHIFT Mezzo TS39-8R 8 Speed
  • Bottom Bracket
  • Crankset
    Sportdrive 42T / 170 mm
  • Cassette
    microSHIFT Mezzo CSH082 11-34T 8 Speed
  • Chain
    KMC X8E
  • Cockpit
  • Handlebar
  • Stem
    Alloy 65 mm +9deg
  • Grips
    Ridgeback Grips
  • Headset
    FSA HS NO.10 1-1/8 inch
  • Wheels
  • Front Hub
    KT-TC7F

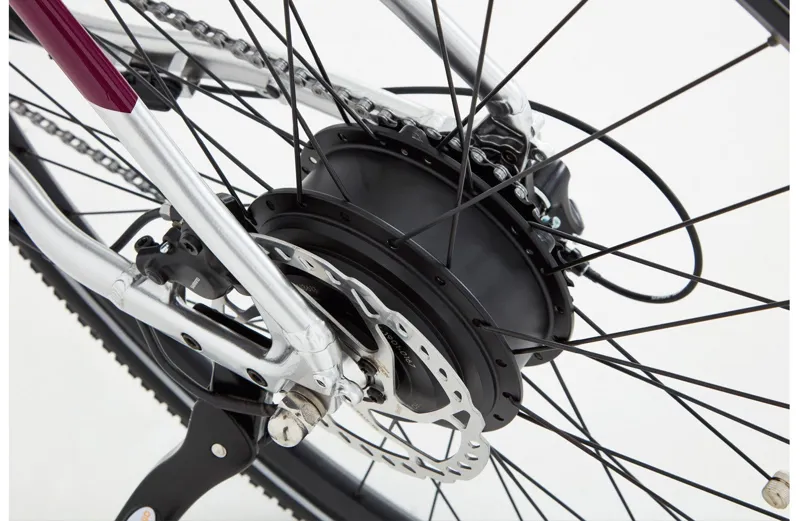

  • Rear Hub
    Sportdrive M155
  • Rim
    Alloy J19SZ

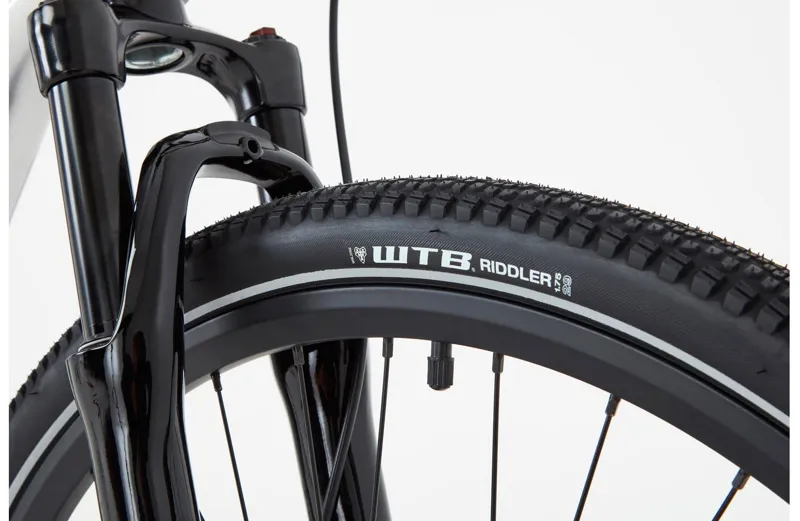

  • Front Tyre
    WTB Riddler 700 x 45c Reflex
  • Rear Tyre
    WTB Riddler 700 x 45c Reflex
  • Finishing Kit
  • Seatpost
    Alloy 27.2 x 350 mm

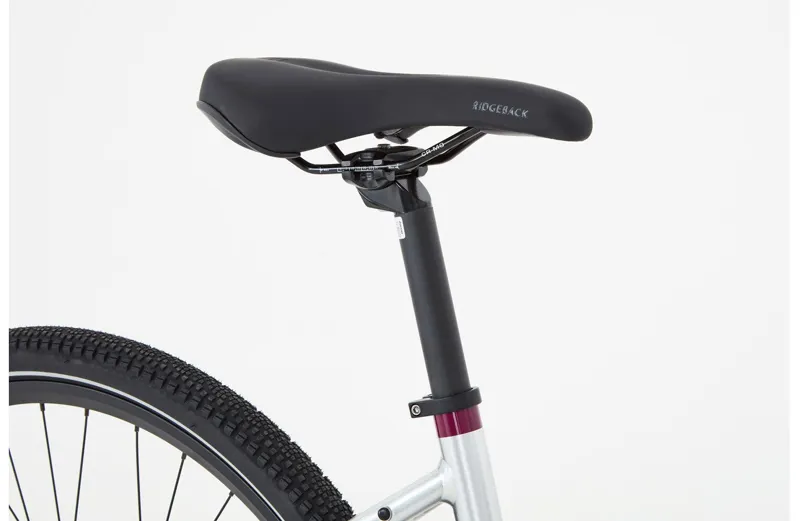

  • Saddle
    Ridgeback
  • Pedals
    Resin Metro
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
