The Pinarello Nytro Road E5 Disc is a revolutionary e-road bike designed to elevate your riding experience.
The Pinarello Nytro Road E5 Disc is a revolutionary e-road bike designed to elevate your riding experience.
Pinarello

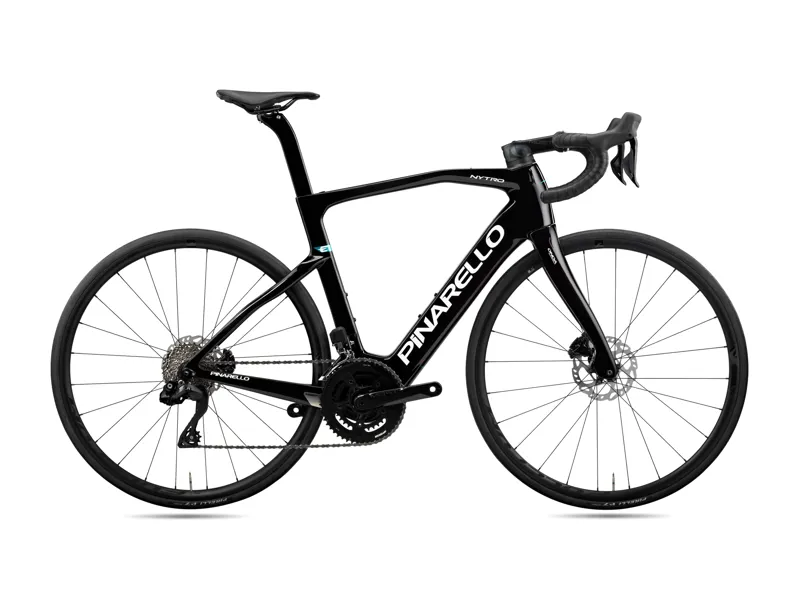

Pinarello Nytro E5 Disc - Electric Road Bike - Brilliant Black

£7,000.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Pinarello Nytro E5 Disc - Electric Road Bike - Brilliant Black

Season:2025

Brand:Pinarello

Code:C1767154093-197

The Pinarello Nytro Road E5 Disc is a revolutionary e-road bike designed to elevate your riding experience. Combining lightweight carbon construction, powerful pedal assist, and premium components, this bike is built for riders who demand performance, efficiency, and style on every ride. Featuring a TQ-HPR50 motor that delivers up to 300W of assistance and 50Nm of torque, the Nytro ensures a natural and silent riding experience. Its 360Wh integrated battery provides support for extensive rides. Constructed with Toray T700 carbon fiber, the frame offers an optimal balance of stiffness and vibration absorption for enhanced comfort. The bike is equipped with Shimano's 105 Di2 groupset and Fulcrum Racing 500 wheels, and is available in either 'Brilliant Black' or 'Electro White'.

Lightweight Carbon Frame for Superior Agility

Crafted from TorayCa T700 carbon fiber, the Nytro Road E5 Disc offers an optimal balance of strength, stiffness, and lightweight efficiency. Its aerodynamic design and endurance geometry ensure maximum comfort and responsiveness, making it the perfect companion for long rides and challenging climbs.

TQ-HPR50 Drive Unit & 360 Wh Integrated Battery

The Nytro Road E5 Disc is powered by the TQ-HPR50 Drive Unit, delivering smooth, natural pedal assist with 50Nm of torque. Whether you’re conquering steep gradients or extending your ride distance, the 360 Wh integrated battery provides the endurance you need to push beyond limits.

12-Speed Shimano 105 Di2 Electronic Groupset

Precision shifting is at your fingertips with the Shimano 105 Di2 12-speed electronic groupset. This state-of-the-art drivetrain ensures seamless and ultra-reliable gear changes, allowing you to maintain optimal cadence and efficiency on any terrain.

Wheel Options for Every Ride Style

The Nytro Road E5 Disc is available with two high-performance wheelsets, tailored to each colorway:

  • Brilliant Black – Equipped with Fulcrum Racing 500 wheels, providing excellent aerodynamics and durability for high-speed road performance.
  • Electro White – Comes with DT Swiss A1800 wheels, offering lightweight efficiency and stability for endurance rides.

Striking Color Options

The Pinarello Nytro Road E5 Disc is available in two stunning finishes:

  • Electro White – A sleek, modern finish that radiates performance and sophistication.
  • Brilliant Black – A bold, timeless colorway that exudes power and elegance.

Why Choose the Pinarello Nytro Road E5 Disc?

The Nytro Road E5 Disc is the perfect blend of performance, technology, and style, delivering an exceptional riding experience for road cyclists looking for an extra boost. Whether you're tackling steep climbs, extending your endurance, or riding with a new level of confidence, this bike offers unmatched quality and cutting-edge e-bike innovation.

Unleash your full potential with the Pinarello Nytro Road E5 Disc – the future of e-road cycling.

Technical Information
  • Frame
  • Sizes
    460 mm, 470mm, 500 mm, 530 mm, 550 mm, 575 mm, 600 mm
  • Colours
    Brilliant Black or Electro White
  • Frame
    TorayCa T700 UD, TiCR™ Cable Routing
  • Forks and Shocks
  • Fork
    Nytro Onda carbon fork with forkflap™, tapered head tube
  • Rear Shock
    N/A
  • eSystem
  • Motor
    TQ-HPR50 Drive Unit
  • Controller
    N/A
  • Display
    Integrated and Compatible with Ant+ Bike Computers
  • Battery Type
    360 Wh Integrated Battery
  • Battery Integration
    Internal
  • Connectivity
    N/A
  • Charger
    N/A
  • Drivetrain and Brakes
  • Brake System
    Shimano 105 2 pistons caliper (160mm / 160mm)
  • Rear Derailleur
    Shimano 105 Di2 12S
  • Front Derailleur
    N/A
  • Shifters
    Shimano 105 Di2 12S
  • Bottom Bracket
    In Motor
  • Crankset
  • 170mm Crank length
    460 mm, 470mm, 500 mm, 530 mm frame sizes
  • 175mm Crank length
    550 mm, 575 mm, 600 mm frame sizes
  • Cassette
    Shimano 105 Di2 12S
  • Chain
    Shimano 105 Di2 12S
  • Cockpit
  • Handlebar
    MOST Jaguar Aero XA TiCR
  • Stem
    MOST Tiger Aero Alu TiCR
  • Grips
    MOST bar tape
  • Headset
  • Wheels
  • Wheelset
    Fulcrum Rapid Red 500 (Brilliant Black) / DT Swiss A1800 wheels (Electro White)
  • Front Tyre
  • Rear Tyre
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
  • Saddle
    Pinarello Lynx Ultra Superflow
  • Pedals
    Not supplied: Shop pedals here
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Extras
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

The choice of an exact frame size is a very complex and delicate topic which is not always straightforward without seeing an athlete on his/her bike. In addition to this, Pinarello offers a wide range of frame options and components that offer both very accurate position options but also require in-depth evaluations.

In addition to this, as more and more bikes are beginning to be fitted with an integrated handlebar and stem setup it is even more important to discuss sizing with us. Getting this measurement wrong can result in an incorrect position on the bike and an incur an expensive cost when having to replace the handlebar / stem combo for a correctly sized version.

If you have any questions specific to sizing, call our Cramlington store and speak with our bike fitter who will be able to help with an initial sizing before purchasing your bike. Once purchased we are happy to supply a full bike fit when you collect your new Pinarello from in store.

Get in touch with one of our stores (Newcastle - 0191 276 0941 or Cramlington - 01670 712 536) to find out how we can help.

Frame Geometry


460

470

500

530

550

575

600

ASeat Tube Length (mm)460470500530550575600
BSeat Tube Angle74.5°74°73.7°73.4°73°72.9
CTop Tube Length (mm)515532545560580595
DHead Tube Length (mm)130140151170200225
EHead Tube Angle71.75°72°72.25°72.5°72.75°73°
FFork Rake (mm)47474747474747
GTrail (mm)
HWheel Base (mm)
IChain Stay Length (mm)420420420420420420420
JBottom Bracket Drop (mm)72727272727272
KStack (mm)545.4555.8567.2586.2615.8640.6
LReach (mm)358.4369.7377.5384.2391.4398
MStand Over Height (mm)
NHandlebar Width (mm)420420440440460460460
OStem Length (mm)80809090100110120
PCrank Length (mm)170170170170175175175
QWheel Size700c700c700c700c700c700c700c
Professional Opinion
  • Carbon T700 UD
    The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun.

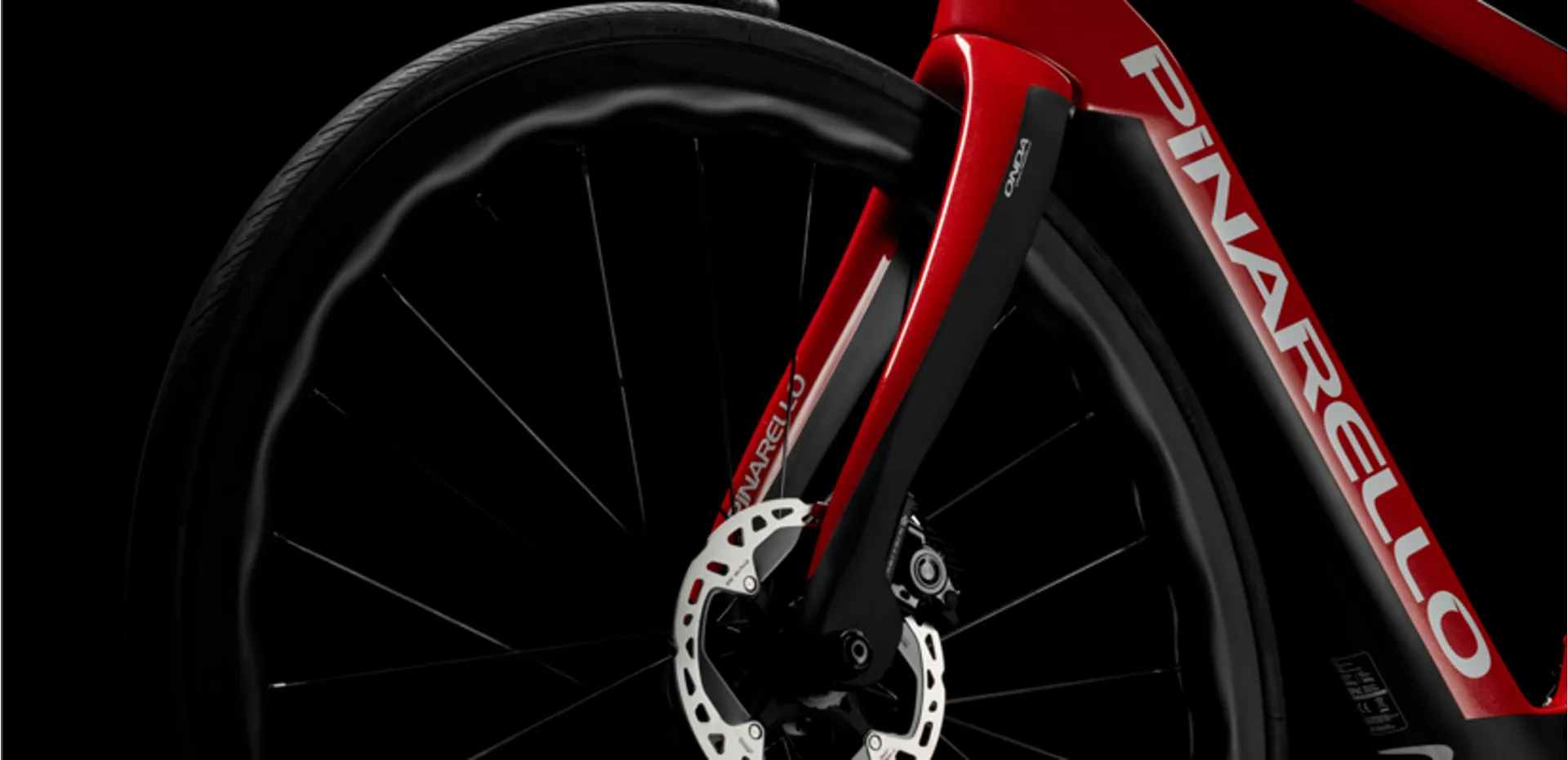

  • Onda Fork
    A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.
  • Asymmetric Frame
    APinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
  • TQ-HPR50 Drive Unit
    The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and mars rovers.
