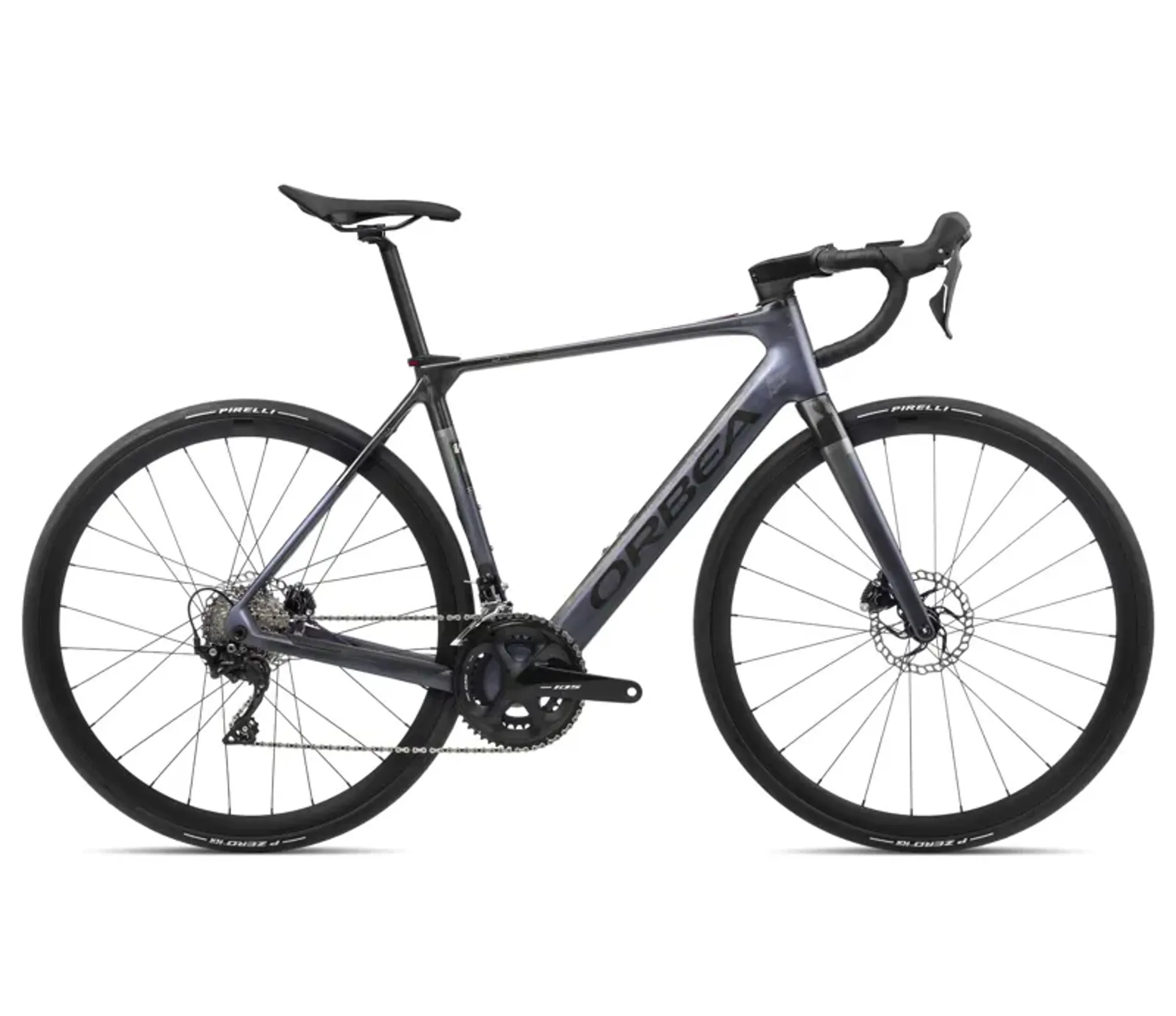

Orbea Gain M30 Electric Road Bike in Tanzanite

Season:2023

Brand:Orbea

Code:N324TTCCDB

THE MANY FACES OF JOY - rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun.
This isn't about riding faster, it isn't even about riding further, this is just about having more fun each and every time you ride.

Features:
  • 350WH DOWNTUBE - Investing the weight savings we made with the new Gain in a bigger battery allows us to increase the range and reduce the overall weight simultaneously. That means you can pretty much forget about the battery level unless you plan on climbing more than 4000m.
  • MORE CAPABLE THAN EVER - Clearance for 35mm tyres means that Gain matches your vision of e-road, even if that goes further than tarmac and onto some gravel.
  • ICR PLUS - Cables are carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and are optimized for both traditional and electronic shifting systems
Technical Information
  • Frame
    Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
  • Fork
    Gain OMR carbon fork, 700x35 maximun tyre, flat mount disc mount, 12x100mm Thru Axle
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Crankset
    Shimano 105 R7000 34x50t
  • Shifters
    Shimano ST-7020
  • Cassette
    Shimano 105 R7000 11-32t 11-Speed
  • Rear derailleur
    Shimano 105 R7000 GS
  • Front derailleur
    Shimano 105 R7000
  • Chain
    KMC X11
  • Handlebar
    OC Road Performance RP20 Alu SL, Reach 80, Drop 125 OC Road Performance RP30R Riser, Rise 15, Reach 70, Drop 125 £ -15 OC Road Performance RP10 Carbon, Reach 80, Drop 125 £ +115 OC Road Performance RP10R Carbon, Rise 15, Reach 70,Drop 125 £ +115
  • Stem
    OC Road Performance RP10, -8º
  • Brakes
    Shimano R7070 Hydraulic Disc
  • Brakes Configuration
    Left Road £ +0
  • Wheels
    Alloy, Tubeless, 700c, 21c
  • Tyres
    Pirelli P ZERO™ Race TLR 700x30c Pirelli Cinturato™ Gravel H 700x35c TLR £ +0
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Lite
  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm M12x2 P1 Lite
  • Seatpost
    Carbon, 27.2mm, Setback 20 OC Performance XP10-S Carbon, Setback 20 £ +69 OC Performance XP10 Carbon, Setback 0 £ +69
  • Saddle
    Fizik Aliante R5 Prologo Scratch-M5 Pas T2.0 size 140mm £ +35 Fizik Antares R5 Versus EVO Regular £ +55 Selle Italia SLR Boost SuperFlow L Carbon Rail Ø7x9 mm £ +110
  • Front light
    Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
  • Handlebar Tape
    Orbea Anti-Slippery/Shock Proof
  • Motor
    Mahle motor hub X20, ALC
  • Battery
    Mahle iX350 36V 353Wh
  • RANGE EXTENDER
    N/A Mahle Range Extender e185Wh (Extra External) £ +449
  • Display
    Mahle Pulsar One monochrome ANT+ LEV
  • CHARGER
    Mahle Active Charger up to 4A
  • Remote
    Mahle ONE Head Unit (BT/ANT+)
