The Orbea Urrun hardtail eMTB offers 120mm front travel matched with the Shimano EP motor and 630Wh battery.
The Orbea Urrun hardtail eMTB offers 120mm front travel matched with the Shimano EP motor and 630Wh battery.
Orbea

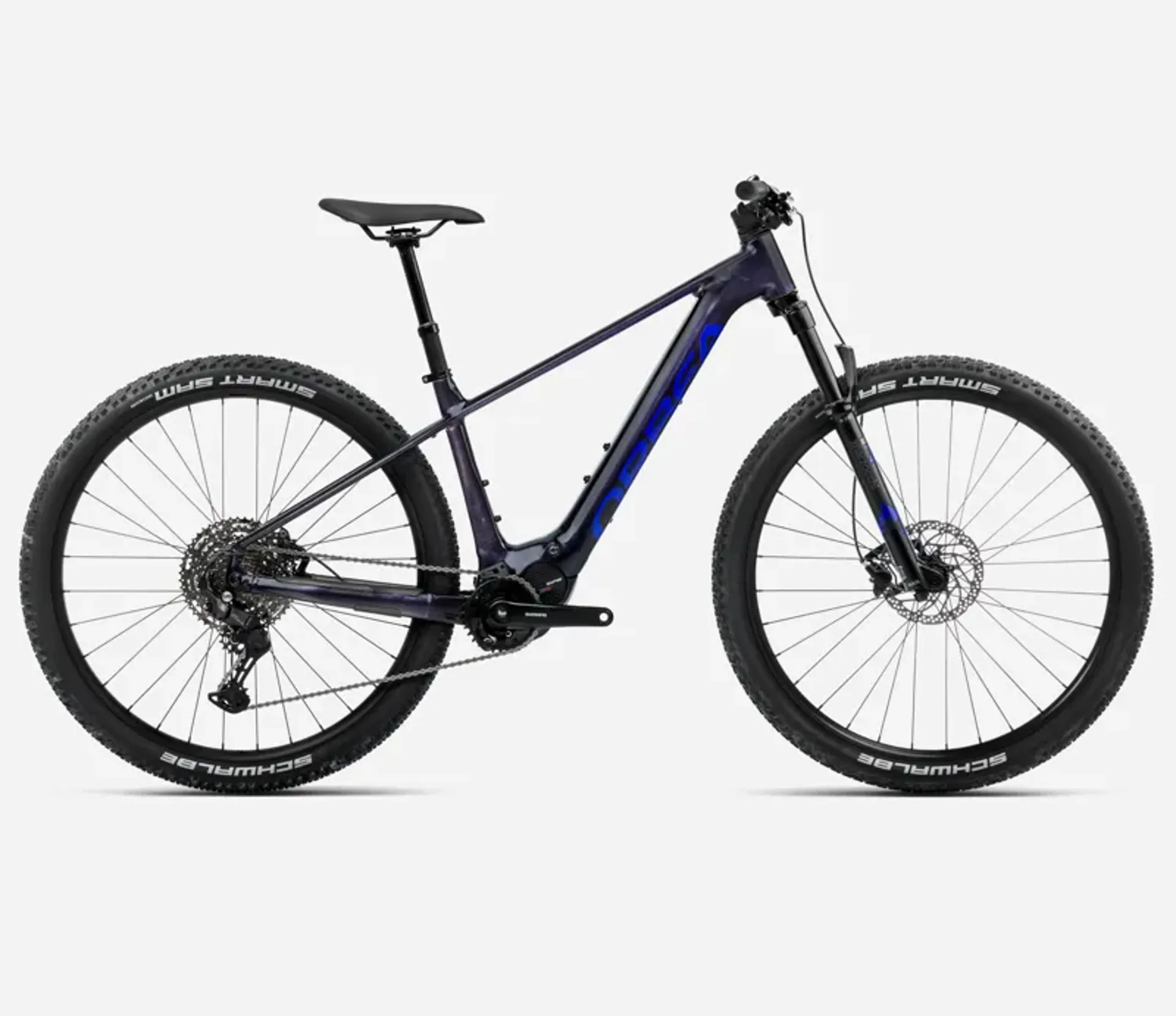

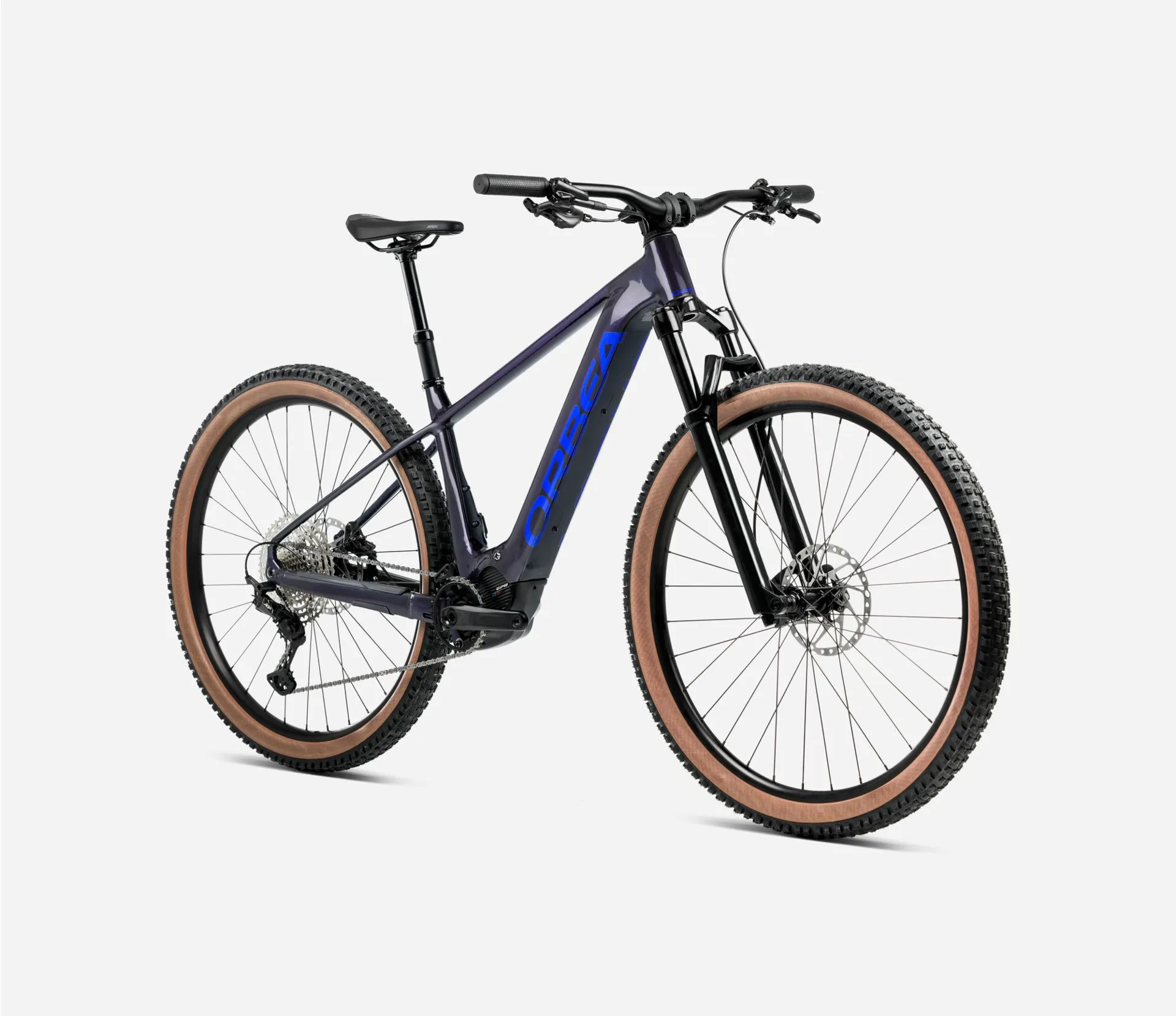

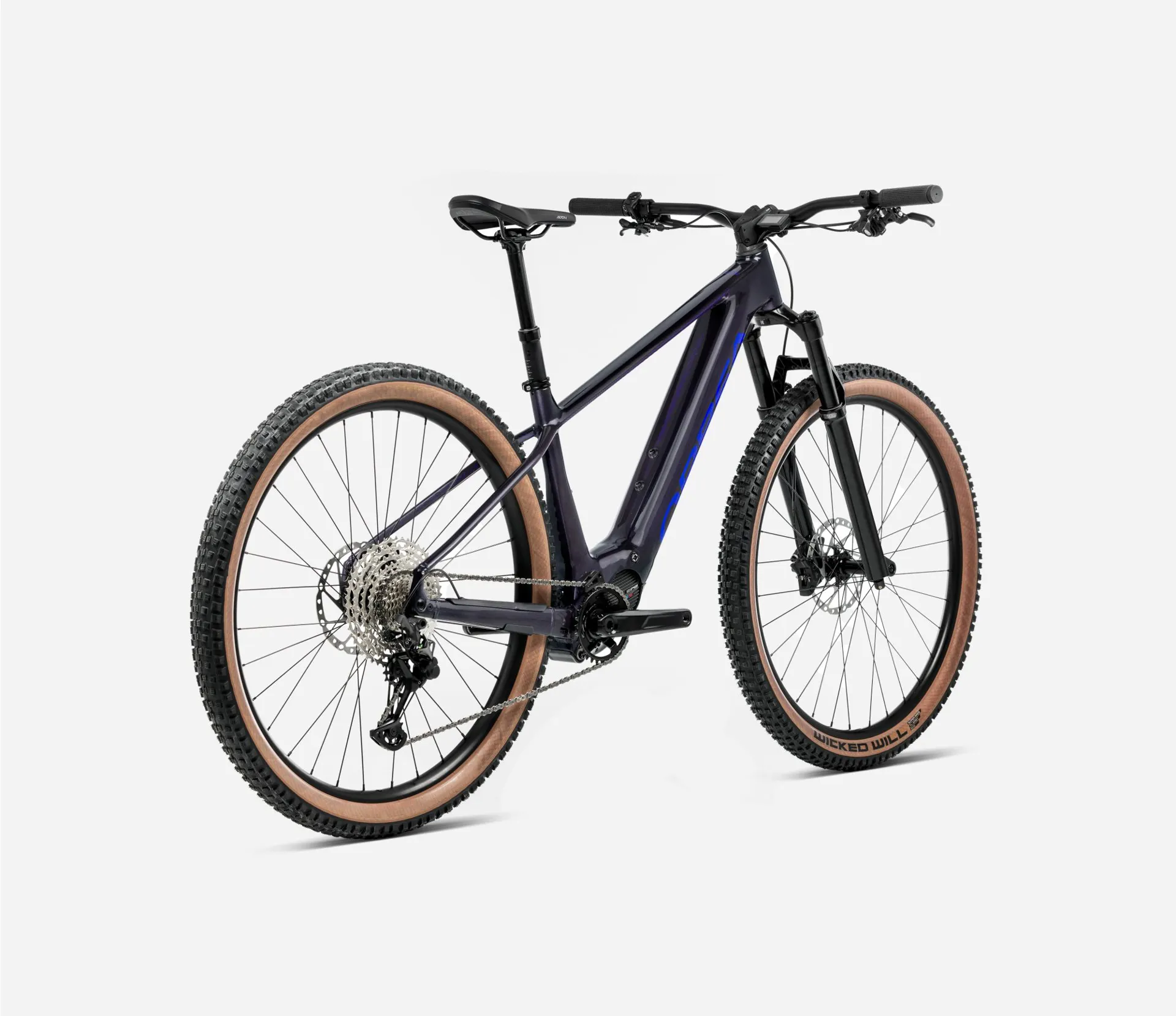

2025 Orbea Urrun 20 - Electric Hardtail Mountain Bike - Tanzanite / Blue

£3,699.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Orbea Urrun 20 - Electric Hardtail Mountain Bike - Tanzanite / Blue

Season:2025

Brand:Orbea

Code:S324TTCCXZ

Expand your horizons

Urrun means “far” in the Basque language. Without a doubt, Urrun is an ebike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come.

Features:

  • Rs Gen 2 Mc -Urrun uses the same Shimano EP8 RS Gen 2 MC system developed for the new RISE. This careful balance of simplicity, power and weight gives the most natural, elastic assistance and best in class battery range for the most epic adventures.
  • 630wh means maximum range -We developed our own 630Wh battery using the latest cell technology. The result is more energy per gram than any other battery currently on the market. Packing more energy into a smaller space, with less weight, is key for lightweight e-bikes.
  • 120mm fork -Urrun is designed around a 120mm fork. The geometry is carefully considered to maximise control and give a bike which is fun and easy to control for every rider.
  • High polished alloy -Each weld on the main frame is polished smooth, matching the aesthetics of a monocoque frame.
  • Custom mounting kit -Custom mounting kit, which is included with every Urrun, makes it easy to mount accessories, or it can be totally removed to give the cleanest look for mountain bike adventures.
Technical Information
  • Frame
  • Sizes
    Small, Medium, Large, XL
  • Colours
    Tanzanite / Blue (Gloss)
    Magnetic Bronze (Matt) / Silver (Gloss)
  • Frame
    Orbea High Polished Alloy
  • Forks and Shocks
  • Fork
    Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
  • Rear Shock
    N/A
  • eSystem
  • Motor
    Shimano EP600 RS Gen2 MC
  • Controller
  • Display
    Shimano EN500
  • Battery Type
    Orbea Internal 630Wh
  • Battery Integration
    Orbea Internal 630Wh
  • Conectivity
    N/A
  • Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Drivetrain and Brakes
  • Brake System
    Shimano MT201 Hydraulic Disc
  • Rear Derailleur
    Shimano Cues U6000 GS Shadow
  • Front Derailleur
    N/A
  • Shifters
    Shimano Cues SL-U6000
  • Bottom Bracket
  • Chainring
    Alloy EP8/6 32t
  • Cassette
    Shimano CS-LG400 11-50t 11-Speed
  • Chain
    Shimano LG500
  • Cockpit
  • Handlebar
    OC Mountain Control MC31, Rise20, Width 800
  • Stem
    OC Mountain Control MC20, 0º
  • Grips
  • Headset
    Alloy 1-1/2", Black Oxidated Bearing
  • Wheels
    Alloy, Tubeless, 29", 29c, 32H
  • Front Tyre
    Schwalbe Smart Sam Performance, 29x2.35, Addix, Black
  • Rear Tyre
    Schwalbe Smart Sam Performance, 29x2.35, Addix, Black
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    OC Mountain Control MC22, 31.6mm, Dropper
  • Saddle
    Fortune QF-3091
  • Pedals
    VP-537 Black
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    Seatpost Lever - Shimano SL-MT500
    Chainguide - Orbea eBike chainguide
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
S150 - 175
M160 - 185
L170-195
XL180-205


Frame Geometry


SMLXL
ASeat Tube Length (mm)400420450500
BSeat Tube Angle74.5°74.5°74.5°74.5°
CTop Tube Length (mm)575596624649
DHead Tube Length (mm)100105115135
EHead Tube Angle66°66°66°66°
FFork Rake (mm)44444444
GTrail (mm)
HWheel Base (mm)1149117112001228
IChain Stay Length (mm)445445445445
JBottom Bracket Drop (mm)63636363
KStack (mm)625630639657
LReach (mm)410430455475
MStand Over Height (mm)775780791814
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size29"29"29"29"
Professional Opinion
  • RS Gen 2 MC
    Shimano EP6 RS Gen 2 MC System

  • Battery
    Developed by Orbea 630Wh Battery using latest cell technology.

  • Suspension
    120 mm Fork with carefully considered geometry to maximise control and give a fun and easy to ride bike for every rider!
