The Trail Shredder's eMTB.
The Trail Shredder's eMTB.
Orbea

2025 Orbea Rise SL M20 630Wh - Electric Full Suspension Mountain Bike - Tanzanite Carbon View / Carbon Raw

£6,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

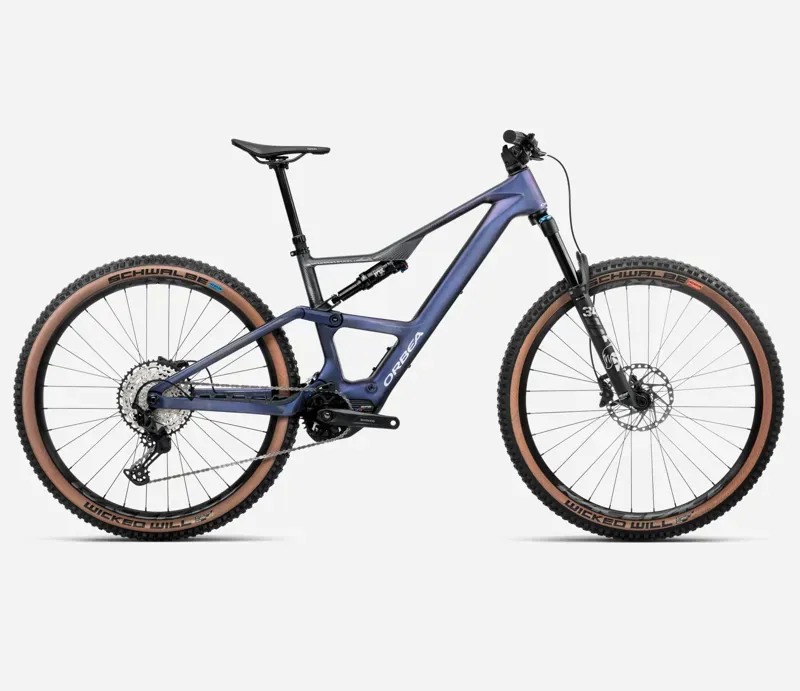

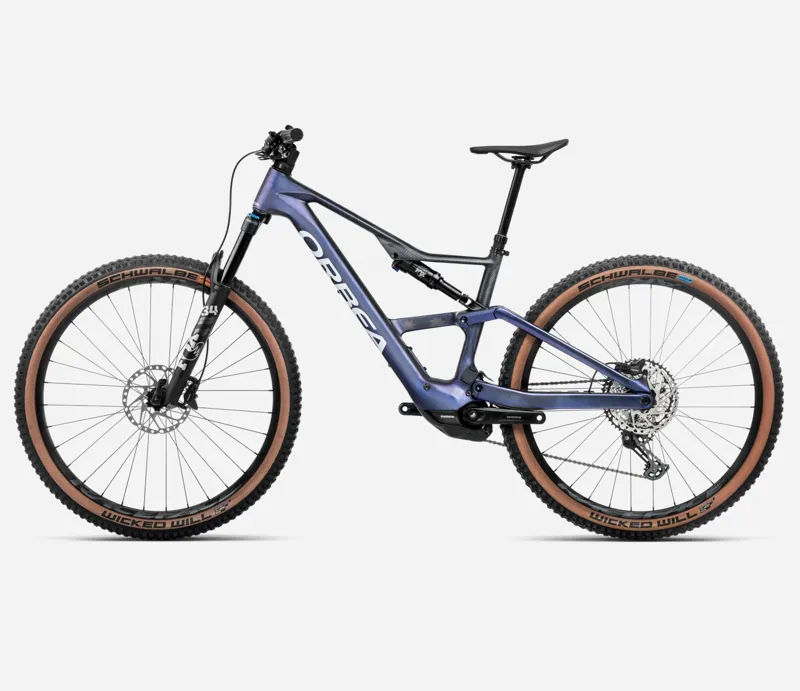

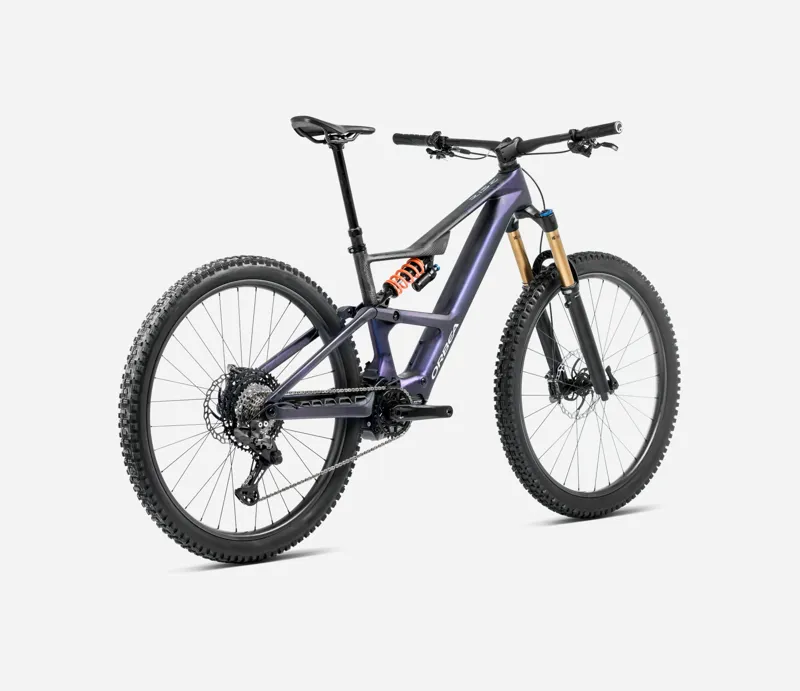

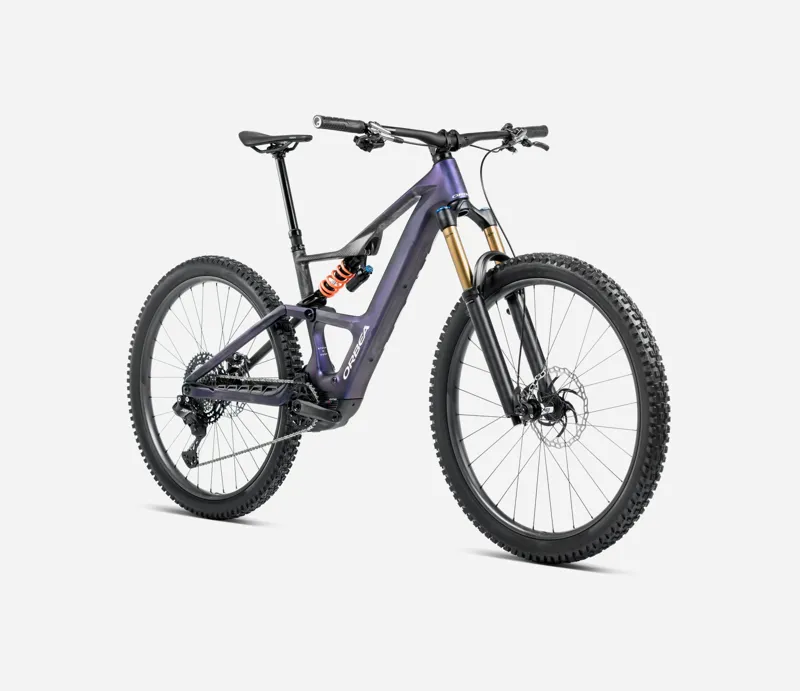

2025 Orbea Rise SL M20 630Wh - Electric Full Suspension Mountain Bike - Tanzanite Carbon View / Carbon Raw

Season:2025

Brand:Orbea

Code:S393TTCCSZ

Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram. The Trail Shredder's eMTB. Rise LT offers 160mm / 150mm of plush travel with a progressive trail geometry.

Better handling, more power and increased stamina. Orbea's updated Rider Synergy means more control than ever before, giving an unbeatable trail experience no matter where you ride.

Features:

  • Attitude Adjust - Quick flip system lets you change the geometry in just a few seconds. You can steepen the geometry for the climbs and slacken it for maximum control on the descents.
  • Tuned rigidity // high performance handling - For the best handling, bikes need the correct rigidity, in the correct places. Rise's new asymetric frame design is key to tuning the frame rigidity. The result is predictable performance when you are pushing the limits.
  • The new rider synergy - Rider Synergy, (RS) is the heart of Rise. The most natural, elastic assistance and best in class battery range for the most epic adventures. Now Rise takes that even further with the option to increase torque to 85Nm.
  • Steep'N' Deep - Drop the saddle right out of the way to give more space to move your body and even better control. With Rise you can fit up to a 230mm dropper. Long-travel droppers are the only way!
  • Further and faster - The natural RS Gen2 assistance works with you to involve you in the ride, providing assistance where it is needed and conserving battery life elsewhere.
Technical Information
  • Frame
  • Sizes
    Small, Medium, Large, XL
  • Colours
    Cosmic Carbon View / Golden Sand (Gloss)
    Tanzanite Carbon View / Carbon Raw (Matt)
    Desert Rose / Carbon Raw (Matt)
  • Frame
    Orbea Rise LT OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
  • Forks and Shocks
  • Fork
    Fox 34 Float Performance 140 Grip 3-Pos QR15x110
  • Rear Shock
    Fox Float Performance 2-Pos Evol LV custom tune 210x50mm
  • eSystem
  • Motor
    Shimano EP600 RS Gen2 MC
  • Controller
    EN600-L
  • Display
    N/A
  • Battery Type
    Orbea Internal 630Wh
  • Conectivity
    N/A
  • Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Drivetrain and Brakes
  • Brake System
    Shimano M6100 Hydraulic Disc, Shimano RT64 Rotors 180mm front / 180mm rear
  • Rear Derailleur
    Shimano SLX M7100 SGS Shadow Plus
  • Front Derailleur
    N/A
  • Shifters
    Shimano SLX M7100 I-Spec EV
  • Bottom Bracket
  • Chainring
    e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
  • Cassette
    Shimano CS-M7100 10-51t 12-Speed
  • Chain
    Shimano M6100
  • Cockpit
  • Handlebar
    OC Mountain Control MC31, Rise20, Width 800
  • Stem
    OC Mountain Control MC20, 0º
  • Grips
    OC Lock On
  • Headset
    Alloy 1-1/2", Black Oxidated Bearing
  • Wheels
    Race Face AR 30c Tubeless Ready
  • Front Tyre
    Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
  • Rear Tyre
    Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    OC Mountain Control MC22, 31.6mm, Dropper
  • Saddle
    Fizik Terra Ridon X5 145mm
  • Pedals
    N/A
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    Seatpost Lever - Shimano SL-MT500 I-Spec EV
    Chainguide - Orbea eBike chainguide
    Crank - Shimano Steps EM600
    Computer Mount - OC Computer Mount CM-05, Garmin/Sigma

  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
S150 - 170
M160 - 180
L170-190
XL180-200


Frame Geometry


S - HighS -LowM - HighM - LowL - HighL - LowXL - HighXL - Low
ASeat Tube Length (mm)405405415415430430460460
BSeat Tube Angle77.5°77°77.5°77°77.5°77°77.5°77°
CTop Tube Length (mm)569570596596622623649650
DHead Tube Length (mm)9595100100110110120120
EHead Tube Angle64.5°64°64.5°64°64.5°64°64.5°64°
FFork Rake (mm)4444444444444444
GTrail (mm)
HWheel Base (mm)12011203122812301258125912871288
IChain Stay Length (mm)440442440442440442440442
JBottom Bracket Drop (mm)2634263426342634
KStack (mm)614619619623628633637642
LReach (mm)435430460455485480510505
MStand Over Height (mm)
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size
Professional Opinion
  • Natural RS Gen2 Assistance works with you in the ride, providing assistance where it is needed and conserving battery life elsewhere.
  • Steep 'n' Deep - drop the saddle right out of the way to give more space to move your body and even better control. You can fit up to a 230mm Dropper!
    Seatpost Insertion min - S - 295, M - 305, L - 320, XL - 350.
