Orbea Denna - the best adventures never end; there is always something exciting just around the corner or over the next hill.
Orbea Denna - the best adventures never end; there is always something exciting just around the corner or over the next hill.
Orbea

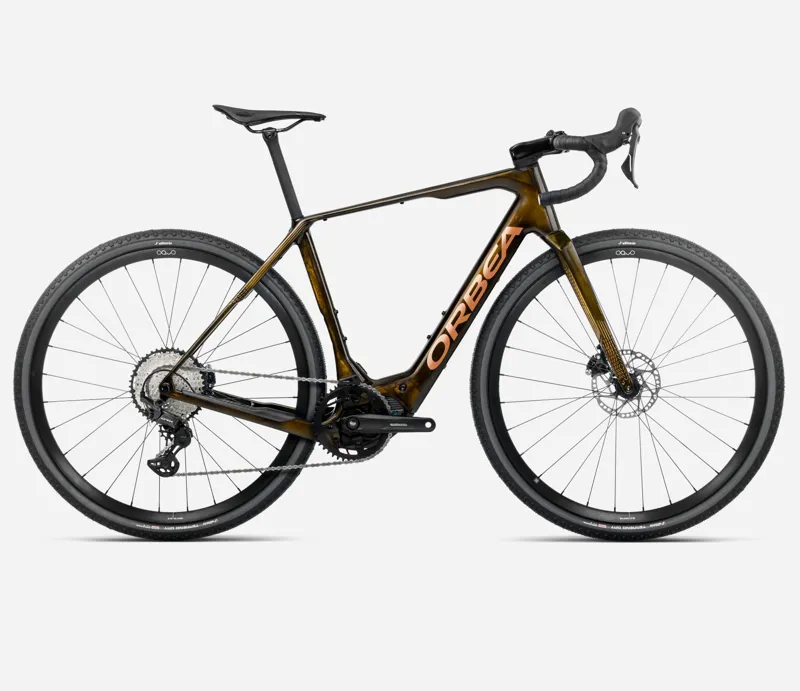

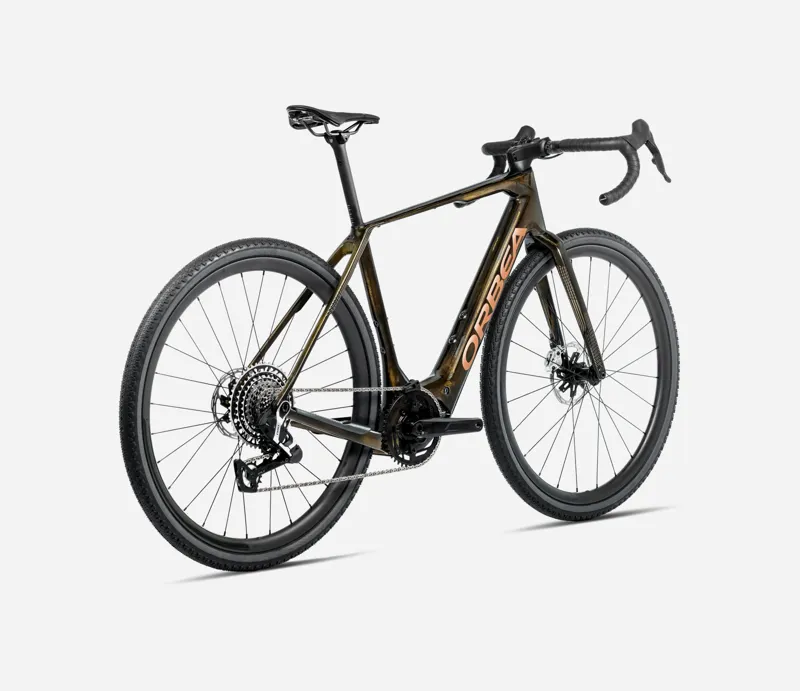

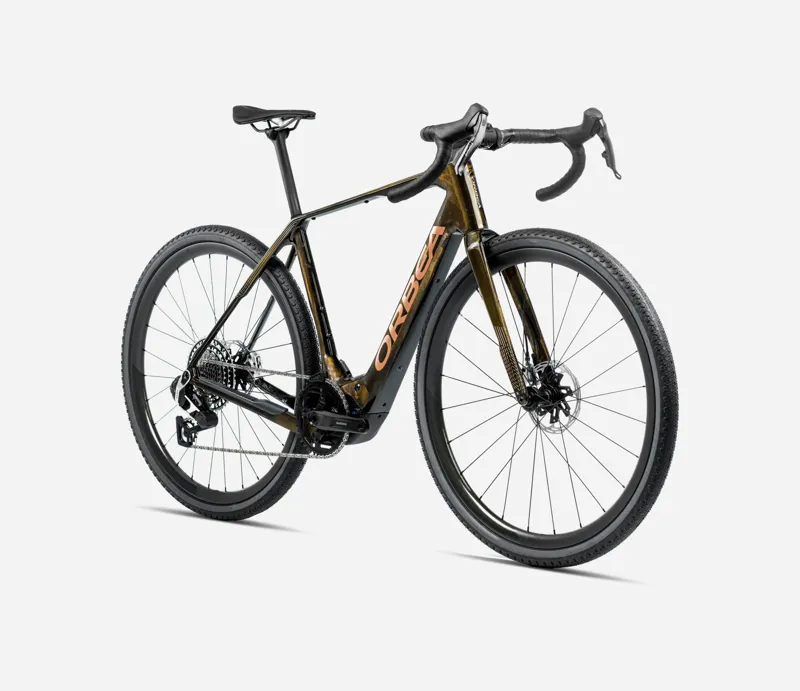

2025 Orbea Denna M30 - Electric Gravel Bike - Caramel Carbon View / Golden Sand

£5,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Orbea Denna M30 - Electric Gravel Bike - Caramel Carbon View / Golden Sand

Season:2025

Brand:Orbea

Code:S318TTCCRZ

Joyful adventure

the best adventures never end; there is always something exciting just around the corner or over the next hill.

Rc tune: full torque and balanced power

rider synergy (rs gen2) is central to denna's go-anywhere capabilities. Weight, power and simplicity plus a best-in-class battery range means you can rewrite your idea of what is possible.

50c tire clearance

denna has clearance for up to 50c tires, so you can even fit many mountain bike tires for maximum grip and comfort.

420 wh battery

our 420 wh battery offers more power in a lighter, smaller package. Thanks to the energy savings from our rs gen2 rc firmware, the average rider will get up to 3500m of climbing from this battery.

Frame absorption points

specifically shaping the frame at key points allows controlled vertical flex to absorb bumps and chatter coming from rougher paths. The tube shapes here resist lateral flex, meaning we don't compromise denna's pedalling efficiency or handling.

Technical Information
  • Frame
  • Sizes
    XS, S, M, L, XL, XXL
  • Colours
    Nickel Matt / Carbon Raw Gloss
    Escape Green Gloss / Foggy Matt
  • Frame
    Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

  • Forks and Shocks
  • Fork
    Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
  • Rear Shock
    N/A

  • eSystem
  • Motor
    Shimano EP801
  • Controller
    EN600-L
  • Display
    N/A
  • Battery Type
    Orbea Internal 420Wh
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A

  • Drivetrain and Brakes
  • Brake System
    Shimano RX400 Hydraulic disc
  • Rear Derailleur
    Shimano GRX RX822 GS
  • Front Derailleur
    N/A
  • Shifters
    Shimano GRX RX610
  • Bottom Bracket
  • Crankset
    Shimano Steps EM600
  • Cassette
    Shimano CS-M7100 10-45t 12-Speed
  • Chain
    Shimano M6100
  • Cockpit
  • Handlebar
    OC Gravel GR31, Reach 70, Drop 110
  • Stem
    OC Road Performance RP22, -5º
  • Grips
    Orbea Anti-Slippery/Shock Proof
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Wheels
  • Wheelset
    Oquo Road Control RC25PRO
  • Front Tyre
    Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
  • Rear Tyre
    Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    OC Performance XP10 Carbon, 27.2mm, Setback 0
  • Saddle
    Selle San Marco Shortfit 2.0 Start Up Off Road
  • Pedals
    Not supplied: Shop pedals here

  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    Orbea Thru Axle 12x100mm M12xP1 Hollow
    Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Size Guide

Frame SizeRider height (cm)
XS155 - 166
S167 - 172
M173-179
L180-185
XL186-191
XXL192 - 207

Frame Geometry

XSSMLXLXXL
ASeat Tube Length (mm)405438471504537570
BSeat Tube Angle74.5º74º73.5º73.5º73º73.2º
CTop Tube Length (mm)531542558570587599
DHead Tube Length (mm)110131152178199220
EHead Tube Angle70º70.5º71º71º71.5º72º
FFork Rake (mm)555555555555
GTrail (mm)737067676360
HWheel Base (mm)103010331040105410611068
IChain Stay Length (mm)425425425425425425
JBottom Bracket Drop (mm)787878767676
KStack (mm)526548570592614636
LReach (mm)390390395400405410
MStand Over Height (mm)738765792819846873
NHandlebar Width (mm)
OStem Length (mm)
PCrank Length (mm)
QWheel Size700700700700700700

Frame Geometry

47495153555760
Length seat post
Diameter seatpost27.227.227.227.227.227.227.2
Angle stem-5º-5º-5º-5º-5º-5º-5º
Stroke seatpost
Rear suspension travel
Professional Opinion
  • Handlebar Tape
    Orbea Anti-Slippery/Shock Proof
  • Hydration
    Shimano Steps E-BIke System
  • Drivetrain
    Shimano GRX Drivetrain
