Big-hitting all-mountain bike with Bosch power, CUBE design flair and ride-everything ability.
Big-hitting all-mountain bike with Bosch power, CUBE design flair and ride-everything ability.
Cube

2025 Cube Stereo Hybrid One77 HPC Race 800 - Electric Full Suspension Mountain Bike - Slab Grey / Prism

£3,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

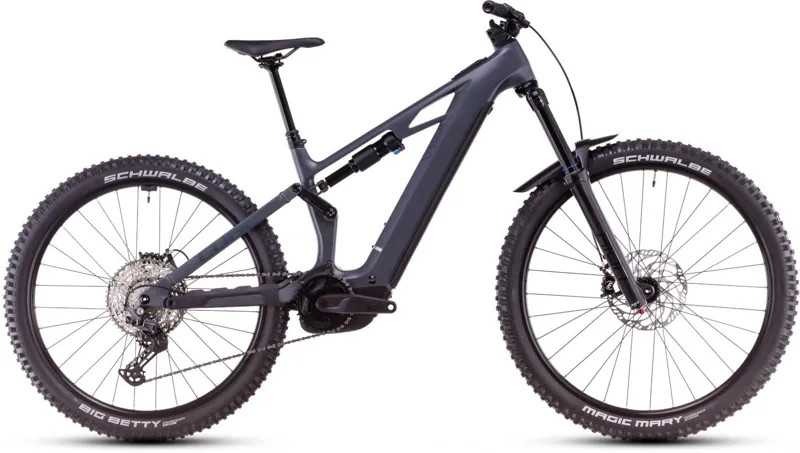

2025 Cube Stereo Hybrid One77 HPC Race 800 - Electric Full Suspension Mountain Bike - Slab Grey / Prism

Season:2025

Brand:Cube

Code:803100

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
Technical Information
  • Frame
  • Sizes
    Small, Medium, Large, XL
  • Colours
    Slab Grey / Prism
    Liquid Orange / Orange
    Dazzle / Black
  • Frame
    C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
  • Forks and Shocks
  • Fork
    SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm
  • Rear Shock
    SR Suntour Edge EVO 2CR 230x65mm
  • eSystem
  • Motor
    Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    Bosch PowerTube 800
  • Conectivity
    N/A
  • Charger
    Bosch
  • Drivetrain and Brakes
  • Brake System
    Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
  • Rear Derailleur
    Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
  • Front Derailleur
    N/A
  • Shifters
    Shimano Deore SL-M6100, Rapidfire-Plus
  • Bottom Bracket
  • Chainring
  • Cassette
    Shimano Deore CS-M6100, 10-51T
  • Chain
    KMC e12
  • Cockpit
  • Handlebar
    Cube Rise Trail Bar 35
  • Stem
    Cube Performance Stem E-MTB 35, FPI-Link
  • Grips
    Acid Disrupt, Soft Compound
  • Headset
    Acros AZF-675, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
  • Rims
    Cube EX30, 32H, Disc, Tubeless Ready
  • Front Hub
    Cube Engineered By Newmen, 15mm, Boost, 6-Bolt
  • Rear Hub
    Cube Engineered By Newmen, 12mm, Boost, 6-Bolt
  • Front Tyre
    Schwalbe Magic Mary, Performance, 2.4
  • Rear Tyre
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
  • Saddle
    Acid Venec Lite
  • Pedals
    N/A
  • Extras
  • Kickstand
    N/A
  • Lighting
    N/A
  • Lock
    N/A
  • Carrier
    N/A
  • Mudguards
    N/A
  • Other
    Seatpost Clamp - Cube Semi-Integrated

  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry


S - SlackS -ModerateM - SlackM - ModerateL - SlackL - ModerateXL - SlackXL - Moderate
ASeat Tube Length (mm)370370405405420420480480
BSeat Tube Angle76.7°76.5°76.7°76.5°76.7°76.5°76.7°76.5°
CTop Tube Length (mm)572573597598625626659661
DHead Tube Length (mm)103103103103115115130130
EHead Tube Angle63.8°64.4°63.8°64.4°63.8°64.4°63.8°64.4°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)12131206123812311269126113051297
IChain Stay Length (mm)443443443443443443443443
JBottom Bracket Drop (mm)1313131313131313
KStack (mm)635637635637645648659661
LReach (mm)427425452450477475506505
MStand Over Height (mm)
NHandlebar Width (mm)780780780780780780780780
OStem Length (mm)5050505050505050
PCrank Length (mm)165165165165165165165165
QWheel Size
Professional Opinion
  • Bosch 800 battery
  • Mullet wheel set up

  • Suspension
    170mm travel
