The CUBE touring hybrid to take on the world, or the city – fully equipped for any journey..
The CUBE touring hybrid to take on the world, or the city – fully equipped for any journey..
Cube

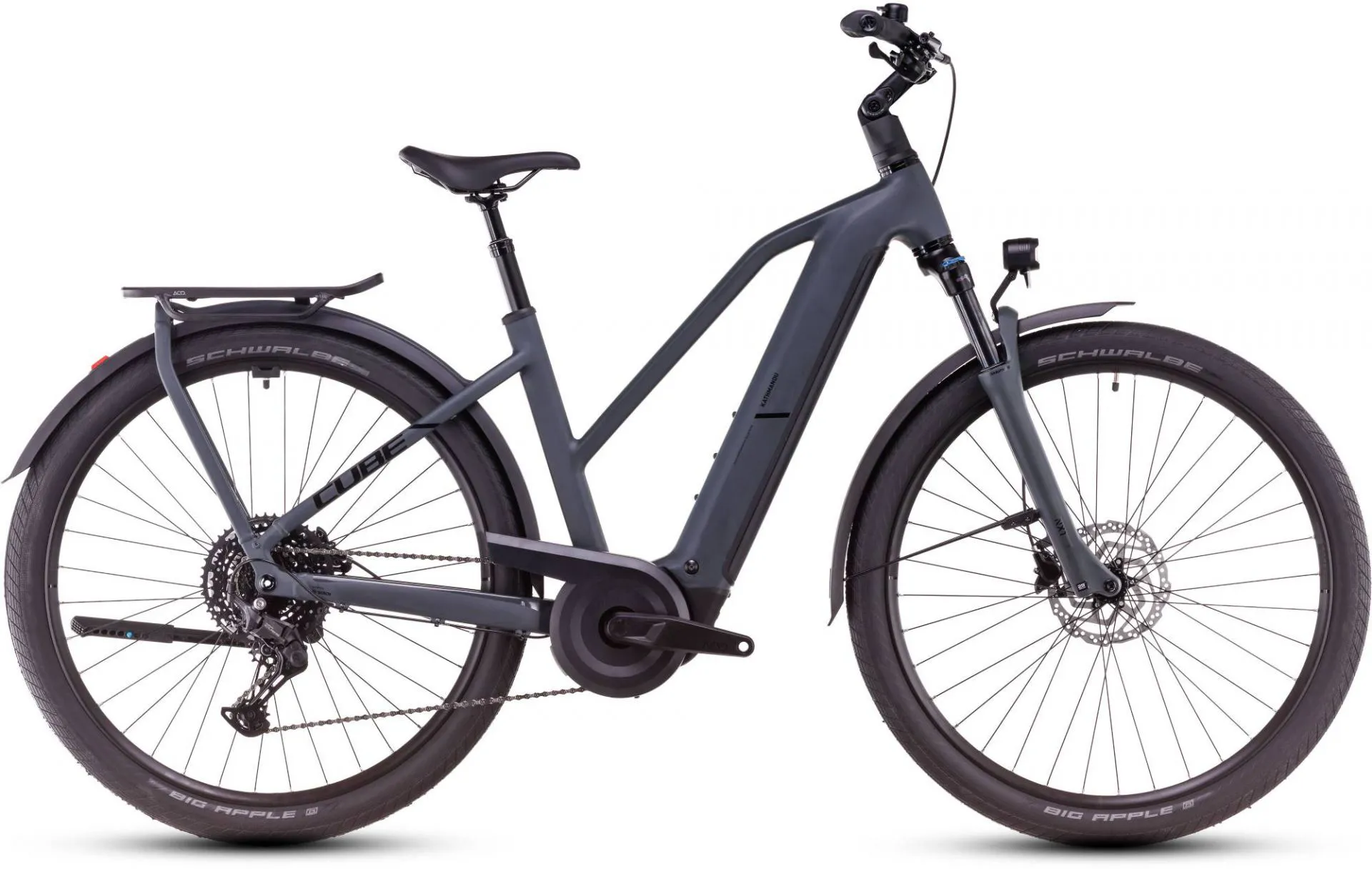

2025 Cube Kathmandu Hybrid One 800 Trapeze - Electric Hybrid Bike - Shadow Grey / Black

£2,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Cube Kathmandu Hybrid One 800 Trapeze - Electric Hybrid Bike - Shadow Grey / Black

Season:2025

Brand:Cube

Code:812101

Adventure is what you make it, and the Kathmandu Hybrid ONE 800 from CUBE is ready whenever you are. With its 800 Wh PowerTube battery and powerful Bosch CX drive, you've up to 85 Nm of pedalling assistance at your disposal. Combined with the easy shifting and wide range of Shimano's Cues 1x10 gears, it's more than enough to take on any route with ease. The Suntour air suspension fork, suspension seatpost and adjustable stem are all there to make even long days in the saddle enjoyable. Strong, dependable Shimano hydraulic disc brakes give you safe stopping in all weathers. And a full complement of accessories, including lights and mudguards to accompany our Integrated Carrier 3.0, means you're ready for anything.

Frame description
The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Technical Information
  • Frame
  • Sizes
    50, 54, 58, 62
    Easy Entry EE46, EE50, EE54, EE58, EE62
    Trapeze T46, T50, T54, T58
  • Colours
    Shadow Grey / Black
    Polar White / Black
  • Frame
    Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
  • Forks and Shocks
  • Fork
    SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
  • Rear Shock
    N/A
  • eSystem
  • Motor
    Bosch Drive Unit Performance Line CX BDU38 Generation 5 (85Nm), Smart System
  • Controller
    N/A
  • Display
    N/A
  • Battery Type
    Bosch PowerTube 800
  • Battery Integration
    N/A
  • Conectivity
    N/A
  • Charger
    Bosch
  • Drivetrain and Brakes
  • Brake System
    Shimano BR-MT200, Hydr. Disc Brake (180/180)
  • Rear Derailleur
    N/A
  • Front Derailleur
    N/A
  • Shifters
    Shimano Cues SL-U6000, Rapidfire-Plus
  • Bottom Bracket
  • Crankset
    Acid MTB Hybrid Pro
  • Cassette
    Shimano Cues CS-LG300, 11-48T
  • Chain
    KMC eGlide
  • Cockpit
  • Handlebar
    Cube Comfort Trail Bar, 700mm
  • Stem
    Cube Comfort Stem Pro, 31.8mm, Adjustable
  • Grips
    Acid Travel Comfort
  • Headset
    Acros AZF-1035, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
  • Wheels
    Cube EX25, 36H, Disc, Tubeless Ready
  • Hubs
    Front - Cube Engineered By Newmen, 15mm, Boost, Centerlock
    Rear - Shimano FH-MT400-B, 12mm, Boost, Centerlock
  • Front Tyre
    Schwalbe Big Apple, Active, 55-622
  • Rear Tyre
    Schwalbe Big Apple, Active, 55-622
  • Max Tyre Clearance
  • Finishing Kit
  • Seatpost
    Cube Suspension Seatpost HD, 31.6mm
  • Saddle
    Acid Sequence Pro Plus
  • Pedals
    Acid PP MTB
  • Extras
  • Kickstand
    Acid FM Pure Kickstand
  • Lighting
    Front - Acid Front Light PRO-E 60 X-Connect, 12V, DC
    Rear - Acid Mudguard Rear Light PRO-E, 12V, DC
  • Lock
    N/A
  • Carrier
    Acid Integrated Carrier 3.0, Adapter Compatible
  • Mudguards
    Acid 65 Integrated Carrier 3.0
  • Other
    Cube Easy Bell
    Weight - 29.3KG, 27.5KG, 27.4KG
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry


46cm50cm54cm58cm62cm
ASeat Tube Length (mm)420460510560600
BSeat Tube Angle73.5°73.5°73°73°73°
CTop Tube Length (mm)580590600620640
DHead Tube Length (mm)150150150160175
EHead Tube Angle67.5°73.5°73°73°73°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)11691179117111921213
IChain Stay Length (mm)499499499499499
JBottom Bracket Drop (mm)7575757575
KStack (mm)680680685694708
LReach (mm)378388390408424
MStand Over Height (mm)
NHandlebar Width (mm)700700700700700
OStem Length (mm)6590909090
PCrank Length (mm)170170170170170
QWheel Size29"29"29"29"29"
Professional Opinion
  • Intergrated Lights
  • Integrated Rear Rack fitted
  • Suspension Fork
  • Kickstand
  • Max Rider weight 110KG
