Combining the versatility and range of Shimano gears with the ease of use of Bosch power, the Cube Fold Hybrid is the ideal way to get across town.
Combining the versatility and range of Shimano gears with the ease of use of Bosch power, the Cube Fold Hybrid is the ideal way to get across town.
Cube

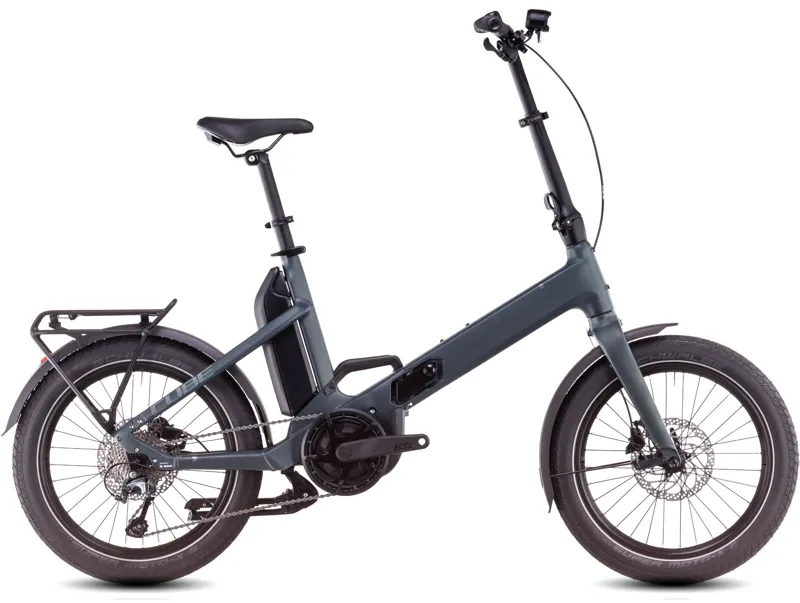

2025 Cube Fold Hybrid 500 - Electric Folding Bike - Sage Brush Green / Prism

£2,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Cube Fold Hybrid 500 - Electric Folding Bike - Sage Brush Green / Prism

Season:2025

Brand:Cube

Code:82020020

Combining the versatility and range of Shimano gears with the ease of use of Bosch power, the Fold Hybrid is the ideal way to get across town. And, with stunning CUBE design and easy-to-use folding technology, it's also simple to carry and store. You'll soon be taking it with you everywhere...

When we set out to design our foldable Bosch e-bike, we wanted it to set new standards for flexibility, mobility and functionality. The fact that it also looks great is no coincidence, because form often follows function. With its clever folding mechanism and integrated carry handle, the Fold Hybrid is easy to store or transport in an efficient, space-saving size and shape. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height.

We included mudguards, a really stable kickstand and a sturdy rear carrier. And an optional front carrier – plus a wide range of bags and baskets that attach quickly and simply via innovative mechanisms – make it simple to carry whatever you need along for the ride. You'll wonder how you ever managed without it.

Technical Information
  • Frame
  • Sizes
    One Size (448mm)
  • Colours
    Sage Brush Green / Prism, Merlot Red / Reflex
  • Frame
    Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar
  • Forks and Shocks
  • Fork
    Aluminium Rigid Fork, 20"
  • Rear Shock
    N/A
  • eSystem
  • Motor
    Bosch Drive Unit - Active PLus 3 (50nm)
  • Controller
    N/A
  • Display
    Bosch Purion
  • Battery Type
    Bosch PowerPack 500
  • Battery Integration
    Internal
  • Conectivity
    N/A
  • Charger
    Bosch 2A
  • Drivetrain and Brakes
  • Brake System
    Shimano BR-MT200, Hydr. Disc Brake (180/180)
  • Rear Derailleur
    Shimano Tiagra RD-4700GS, 10-Speed
  • Front Derailleur
    N/A
  • Shifters
    Shimano Tiagra SL-4700
  • Bottom Bracket
    N/A
  • Crankset
    ACID Trekking Hybrid, 42T with Chainguard
  • Cassette
    Shimano CS-HG500, 11-34T
  • Chain
    KMC X10

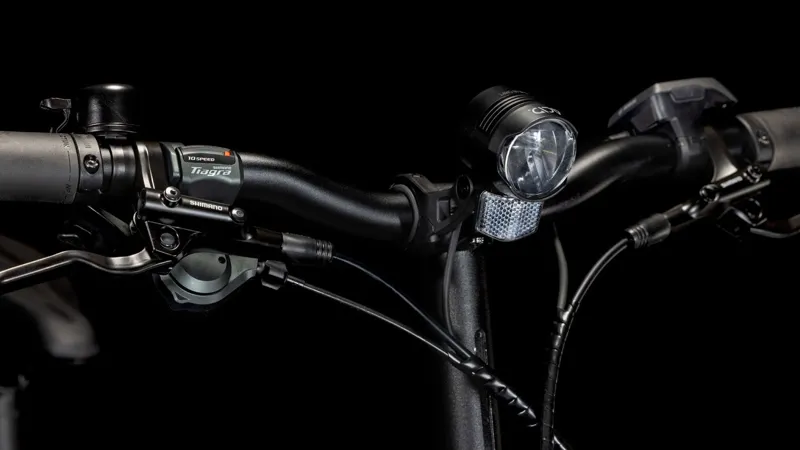

  • Cockpit
  • Handlebar
    CUBE Comfort Trail Bar, 680mm, 25.4mm
  • Stem
    Cube Folding Stem, Adjustable Length, 25,4mm Clamp
  • Grips
    ACID Travel Comfort
  • Headset
    ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  • Wheels
  • Front Hub
    Shimano HB-QC300, QR, Centerlock
  • Rear Hub
    Shimano FH-QC300-HM, QR, Centerlock
  • Rims
    CUBE EX30, 32H, Disc, Tubeless Ready
  • Front Tyre
    Schwalbe Super Moto-X, Double Defense, 62-406
  • Rear Tyre
    Schwalbe Super Moto-X, Double Defense, 62-406
  • Max Tyre Clearance
    60mm
  • Finishing Kit
  • Seatpost
    Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
  • Saddle
    Natural Fit Sequence
  • Pedals
    Not supplied: Shop pedals here
  • Extras
  • Kickstand
    Two Leg Kickstand
  • Lighting
    ACID PRO-E 60, 12V, DC / ACID Mudguard Rear Light PRO-E, 12V, DC
  • Lock
    N/A
  • Carrier
    ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
  • Mudguards
    ACID 75, BB-Mount
  • Other
    N/A
  • Please Note:
    Every effort has been made to ensure accuracy throughout this website. However, manufacturers reserves the right to change bike specifications, features, prices and colours without prior notice. If you would like to check the specification of a bike before purchasing, please call one of our stores.
Sizing Information

Frame Geometry


One Size
ASeat Tube Length (mm)448
BSeat Tube Angle74°
CTop Tube Length (mm)620
DHead Tube Length (mm)155
EHead Tube Angle71°
FFork Rake (mm)
GTrail (mm)
HWheel Base (mm)1138
IChain Stay Length (mm)443
JBottom Bracket Drop (mm)-20
KStack (mm)441
LReach (mm)494
MStand Over Height (mm)445
NHandlebar Width (mm)640
OStem Length (mm)
PCrank Length (mm)165
QWheel Size20"

Frame Ergonomics

One Size
Length seat post536
Diameter seatpost34.9
Top tube horizontal (min. saddle and handlebar height)610
Top tube horizontal (max. saddle and handlebar height)610

Additional Measurements

One Size
Height folded900
Width folded600
Length folded750
Max. bike length1680
Max. bike width660
Professional Opinion

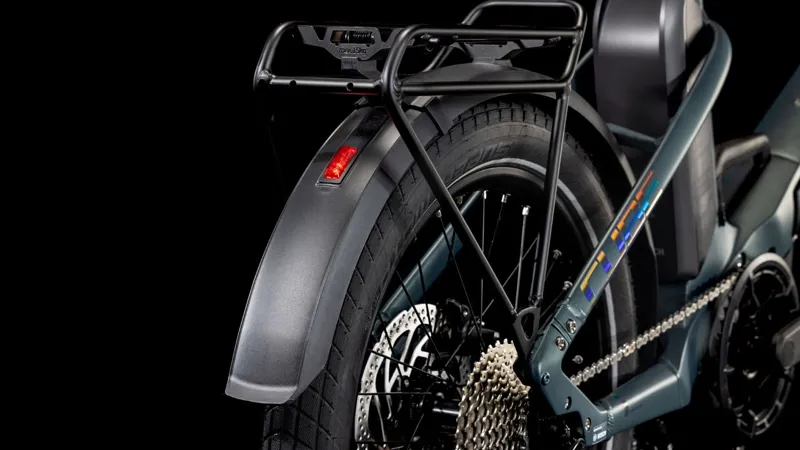

  • Semi-Integrated Carrier
    A luggage carrier needn't be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you'll barely notice it... until it's time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it's just what you need to make day-to-day life a little easier.
  • Carrying Handlebar
    The point of a folding bike is to make your life easier. That's why we equipped our Fold Hybrid with a comfortable, convenient carry handle located in a position that makes it easy to lift and carry the bike. Whether you're taking it on public transport, carrying it up a flight of stairs or into the office, it's the kind of detail that helps make the difference.
  • Front Carrier Ready
    Our Compact Hybrid is already a versatile beast, packing an urban traffic-beating punch way beyond its diminutive dimensions. But if you need a little extra carrying capacity, the purpose-designed Front Carrier makes it even more adaptable. Neat, stable and secure, it provides an easy way to carry an extra bag to work, to the shops, or just because.
  • High Performance Aluminium
    High performance aluminium is all about extracting the best possible performance from this strong, durable material. We select precisely the right grade of alloy for our needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It's your guarantee of a light, strong, durable and safe bike.
  • Comfort Ride Geometry
    As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn't want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.
  • Pack Size: 90cm x 60cm x 75cm
    A folding bike is folding for a reason. That's why, for our Fold Hybrid, we focussed on creating a bike that wasn't just easy to fold, but also easy to carry and store. A pack size of 90cm x 60cm x 75cm means the Fold Hybrid is compact enough to put in the boot of your car, in the cupboard under the stairs, take on the train... the possibilities are endless

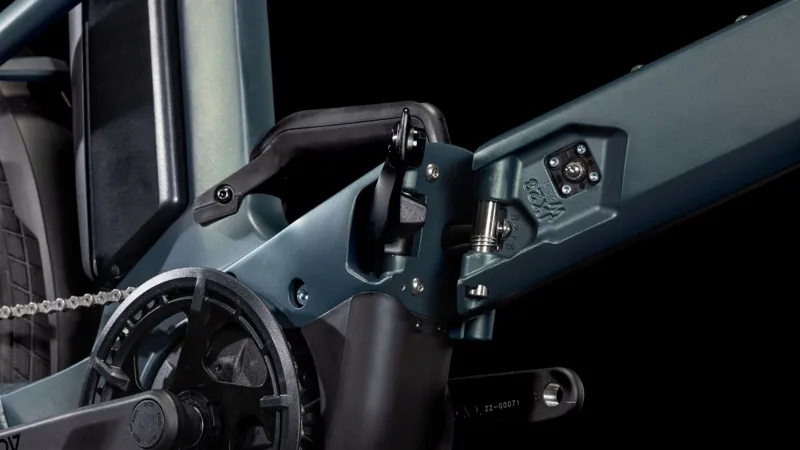

  • Integrated Folding Technology
    You want your folding bike to be simple to use, so we designed our Integrated Folding Technology to do just that. With the push of a button the Fold Hybrid can be transformed into an easy-to-carry, easy-to-store package with a conveniently placed carrying handle. Simple, flexible mobility, redefined.
  • One Size Concept
    The flexible One Size Concept makes a bike so versatile it can be used by anyone, of any height. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m), so everyone can have a comfortable, relaxing ride. It's the ideal bike to share: for the whole family, partners, friends, neighbours or colleagues. Or keep it for yourself as the perfect companion for wherever life takes you.
  • Gravity Casting
    Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.
