Sizes
S 27.5 (380mm), M 29 (405mm), L 29 (450mm), XL 29 (495mm), XXL 29 (545mm)
Colours
Olive / Green

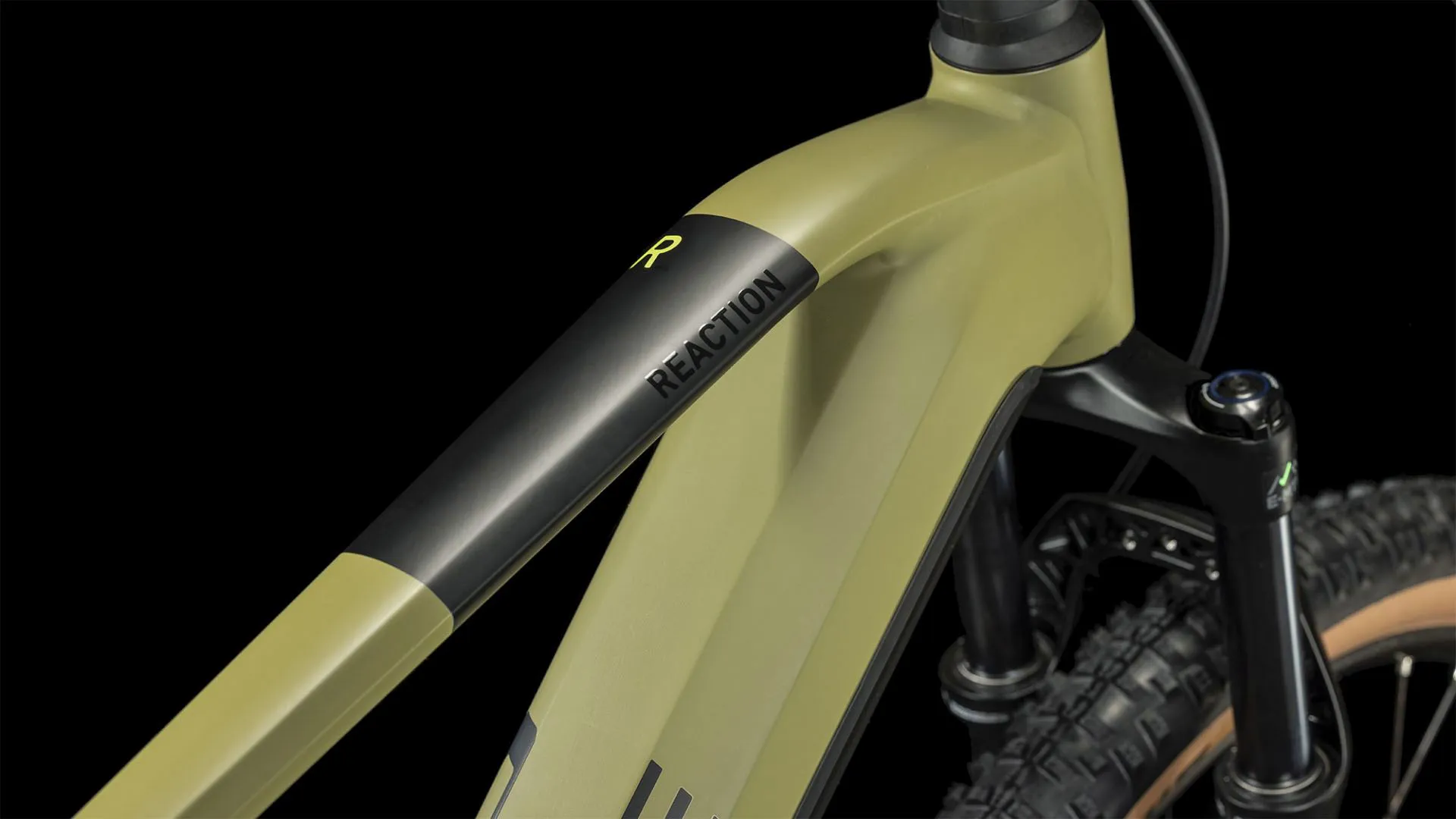

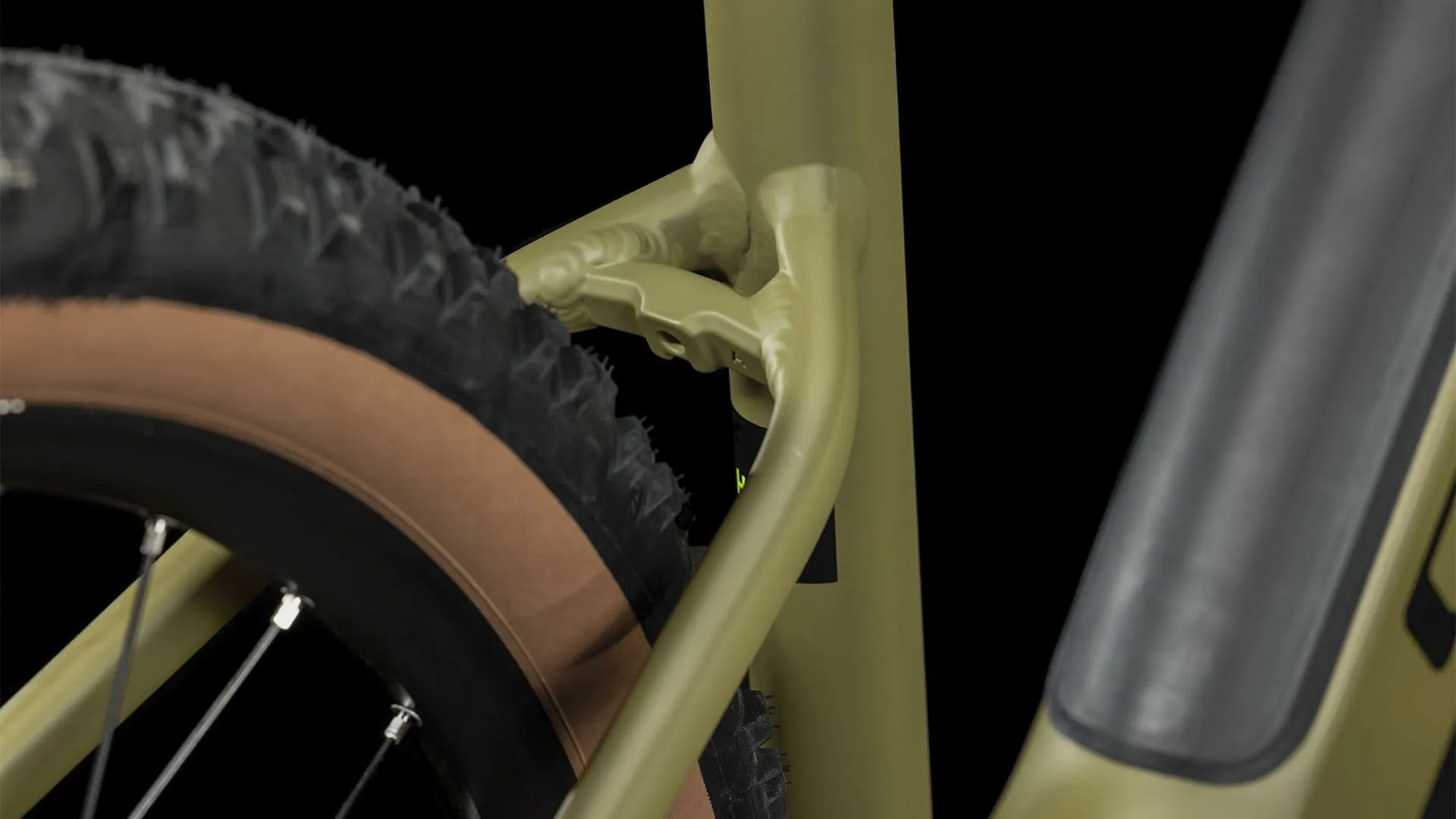

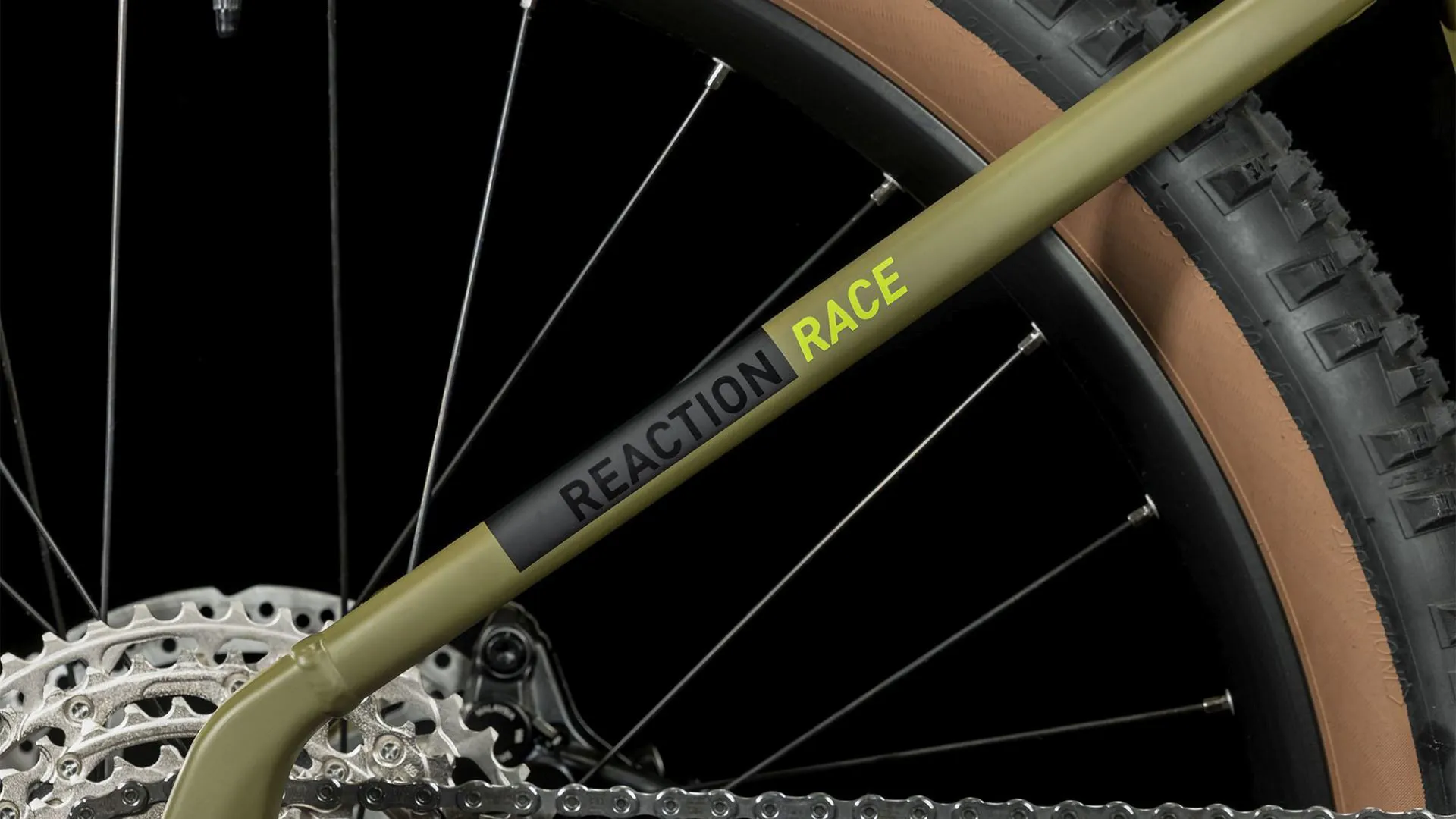

Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points

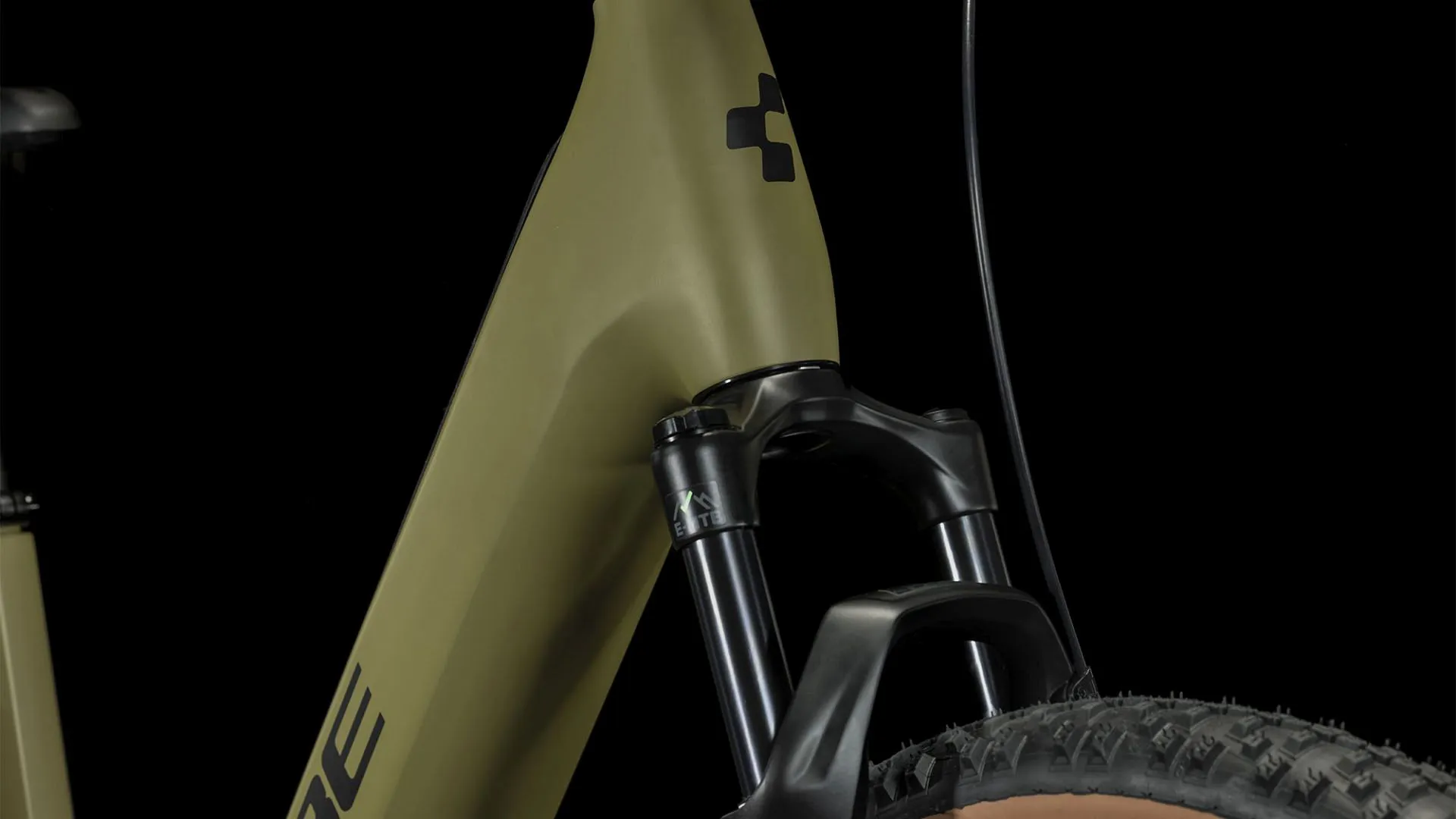

Fork
RockShox Judy Silver TK Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout (EE: 100mm)
Rear Shock
N/A
Motor
Bosch Performance CX Gen 4 (85nm)
Controller
Bosch LED Remote

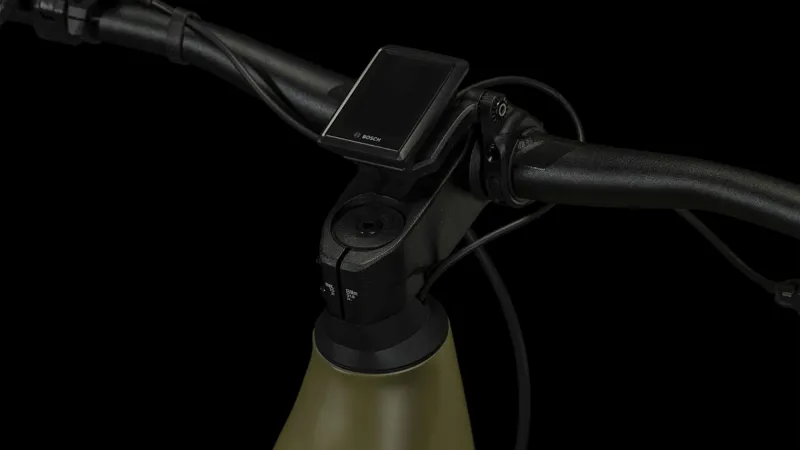

Display
Bosch Kiox 300
Battery Type
Bosch PowerTube 750

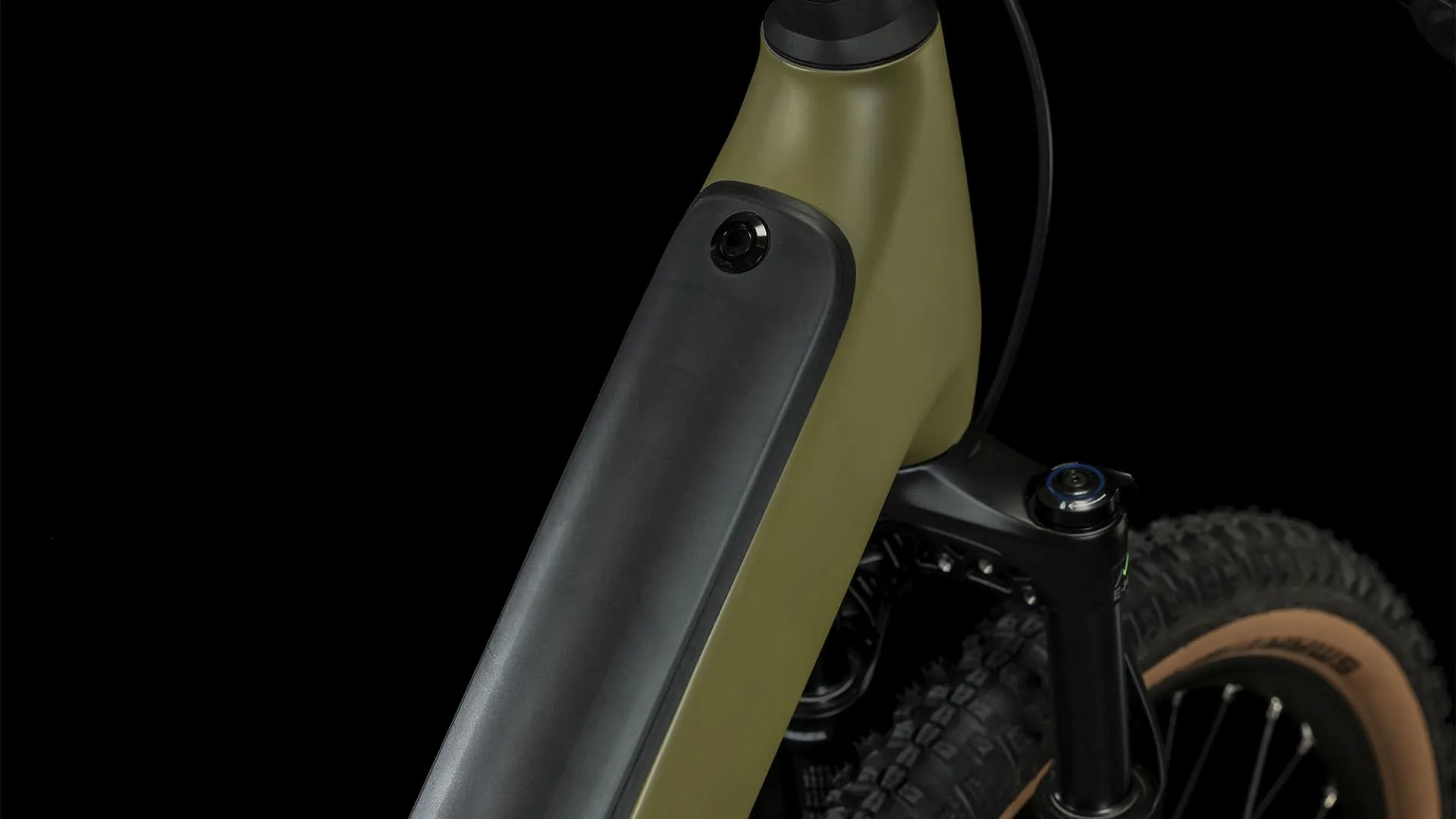

Battery Integration
Internal
Conectivity
N/A
Charger
Bosch 4A
Brake System
Shimano BR-MT420, Hydr. Disc Brake (203/203)
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Front Derailleur
N/A
Shifters
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Bottom Bracket

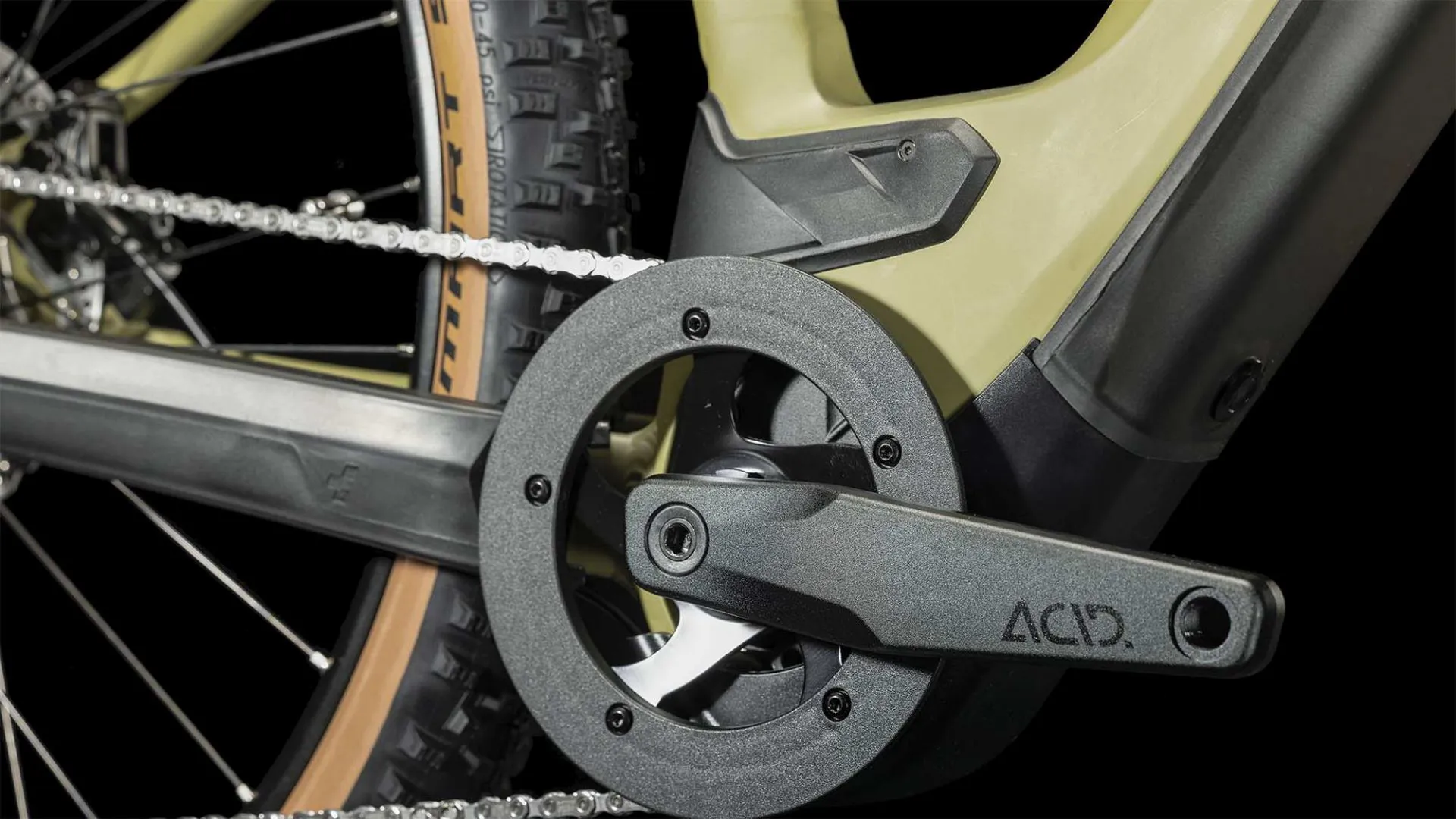

Crankset
ACID E-Crank, 38T, 175mm
Cassette
Shimano Deore CS-M6100, 10-51T
Chain
Shimano CN-M6100
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Stem
CUBE Performance Stem E-MTB, 31.8mm
Grips
ACID React Pro / EE: ACID Hybrid Perform
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Front Tyre
Schwalbe Smart Sam, Active, 2.6
Rear Tyre
Schwalbe Smart Sam, Active, 2.6
Seatpost
CUBE Performance Post, 30.9mm
Saddle
Natural Fit Sequence
Pedals
ACID PP MTB
Kickstand
N/A
Lighting
N/A
Lock
N/A
Carrier
N/A
Mudguards
N/A
