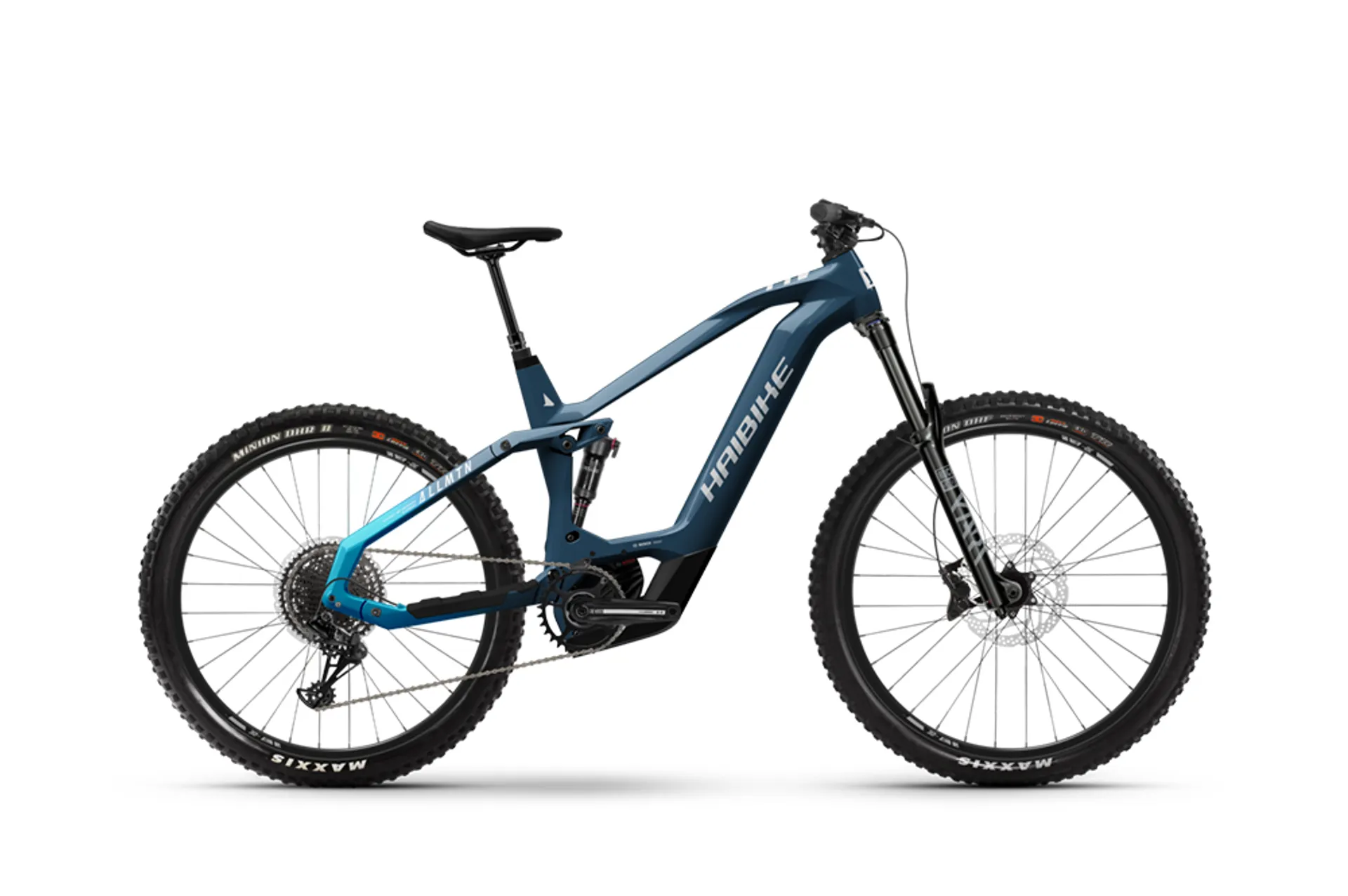

2022 Haibike Allmtn Cf 9 i750 - Electric Bike - Blue / Azure

Season:2022

Brand:Haibike

Code:30141BLU

Are you looking for an eMTB for a wide range of uses? A mountain goat that also has downhill in its DNA? Then you will have a lot of fun on the trails with the 2022 Haibike AllMtn CF 9 with carbon main frame and aluminium rear triangle. Uphill, the brand new Bosch Performance CX Smart System motor supports you with up to 85Nm of torque, while the mixed wheel size concept with 27.5" at the rear ensures perfect traction. Downhill, you enjoy a comfortable rollover with 29" wheel at the front, while the 160mm RockShox Yari air suspension fork absorbs all the bumps. Thanks to the SRAM NX Eagle rear derailleur, you'll always find the perfect gear ratio, and the snappy 4-piston disc brakes from Magura will bring you to a stop quickly in any situation.
Technical Information
    • ENGINE

      Bosch, Performance CX Smart System, 250 Wh, 85 Nm

    • DISPLAY

      Bosch, Kiox 300 + LED Remote

    • BATTERY

      Bosch, PowerTube, 750 Wh

    • FRAME FAMILY

      Haibike, AllMtn Bosch CF Smart System, Carbon/aluminium

    • FORK

      RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

    • DAMPER

      RockShox, Deluxe Select Plus, Air, Trunnion Mount

    • CRANK ARM

      Haibike Components, The Crank ++, Aluminium

    • BRAKE (FRONT)

      Shimano, MT420, 4-piston disc brake

    • BRAKE (REAR)

      Shimano, MT420, 4-piston disc brake

    • TUBE

      Presta valve

    • RIM

      Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium

    • CLAMPING RING

      Internal hexagon, 34.9 mm

    • REAR DERAILLEUR

      Sram, NX Eagle

    • SHIFT LEVER

      Sram, SX Eagle, Trigger switch

    • BOTTOM BRACKET

      integrated in the motor

    • SPROCKET

      Sram, Eagle PG1210, 11 - 50 teeth

    • CHAIN

      Sram, SX Eagle

    • CHAINRING

      Sram, Aluminium, 36 teeth

    • CHAIN GUIDE

      Nylon directmount

    • BRAKE LEVER

      Shimano, MT401, Aluminium

    • BRAKE DISC (FRONT)

      Shimano, RT30-L, 203 mm

    • BRAKE DISC (REAR)

      Shimano, RT EM300L, 203 mm

    • TYRE

      Maxxis, Minion DHF II, 65-622, 29 x 2.5 inch

    • FRONT WHEEL HUB

      Shimano, MT400-B, Centerlock

    • REAR WHEEL HUB

      Shimano, MT400-B, Centerlock

    • SPOKES

      Sapim, Leader

    • HANDLEBAR

      Haibike Components, TheBar ++, 780 mm

    • GRIPS

      Haibike, MTB grips

    • STEM

      Alu, A-head, 31.8 mm

    • HEADSET

      Acros, Cable integration, Aluminium

    • SADDLE

      fi'zi:k, Terra Aidon X5-160

    • SEAT POST

      Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm

    • PEDALS

      Freeridepedal, Aluminium, with Reflector

    • PERMITTED TOTAL WEIGHT

      120.0 kg

    • TYRE (REAR)

      Maxxis, Minion DHR II, 71-584, 27.5 x 2.8 inch

    • RIM (REAR)

      Rodi, Tryp 35, Aluminium, With Eyelets, Double Wall,
